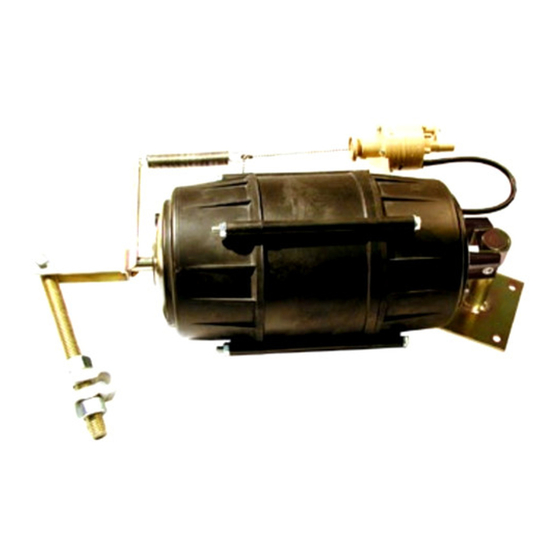

6” pneumatic damper actuator

Advertisement

Mounting

The MCP-1160 MUST be mounted on a rigid
surface due to the force generated at, or near,
maximum air pressure.
1. Align the actuator with the controlled device.
The mounting joint allows the actuator to be
located in a different plane from the controlled
device.
2. Attach the actuator to the rigid surface through
the four 3/8" (4 mm) holes in the mounting
bracket.

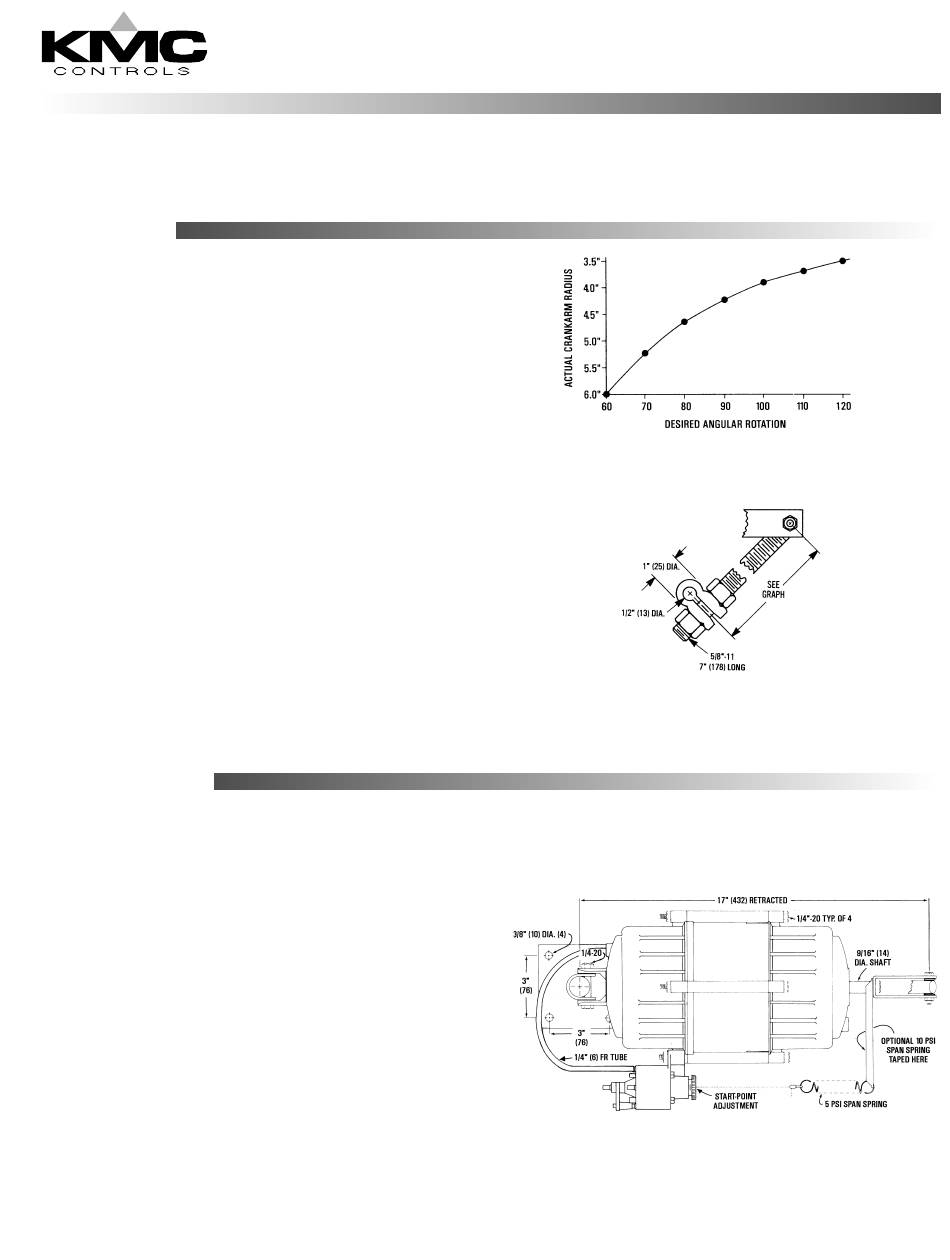

3. Adjust the crankarm assembly from 60° to 120°
rotation as required.
4. DO NOT tighten the universal joint. The
actuator must be free to swivel as it operates.

Connections

MCP-1160 models ordered with positioners are
factory piped.
Use 1/4" (6 mm) O.D. FR polyethlyene tubing.
Use only clean, dry control air. No attempt
should be made to use any other medium.
1 Connect the actuator input to the positioner
output, Port "1".
2. Connect the input signal to the positioner to Port
"2".
3. Connect the main air (20 psi) to the center port.
NOTE: If the application requires operation near
the maximum temperature and maximum
pressure, add a tubing restraint to the actuator
connection.
