KMC Controls BAC-9001CE Installation Manual

CONTENTS
Introduction .............................................. 1
Set Drive Hub (45/60°) Rotation Limit ............ 1
Mount Controller ........................................ 2
Connect Sensors and Equipment .................. 3
Connect (Optional) Pressure Sensor.............. 4
Connect (Opt.) Ethernet Network .................. 4
Connect (Optional) MS/TP Network............... 5
Connect Power .......................................... 5
Power and Communication Status ................. 6
MS/TP Network Isolation Bulbs .................... 6
Watch Dog Jumper ..................................... 7
Configure/Program the Controller ................. 7
Sample (BAC-9001) Wiring .......................... 8
Replacement Parts ..................................... 9
Important Notices ...................................... 9

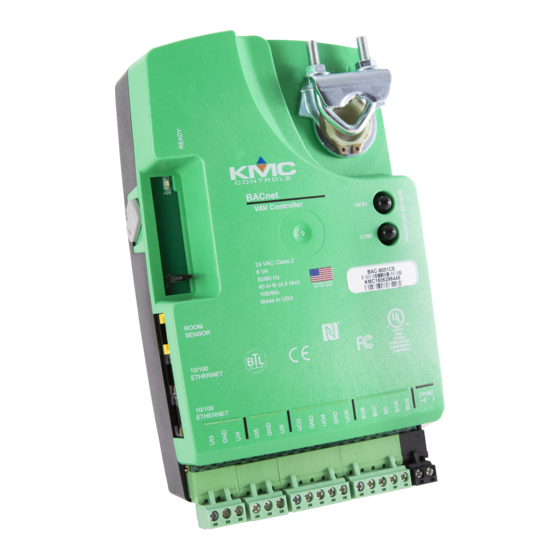

INTRODUCTION

Complete the following steps to install a KMC
Conquest™ BAC-9000 Series VAV Controller-
Actuator. For controller specifications, see the
data sheet at kmccontrols.com. For additional
information, see the KMC Conquest Controller
Application Guide.

SET DRIVE HUB (45/60°) ROTATION LIMIT

NOTE: Complete the steps in this section if
the VAV damper rotation limit is either
60 or 45 degrees.
NOTE: If the VAV damper rotates 90 degrees,
skip this section and go to
Controller on page 2

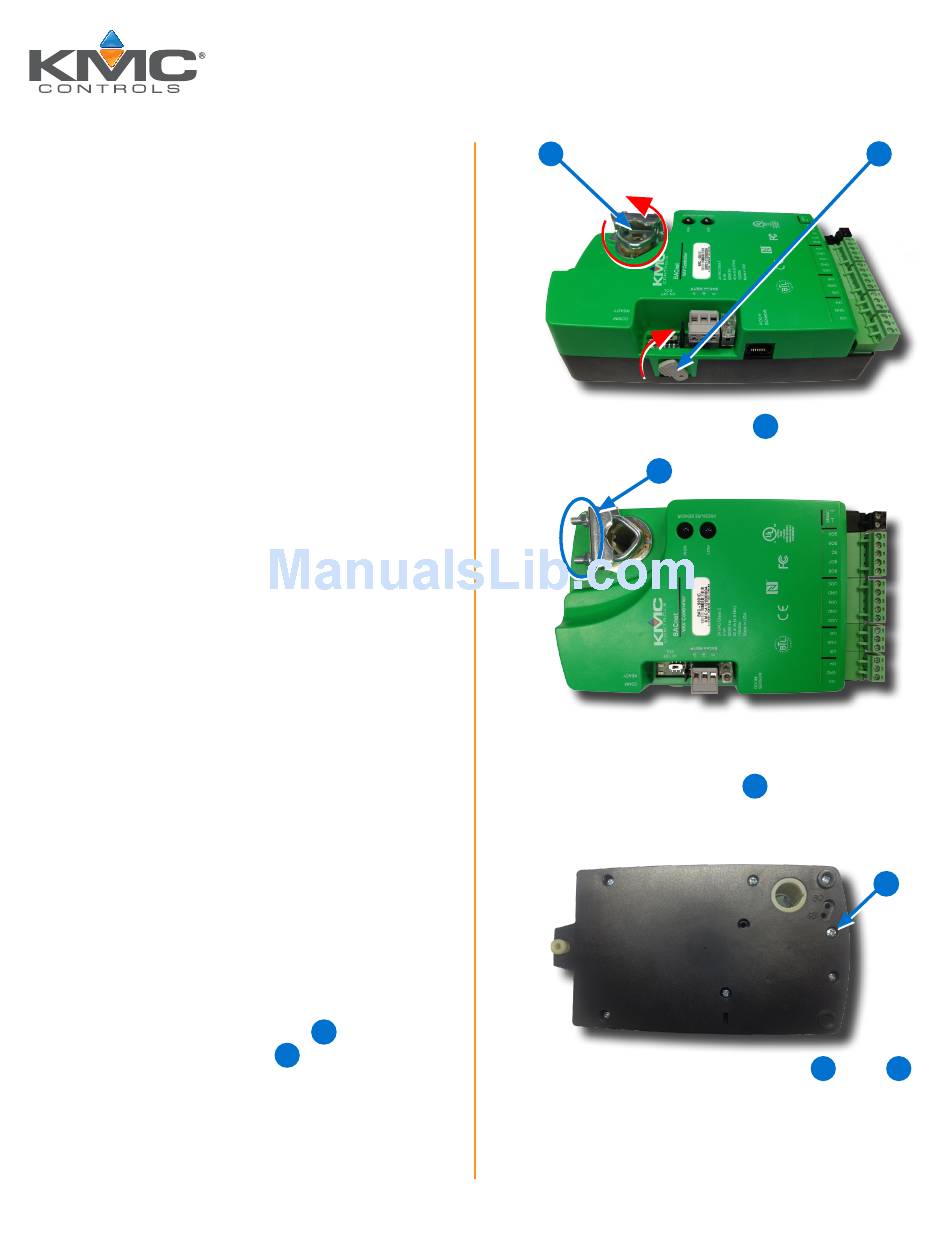

1. Push and hold the gear release
the drive hub and V-clamp
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
BAC-9000 Series VAV Controller
Mount
instead.
and rotate
1
to the left.
2
/
2
NOTE: The V-clamp nuts
2. Turn the controller over.
3. Remove the stop screw
location and clean any debris from the
threads.
4. Insert the stop screw into the 60
stop hole position.
877.444.5622 / Fax: 574.831.5252
Installation Guide
should be on top.
3
3
from the storage
4
5
/ www.kmccontrols.com
1
4
or 45
6
