Input/Output Objects/Connections ......30 Connecting the Return Air Temperature Sensor ..16 Configuring and Operating ........30 Connecting the Mixed Air Temperature Sensor ...16 Important Notices..........31 Connecting the Proportional Actuator ....17 KMC Controls, 19476 Industrial Drive, New Paris, IN 46553 877-444-5622 Fax: 574-831-5252 www.kmccontrols.com...
Example Diagrams Standard Application REVISE Outdoor Air Damper Pressure Assist Application TrueFit Airflow Measurement System Installation Guide 925-019-05C...

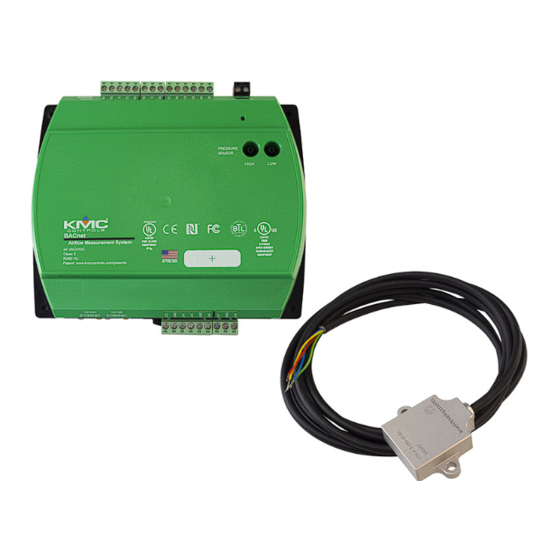

Mounting the System Components Mounting the Controller NOTE: Mount the controller inside a metal enclosure for RF shielding and physical protection. NOTE: To mount the controller with screws on a flat surface, complete the steps in On a Flat Surface Or to mount the controller on a 35 mm DIN rail (such as integrated in an HCO-1103...
4. Lower the controller against the DIN rail. 5. Push in the DIN latch to engage the rail. NOTE: To remove the controller, pull the DIN latch until it clicks once and lift the controller off the DIN rail. Mounting the Inclinometer NOTE: If the outside air damper has vertical-axis damper blades, you will first need to install an HLO-1050 Linkage Kit...
Mounting the Supply Airflow Pickup Tubes There must be enough pressure flow pickup tubes must installed, for the size of the opening, to get an accurate average value for the air-stream. Multiple pickup tubes (at least 2) connected in a parallel pitot array are recommended.
Page 7
3-1/2” (89 mm) 2-3/4” (70 mm) 7/16” (11 mm) 1-1/2” (38 mm) for SSS-101x 1-1/4” (32 mm) for SSS-100x Mounting Holes, 3/16” (5 mm) 3-5/32” (80 mm) for SSS-10x2 2. Cut a 7/8” hole in the duct to accept the pickup tubes. 1/4"...
Mounting Pickup Tubes for Pressure Assist Mounting for OAD Pressure Assist Complete these additional steps only if installing a BAC-5901C-AFMS or BAC-5901CE-AFMS for an OAD pressure assist application. (See the KMC AFMS Selection Guide for details.) Mounting the First Airflow Pickup Tube 1.
Page 9
Mounting for RAD Pressure Assist Complete these steps only if installing a BAC-5901C-AFMS or BAC-5901CE-AFMS for a RAD pressure assist application. (See the KMC AFMS Selection Guide for details.) Mounting the First Airflow Pickup Tube 1. Find a location for the first pickup tube near the return air damper, on the damper’s upstream side.
Mounting the Pressure Transducer(s) NOTE: Complete these steps only if using a BAC-5901C(E)-AFMS controller. NOTE: Avoid locations with severe vibrations or excessive moisture. The enclosure has a standard 1/2-inch conduit opening and may be installed with either a conduit coupler or a cable-gland-type fitting. CAUTION Do not use in explosive or hazardous environments, with combustible or flammable gasses, as a safety or emergency stop device, or in any other application where failure of the product could...
Mounting the OAT, RAT, and MAT Sensors STE-1411/12/13/14 Bendable Copper Sensor Use a bendable copper sensor for easily-accessible mixed air sections and outside air hoods. If the mixed air section is not easily accessible, a flexible cable sensor may be used. If the unit does not have an easily- accessible outside air hood, a rigid steel probe may be used.
Page 12
2. Insert the sensor cable into the mixed air chamber, stringing the cable to cover the air path, and secure as needed. NOTE: The flexible cable can be easily shaped to fit any duct size but observe a minimum bend radius of two inches to prevent damage to wires or sensors.
For instructions on how to mount your particular model of MEP-series proportional actuator: 1. Select the appropriate link from the list, or search for it on the KMC Controls website: •...
Connecting System Components to the Controller Connecting the Airflow Pickup Tubes For a BAC-5901C(E)-AFMS Use appropriately sized polyethylene tubing for the pressure connections. The length of the tubing should not be longer than necessary. Arrange the tubing to minimize stress on the connections and prevent kinking. Connecting the Supply Airflow Pickup Tubes to the Pressure Transducer 1.
NOTE: The other ports of the two pickup tubes are left unconnected and open to air. Connecting the Pressure Transducer(s) to the Controller 1. Connect the signal wire from OUT on the supply air pressure transducer to UI9 on the controller. 2.
NOTE: The two-wire sensor is not polarity sensitive. 3. Plug the conduit with sealant to prevent air infiltration. 4. Swing the door closed until securely latched. 5. If desired for added security, install the two (provided) screws in the door’s integrated screw tabs. 6.
AFMS controller. Using a New Proportional Actuator For instructions on how to wire your particular model of actuator to the controller: 1. Click on the appropriate model from the list, or search for it on the KMC Controls website: • MEP-4552 •...
• Subnet mask—255.255.255.0 • Gateway—192.168.1.1 Connecting an MS/TP Network 1. For a BAC-5901C-AFMS or BAC-9311C-AFMS, connect the BACnet network to the gray BACnet MS/TP terminal block NOTE: Use 18 gauge AWG shielded twisted pair cable with maximum capacitance of 51 picofarads per foot (0.3 meters) for all network wiring (Belden cable #82760 or equivalent).
Page 19
3. If the controller is at either end of a BACnet MS/TP network (only one wire under the terminals), turn the EOL switch to ON. NOTE: The EOL switch is shipped from the factory in the OFF position. TrueFit Airflow Measurement System Installation Guide 925-019-05C...
Connecting Power Connecting Power to the Controller To connect a 24 VAC, Class-2 transformer to the black power terminal block of the controller: ⊥ ⊥ 1. Connect the neutral side of the transformer to the controller’s common terminal ∼ ∼ 2.
Connecting Power to the Proportional Actuator For instructions on how to wire to power and complete setup of your particular model of actuator: 1. Select the appropriate model from the list, or search for it on the KMC Controls website: •...
Controller Power and Communication Status The status LEDs on a BAC-5901-AFMS and BAC-9311-AFMS indicate power connection and network communication. The descriptions below describe their activity during normal operation (at least 5 to 20 seconds after power-up/initialization or restart). NOTE: If both the green READY LED and the amber COMM LED remain OFF, check the power and cable connections to the controller.
Amber ETHERNET LED • The amber Ethernet LED flashes when the controller is communicating with a 100BaseT Ethernet network. • The amber Ethernet LED remains OFF when the (powered) controller is communicating with the network at only 10 Mbps (instead of 100 Mbps). Controller MS/TP Network Isolation Bulbs The two network isolation bulbs serve three functions:...
Input/Output Objects/Connections BAC-5901C(E)-AFMS BAC-9311C(E)-AFMS Inputs Inputs Space Sensor (on Room Sensor port) Space Sensor (on Room Sensor port) Space Setpoint Offset (on port) Space Setpoint Offset (on port) AI3/UI3 Incoming Damper Signal AI3/UI3 Incoming Damper Signal AI4/UI4 Outdoor Air Temp AI4/UI4 Outdoor Air Temp AI5/UI5...
KMC Controls, Inc. makes no representations or warranties with respect to this document. In no event shall KMC Controls, Inc. be liable for any damages, direct, or incidental, arising out of or related to the use of this document.
