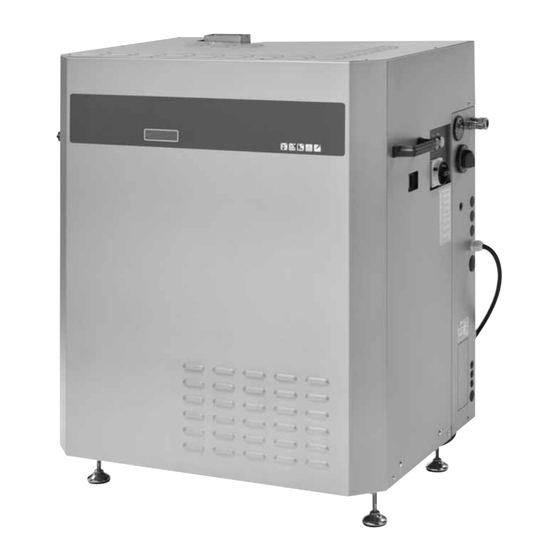

- Page 1 SH SOLAR G, GH, GW Instructions for use 107319184 i (09.2020) EN-DE-FR-NL-ES-IT-RU-HU-CS-RO...
- Page 2 Instruction manual ........................3 - 30 Betriebsanleitung ........................31 - 60 Manuel d’Instructions......................61 - 90 Gebruikershandleiding......................91 - 120 Manual de instrucciones ...................... 121 - 151 Manuale di istruzioni ......................152 - 182 Руководство........................183 - 214 Üzemeltetési útmutató ......................215 - 241 Návod k použití...
-
Page 3: Table Of Contents
SH SOLAR G, GH, GW Index Safety Precautions and Warnings ....................4 Description .............................5 Application ..........................5 Operation elements ........................5 Installation ............................5 Installation conditions ......................5 Condition of distance ......................6 Mounting of feet and levelling of machine ................6 Mounting of handle .........................6 Mounting of spacers .......................7 Water connection ........................7... -
Page 4: Safety Precautions And Warnings
SH SOLAR G, GH, GW Symbols used to mark in- Before using the This symbol is structions high-pressure used to mark sa- washer, be sure fety instructions to also read the that must be ob- enclosed opera- served to prevent... -
Page 5: Description
SH SOLAR G, GH, GW 2 Description Application This high pressure hot water Only use the high pressure washer has been developed hot water washer for purposes for stationary installation and described in this manual. professional use within: The safety precautions must be... -
Page 6: Condition Of Distance
SH SOLAR G, GH, GW Condition of distance In consideration of the cooling system of the machine and the accessibility of service, there must be free wall space on both sides of the machine. To the right 500 mm at a min i mum and... -
Page 7: Mounting Of Spacers
SH SOLAR G, GH, GW Mounting of spacers Mount the enclosed spacers at the back of the machine. Water connection the following specifi cations and that the water does not contain particles such as fl oating sand. Min. water inlet pressure: 1 bar (at the required fl... -
Page 8: High Pressure Connection
SH SOLAR G, GH, GW High pressure connec- The outlet of the machine (1) IMPORTANT: When connec- tion can be connected directly to a ting to a pipeline always use a standard high pressure hose (a) fl exible hose connection from or to a pipeline with fi... -
Page 9: Venting Gh Model
SH SOLAR G, GH, GW 3.10 Venting GH model When the machine is properly and allows water to enter the connected to supply water, heating tank. When the tank electrical installation and a high is full, the solenoid valve will pressure hose (or pipeline) the automatically shut off... -
Page 10: Connecting To Gas Supply
SH SOLAR G, GH, GW 3.11 Connecting to gas All models are equipped with a Make sure that the machine supply gas burner. is connected to the gas sup- ply with a fl exible, approved An authorized gas technician hose - at least 1 m long. This... -
Page 11: Connection Of Funnel
SH SOLAR G, GH, GW 3.13 Connection of funnel Standards and requirements to funnel installations may vary from country to country. Before installing the funnel, you should Max. length: 1.5 m contact the local authorities. The following funnel connec- tions are not legal in all coun- tries and are therefore only intended as a guide. -
Page 12: Operation
SH SOLAR G, GH, GW 4 Operation Connections The Nilfi sk high pressure hose 4.1.1 High pressure hose - with imprinted max. working directly on the machine pressure and temperature should be attached to the outlet connection of the machine (1) by the quick coupling (a). - Page 13 SH SOLAR G, GH, GW 4.1.3 Spray handle - acces- NOTE! sories Clean nipple of any impurities each time the spray lance has been dismounted, see illustra- tion. 1. Pull backward the quick cou- pling trigger (A) of the spray handle.
- Page 14 SH SOLAR G, GH, GW 4.1.5 Application of deter- If you want to apply detergents Refer to your Nilfi sk sales gents (external) or disinfectants these can be representative for your optimal dosed to the water through an solution. external injector. In conjunction with the injector it may be ad- Below you will fi...
-
Page 15: Operation
SH SOLAR G, GH, GW 4.1.6 Application of deter- If your machine is equipped gents (internal) with an optional, internally mounted chemical system – dosing the chemical to the inlet of the high pressure pump, please refer to the separate “Operating instructions, Chemi-... - Page 16 SH SOLAR G, GH, GW 4.2.2 Automatic start/stop Always hold the spray lance The machine is automatically with both hands! started when the trigger (1) of the spray handle is activated and will automatically stop and enter standby mode when the trigger is released.
- Page 17 SH SOLAR G, GH, GW 4.2.4 Double spray lance, The spray lance features 2 pressure regulation nozzles, a high pressure nozzle and a low pressure nozz le. High pressure mode When the pressure reducing valve (1) is completely closed (turned clockwise - B), only the high pressure nozzle is used - high pressure mode.
-
Page 18: Fields Of Application And Working Methods
SH SOLAR G, GH, GW 4.2.6 Automatic "system Your machine features a func- preset by the user (1 sec. - 9 shut-down" tion called "system shut-down". hours). If this function is activated the The functions system shut- machine will automatically shut down and switching off... -
Page 19: Temperature
SH SOLAR G, GH, GW Temperature Hot water signifi cantly increas- Oil and traffi c fi lm should be es the effi ciency of the cleaning exposed to app. 70°C, whereas process – especially grease, grease and fat is easiest to... -
Page 20: Working Methods
SH SOLAR G, GH, GW General rules for addition of Nilfi sk cleaning equipment can Detergents, which are not exactly detergents be used for all detergents and prescribed for use in conjunc- disinfectants, which are suit- tion with high pressure cleaning,... -
Page 21: Typical Cleaning Tasks
SH SOLAR G, GH, GW Typical cleaning tasks 5.7.1 Agriculture Task Accessories Method Stables Chemical foam injectors 1. Soaking - apply foam to all surfaces (bottom to Pig pens, sties Foam lance top) and wait for approx. 30 minutes. Powerspeed lance 2. -
Page 22: Maintenance
SH SOLAR G, GH, GW 5.7.3 Building and equipment Task Accessories Method General surfaces Foam injectors 1. Apply thick foam over the surfaces to be cleaned. Standard lance Apply on dry surfaces. Apply from top to bottom Metallic equip- Curved lances on vertical surfaces. -
Page 23: Oil
SH SOLAR G, GH, GW Maintenance Schedule Every six months After the fi rst 50 Weekly or 500 operating As required operating hours hours Checking pump oil level Changing pump oill Cleaning water fi lter ... -
Page 24: Disposable Waste
SH SOLAR G, GH, GW Disposable waste This high pressure hot water removal of polluting and dange- washer consists of parts which rous materials when replacing can aff ect the environment spare parts or disposing of high when thrown away. Parts that pressure hot water washer. -
Page 25: Trouble Shooting
SH SOLAR G, GH, GW 7 Trouble Shooting You have chosen the best quality and therefore deserve the best service. All models feature an “Error detection system” that will stop the machine in case of a severe error that needs immediate attention. - Page 26 SH SOLAR G, GH, GW Symptom Reason Action Extension hose max. 50 m. NB! Avoid long extension hoses with many couplings. > Air in the system • Vent the system (see sections 3.9-3.10). > Detergent container empty • Refi ll or close dosing valve.
-
Page 27: Error Messages, G Models
SH SOLAR G, GH, GW Error messages, G models If your G model does not heat the water although the yellow “Heating” push button (5) has been acti- vated, the “overheat melting fuse” has blown. This fuse is located within the machine and MUST ONLY be exchanged by an Nilfi... -
Page 28: Error Messages, Gh Models (Gas Heated)
SH SOLAR G, GH, GW "Air Control Failure" > The air pressure gauge on the • Adjust the air pressure gauge booster blower is not activated properly. > The booster blower is not • Make sure that the booster generating suffi cient pressure blower is functioning, and that inlet is not blocked. -
Page 29: Technical Data
SH SOLAR G, GH, GW 8 Technical Data Original Instructions... -
Page 30: Warranty
SH SOLAR G, GH, GW 9 Warranty Your Nilfi sk product is guaran- • that only original accessori- Any illegitimate guarantee teed for 12 months from date es have been applied. repair will be invoiced. (I.e. mal- of purchase (purchase receipt •... -
Page 31: Declaration Of Conformity
SH SOLAR G, GH, GW EU / UE / EL / EC / EE / ES / EÚ / AB Declaration of Conformity Декларация за съответствие Declaração de conformidade Prohlášení o shodě Δήλωση συμμόρφωσης Deklaracja zgodności Konformitätserklärung Megfelelősségi nyilatkozat Declaratie de conformitate Overensstemmelseserklæring... - Page 32 SH SOLAR G, GH, GW Nilfisk déclare sous notre seule responsabilité Noi, Nilfisk Prin prezenta declarăm pe propria que le produit mentionné ci-dessus est răspundere, că produsul mai sus menționat conforme aux directives et normes suivantes. este în conformitate cu următoarele standarde și directive...
- Page 33 SH SOLAR G, GH, GW 2 0 0...
