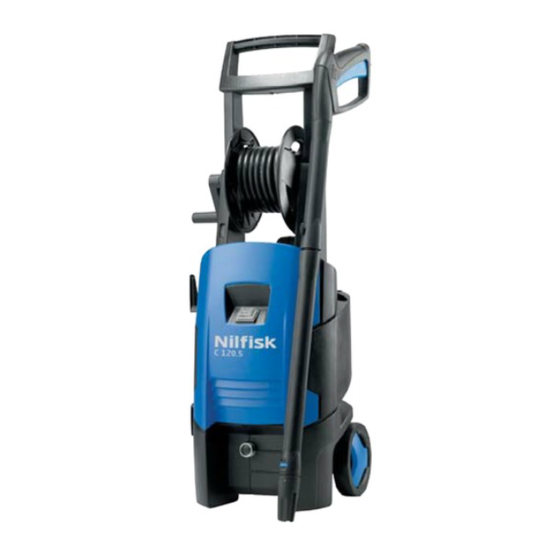

Nilfisk-Advance Nilfisk C 120.3 User Manual

Nilfisk pressure washers
Hide thumbs Also See for Nilfisk C 120.3:

Advertisement

Table of Contents

Nilfi sk C 120.3
Nilfi sk C 125.3
Nilfi sk C 120.5 X-TRA
User Manual
128330335

Advertisement

Table of Contents
loading

Related Manuals for Nilfisk-Advance Nilfisk C 120.3

Summary of Contents for Nilfisk-Advance Nilfisk C 120.3

  • Page 1 Nilfi sk C 120.3 Nilfi sk C 125.3 Nilfi sk C 120.5 X-TRA User Manual 128330335...

  • Page 2: Table Of Contents

    Index 1 Safety precautions and warnings ..........3 2 Description ................5 3 Before you start using your pressure washer ......6 4 Operating your pressure washer ..........7 5 Fields of Application and working methods ......9 6 After using your pressure washer ...........11 7 Maintenance ................13 8 Trouble Shooting ..............15 9 Further information ..............16...
  • Page 3 or approved by the manufac- Cable connections should be least 10 metres to absorb pos- turer. kept dry and off the ground. sible pressure peaks (min diam- High pressure hoses, fi ttings If the electric cable is eter ½ inch). and couplings are important damaged, it must be re- Operation by suction (for ex-...

  • Page 4: Description

    2 Description 2.1 Application This high-pressure washer has the high-pressure washer for been developed for domestic vaious cleaning jobs. use within: Only use the high-pressure - Car, motorbike, boat, cara- washer for purposes described van, trailer, patio/drive/fl ag- in this manual. stones, woodwork, brickwork, barbecue, garden furniture, The safety precautions must be...

  • Page 5: Before You Start Using Your Pressure Washer

    3 Before you start using your pressure washer 3.1 Mounting of trolley 1. Mount the trolley handle (12) handle and hose hook on the machine. 2. Mount the hose hook (14) on the handle. 3.2 Mounting of trolley hand- 1. Mount the trolley handle (12) le and hose reel (models on the machine.

  • Page 6: Operating Your Pressure Washer

    3.5 Mounting of high pres- Attach the high pressure hose sure hose (4) to the spray gun (7). Detach the high pressure hose by pressing the pawl (A). 4 Operating your pressure washer 4.1 Connection of high pres- 1. Mount the high pressure sure hose hose on the outlet (3).
  • Page 7 4.3 Water connection An ordinary 1/2" garden hose of IMPORTANT! min. 10 m and max. 25 m will Only use water be suitable. without any impurities. If there is a risk of running sands in the inlet water (i.e. from your own well), an additional fi...

  • Page 8: Fields Of Application And Working Methods

    4.5 Start the machine (when The washer can take in water 1. Place the other end of the connected to open con- from a rain water tank as an water hose in the water tank. tainers (suction mode)) example. The hose for the wa- Use an external fi...
  • Page 9 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click Cleaning method &...

  • Page 10: After Using Your Pressure Washer

    6 After using your pressure washer 6.1 Storing the washer The machine should be sto- 3. Stop the machine, unplug red in a frost-free room! and wind up hose and cable. 4. Place spray handle, nozzles Pump, hose and accessories and other accessories in the should always be emptied of holders of the machine.
  • Page 11 6.3 Storage of accessories The standard accessories C 120.5 X-TRA C 120.3 C 125.3 (spray gun, spray lance, noz- zles and foam sprayer) can be stored on the pressure washer. The nozzle cleaning tool can also be stored on the product. 6.4 Wall storage The pressure washer can be stored on a wall on a special...

  • Page 12: Maintenance

    7 Maintenance WARNING! Always disconnect To ensure a long and problem the electrical plug from the free working life, please take socket prior to maintenance or the following advice: cleaning. Wash out water hose, high pressure hose, spray lance and accessories before mounting.
  • Page 13 7.3 Cleaning of machine The machine should be kept vents clean so as to let cooling air pass freely through the ma- chine vents. 7.4 Greasing of couplings To ensure an easy connec- tion and that o-rings do not dry up, the couplings should be greased regularly.

  • Page 14: Trouble Shooting

    8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse.

  • Page 15: Further Information

    9 Further information 9.1 Recycling the washer Make the old cleaner unusable As specifi ed in European Direc- immediately. tive 2002/96/EC on old electri- cal and electronic appliances, 1. Unplug the cleaner and cut used electrical goods must the electric cable. be collected separately and recycled ecologically.
  • Page 16 9.3 Accessories Only use original accessories. Click & Clean Special nozzle for enameled surfaces. Optimal distance: 30 Car nozzle - 50 cm. Click & Clean 90° angled special nozzle for undercarriage and wheel arches. Undershassis Integrated guide shoes. nozzle Click & Clean Adjusted in angles from 0°...

  • Page 17: Eu Declaration Of Conformity

    Detergents Stone & Wood Cleaner For fl agstones, brick- and woodwork. Suitable for moss and algae. Plastic Cleaner For plastic and synthetic materials such as garden furniture. Metal Cleaner For cleaning of metal such as garden tools. Car Combi Cleaner For cars etc.
  • Page 19 C120.5 Model: C 120.5 C 120.5-6 P X-TRA C 120.5-6 X-TRA Part List US-English 27-11-2010...
  • Page 20 Table of Contents C120.5 Overview Motor punp unit Default accessories...
  • Page 21 27-11-2010 Overview Part List ID C120502 C120.5...
  • Page 22 27-11-2010 Overview Part List ID C120502 C120.5 Part no. Qty Description 128500004 BOX 10PCS C120.5 5703887108 127440094 FRONT COVER BLUE C120.5 5703887108 127440198 MAIN SWITCH 5703887108 127440181 CAPACITOR 25UF 500V FOR 230V 5703887108 127440197 CAPACITOR 30UF 500V FOR 230V 5703887108 USE LINK Motor pump unit 127440055...
  • Page 23 27-11-2010 Motor punp unit Part List ID C120506 C120.5...
  • Page 24 27-11-2010 Motor punp unit Part List ID C120506 C120.5 Part no. Qty Description 127440189 LOCK FOR FAN 5703887108 127500040 NEW FAN 5703887104 127440070 INDUCTION MOTOR 1400/1500W 5703887107 127440179 INDUCTION MOTOR 2100W 5703887108 6524050 RACK FOR MOTOR 5701715261 127130066 WASHER D22XD6.4X1.5 5703887102 4818 SCREW M6X20...
  • Page 25 27-11-2010 Default accessories Part List ID C120508 C120.5 No Drawing For Part List...
  • Page 26 27-11-2010 Default accessories Part List ID C120508 C120.5 Part no. Qty Description 126481115 POWERSPEED GREEN 5703887101 126481116 PR TORNADO YELLOW 5703887101 126481118 PR TORNADO TURQUOISE 5703887101 126481132 G3 GUN WITH INTERMEDIATE TUBE 5703887102 126481134 G3 LANCE COMPLETE 5703887102 126481138 HOSE 6M 5703887102 6411132 CC FOAM SPRAYER W.BOTTLE...
