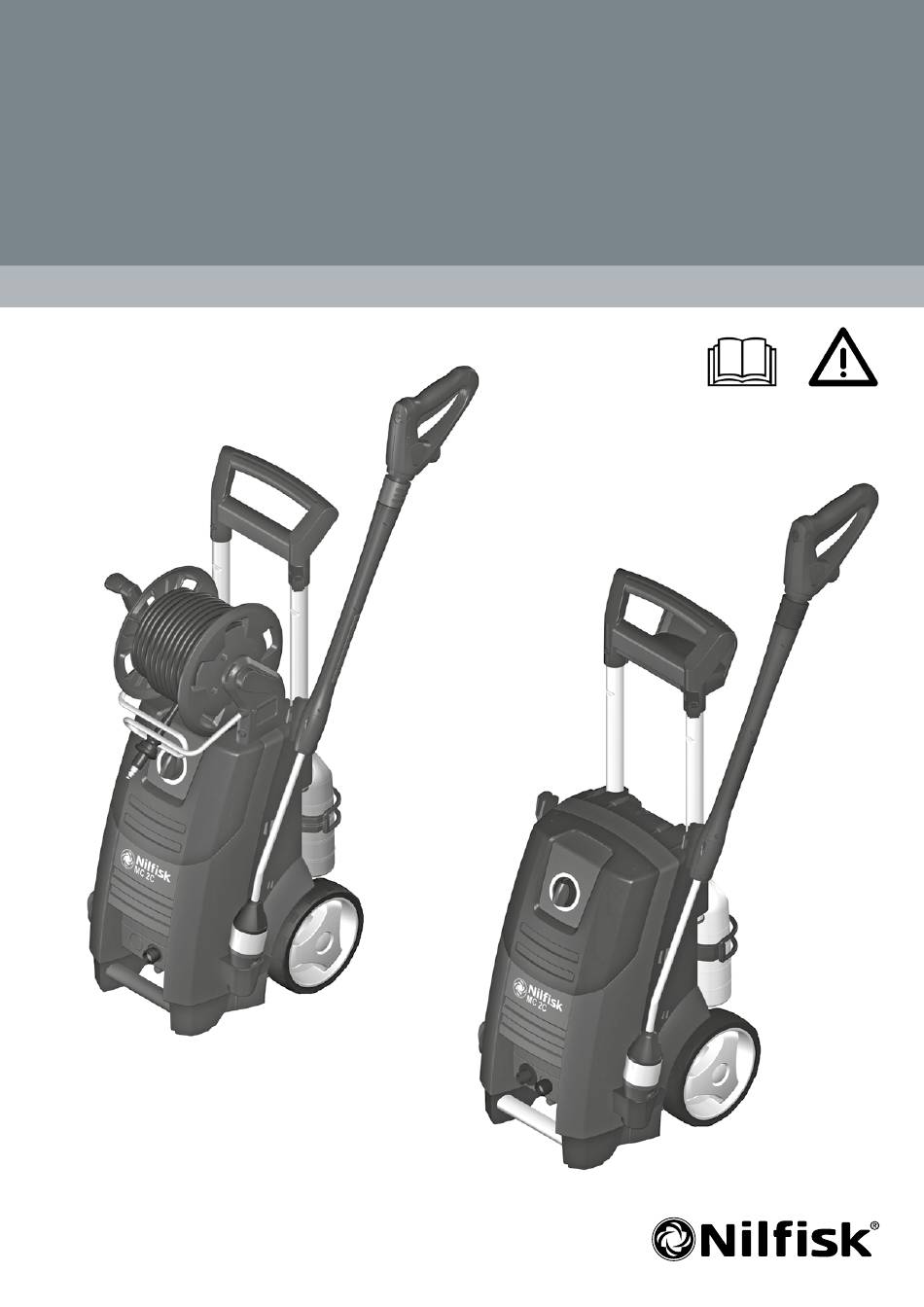

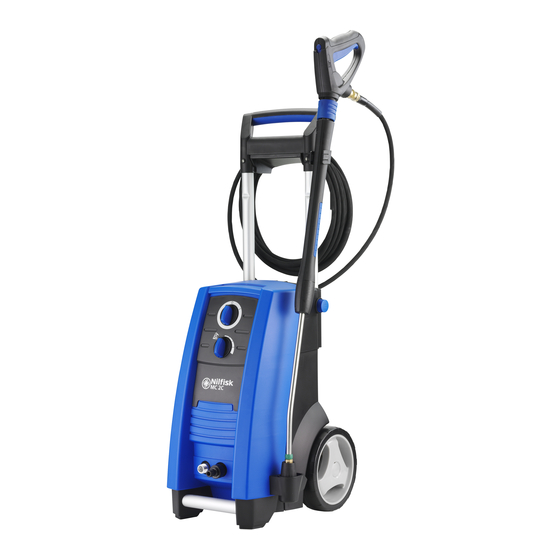

- Page 1 MC 2C Instruction manual 128337037 EN...
-
Page 2: Table Of Contents
Contents Introduction ....................3 1.1 Symbols used to mark instruction ...............3 Safety precautions and working techniques ..........3 Description ....................9 3.1 Application ......................9 3.2 Operation elements and model survey ...............9 Before you start using your pressure washer ........10 4.1 Mounting of holders for spray lance ..............10 4.2 Mounting of hose hook (only models without hose reel) ........10 4.3 Mounting of hose reel handle (only models with hose reel) ......10 4.4 Mounting of quick coupling ................11... -
Page 3: Introduction
1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. - Page 4 • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations. Accessories and spare parts • To ensure the machine safety only use original spare parts from Nilfisk or approved by Nilfisk.
- Page 5 • Wear goggles, ear protection and protective clothes during operation. Transporting the high pressure washer • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. •...
- Page 6 • It is recommended that the electrical supply to the ma- chine should include a residual current device that will interrupt the supply if the leakage current to earth ex- ceeds 30 mA for 30 ms. • Use motor start/delayed fuses with characteristic C or D according to IEC/EN 60898-1 / IEC 947-2 or corre- sponding standards outside IEC.
- Page 7 Safety devices Locking device on spray handle: • The spray handle features a locking device. When the pawl is activated, the spray handle cannot be ope- rated. Thermal sensor: • A thermal sensor protects the motor against overload- ing. The machine will restart after a few minutes when the thermal sensor has cooled.
- Page 8 After finishing the work WARNING! • Always switch off the machine and unplug the power plug from the socket after work and when leaving the machine unattended. • Disconnect water inlet hose between machine and water supply. • Always empty pump, hose and accessories of water after use of the machine and prior to storing.
-
Page 9: Description
3 Description 3.1 Application This high-pressure washer has Only use the high-pressure been developed for semiprofes- washer for purposes described sional routine cleaning: in this manual. The safety precautions must be – Professional craftsman jobs, cleaning of vehicles, boat, observed to prevent damage caravan and minor cleaning to the machine, the surface to jobs within building and con-... -
Page 10: Before You Start Using Your Pressure Washer
4 Before you start using your pressure washer 4.1 Mounting of holders for spray lance Mount the holders for spray lance on the machine. 4.2 Mounting of hose hook Mount the hose hook (13) on (only models without the handle (2. screws). hose reel) Note: The hose hook can be mounted on the front as well as... -
Page 11: Mounting Of Quick Coupling
4.4 Mounting of quick 1. Screw the quick coupling coupling tight on to the water inlet (2.). Note: The inlet filter must al- ways be fitted in the water inlet pipe to filter out major impuri- ties as these will damage the pump valves. -
Page 12: Mounting Of Spray Lance
5.2 Mounting of spray lance 1. Pull the blue quick-release grip (A) of the spray gun backwards. 2.. Insert the nipple of the spray lance (B) into the quick-re- lease connection and release 3. Pull the spray lance (or other accessory) forwards to check that it is securely attached to the spray gun. -
Page 13: Start And Stop Of The Machine (When Connected To A Water Supply)
5.5 Start and stop of the ma- The spray lance is affected by a to the surface, which is to be chine (when connected thrust during operation – there- cleaned. to a water supply) fore always hold it firmly with both hands. -
Page 14: Operation With Detergents
T and XT models: 4-in-1 spray lance The pressure can be regulated on the 4-in-1 spray lance. Low Pressure / detergent Tornado / high pressure Wide angle / high pressure Turbohammer / high pressure 5.8 Operation with 1. Fill the container with deter- detergents gent. -
Page 15: Fields Of Application And Working Methods
6 Fields of application and working methods 6.1 General Efficient high pressure cleaning is achieved by following a few guidelines, combined with your own personal experience of spe- cific cleaning tasks. Accessories and detergents, when correctly chosen, can increase the efficiency of your pressure washer. Here is some basic information about cleaning. -
Page 16: After Using Your Pressure Washer
7 After using your pressure washer 7.1 Storing the washer The machine should be 5. Machines without hose stored in a frost-free room! reel: Detach high pressure hose, coil it up and place it Pump, hose and accessories on the hose storage. should always be emptied of Machines with hose reel: water prior to storing as follows:... -
Page 17: Maintenance
8 Maintenance WARNING! Always disconnect Clean the connectors of dust the electrical plug from the and sand. socket prior to maintenance or Clean the nozzles. cleaning. To ensure a long and problem Any repair should always be free working life, please take made in an authorized work- the following advice: shop with original spare parts. -
Page 18: Trouble-Shooting
9 Trouble-shooting Please ensure that you check the following before contacting the Nilfisk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines. Defective extension cable Try without the extension cable. -
Page 19: Further Information
10 Further information 10.1 Service and Maintenance In case of need for service and maintenance, please contact your dealer. 11 Main Technical Data MC 2C- Type MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- MC 2C- 80/520 80/520 T... -
Page 20: Ec/Eu Declaration Of Conformity
12 EC/EU Declaration of Conformity Nilfisk A/S Kornmarksvej 1 DK-2.605 Broendby DENMARK Hereby declare under our sole responsibility that the Products: HPW – Consumer Description: 230 V, 50 Hz, IPX5 Type: MC 2C-120/50, -120/520 XT, -140/610 XT, -150/650 XT, -150/650 Are in compliance with the following standards: EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019 EN 60335-2-79:2012... -
Page 21: Declaration Of Conformity
13 UK Declaration of Conformity Nilfisk Ltd Nilfisk House, Bowerbank Way Gilwilly Industrial Estate Penrith Cumbria CA11 9BQ UK Hereby declare under our sole responsibility that the Products: HPW – Consumer Description: 230V 50Hz, IPX5 Type: MC 2C-120/520, -120/520 XT, -140/610 XT, -150/650 XT, -150/650 Are in compliance with the following standards: EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019 EN 60335-2-79:2012... - Page 23 HEAD QUARTER Website: www.consumer.nilfisk.de SINGAPORE Den-Sin GREECE 2.2. Tuas Avenue 2. DENMARK Nilfisk A.E. 639453 Singapore Nilfisk A/S Αναπαύσεως 29 Tel.: (+65) 6268 1006 Kornmarksvej 1 Κορωπί Τ.Κ. 194 00 Website: www.densin.com DK-2.605 Broendby Tel.: (30) 210 911 9600 Tel.: (+45) 4323 8100 Website: www.consumer.nilfisk.gr Website: www.nilfisk.com SLOVAKIA...
