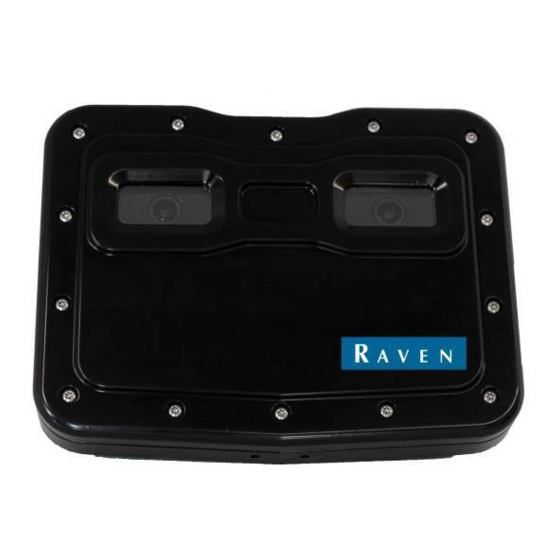

VSN Installation Manual
for Generic Implements
016-2025-004 Rev. A
2/2021
E36621
Copyright 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSN and is the answer not in the manual?

Questions and answers

Summary of Contents for Raven VSN

  • Page 1 VSN Installation Manual for Generic Implements 016-2025-004 Rev. A 2/2021 E36621 Copyright 2021...
  • Page 2 Raven systems, or products used as components of systems, which rely upon the reception of these signals or availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or services for other than the stated purpose.
  • Page 3: Table Of Contents

    ...................................6 Kit Contents ................................... 7 Chapter 3 Installation ....................... 9 Mounting VSN ................................9 Cabling and Connection ............................13 VSN Camera Cable ................................14 Optional Ethernet Cable (for use in the event of Wi-Fi Failure or Restriction) ..........17 016-2025-004 Rev. A...
  • Page 4 Table of Contents VSN Installation Manual for Generic Implements...
  • Page 5: Important Information

    • Do not operate this Raven system or any agricultural equipment while under the influence of alcohol or an illegal substance. • Be alert and aware of surroundings and remain in the operator seat at all times when operating this Raven system.
  • Page 6: Touch Screen

    CHAPTER 1 • Always start the machine before initializing this Raven system to prevent power surges or peak voltage. • To avoid tripping and entanglement hazards, route cables and harnesses away from walkways, steps, grab bars, and other areas used by the operator or service personnel when operating or servicing the equipment.
  • Page 7 IMPORTANT INFORMATION • Inspect electrical components and connectors for corrosion, damaged pins or housings, etc. Repair or replace components or harnessing as necessary. • Ensure connectors are kept clean and dry. Apply dielectric grease to the sealing surfaces of all connections exposed to moisture, dirt, debris, and other contaminates.
  • Page 8 CHAPTER 1 VSN Installation Manual for Generic Implements...
  • Page 9: Chapter 2 Introduction

    C H A P T E R 2 The following instructions are designed to assist with the proper installation of the VSN system. Refer to the VSN Calibration & Operation Manual (P/N 016-2020-001) for assistance with calibrating and using the VSN system.
  • Page 10: Updates

    Software and manual updates are available on the Raven Applied Technology website: http://www.ravenprecision.com At Raven Industries, we strive to make your experience with our products as rewarding as possible. One way to improve this experience is to provide us with feedback on this manual.
  • Page 11: Kit Contents

    KIT CONTENTS This section contains a list of the components that are included in the VSN kit. Before beginning the system installation, compare the items in the kit with the components on this list. If you have questions about the kit, contact your Raven dealer.
  • Page 12 CHAPTER 2 VSN Installation Manual for Generic Implements...
  • Page 13: Installation

    VSN may be mounted either in between rows or on top of a row. 2. Mount the VSN Implement Side Bracket (P/N 116-0159-865) to the implement frame as shown in Figure 1 on page 10. The example in this figure represents M16 U-bolts around a 100 mm x 100 mm square frame tube.
  • Page 14 Hardware 4. Slide the aluminum post into the bracket and secure the post by tightening the bolts. 5. Install the remaining sliding blocks on the VSN mounting bracket using M8 hardware as shown in Figure 3 on page 11. VSN Installation Manual for Generic Implements...
  • Page 15 FIGURE 4. VSN Camera Debris Shield and Bracketry M8 Hardware Rubber Isolator 8. Mount the VSN camera to the aluminum post by hanging the hooks over the VSN mounting bracket pins as shown in Figure 5 on page 12. Installation: Mounting VSN...
  • Page 16 FIGURE 5. VSN Camera Mounting to Post Clamping Handle Hook and Pin 9. Set the VSN camera angle at a 45° angle to the ground and secure by tightening the provided clamping handles (P/N 309-1000-029). FIGURE 6. Setup Camera Angle 45°...
  • Page 17: Cabling And Connection

    INSTALLATION CABLING AND CONNECTION FIGURE 7. VSN Steering System Diagram for Generic Implement Steering (P/N 054-2025-004 Rev. A) Installation: Cabling and Connection...
  • Page 18: Vsn Camera Cable

    1. Locate the round, ISOBUS Implement Connector (IBIC) on the back of the tractor. Disconnect the IBIC from the IBBC before proceeding. FIGURE 8. IBIC and IBBC Connectors 2. Locate the Gen 1 implement steering cable connectors. FIGURE 9. Gen 1 Implement Steering Connectors VSN Installation Manual for Generic Implements...
  • Page 19 INSTALLATION 3. Tee the mating 2-pin and 12-pin Gen 1 connectors on the VSN camera cable (P/N 115-2020-020) between the existing steering cables. 4. Route the gray 23-pin connector along the implement frame member to the VSN camera. NOTE: Be sure the cable is routed to prevent the cable from being pinched by the frame or other moving components of the implement.
  • Page 20 A 5-pin to 8-pin video adapter cable (P/N 115-0172-608) is required if the existing camera cable is an 8-pin camera input cable (P/N 115-0172-077). FIGURE 13. CR12 Connection NOTE: The 4-pin T1 Ethernet connector on the analog video cable will not be used. VSN Installation Manual for Generic Implements...
  • Page 21: Optional Ethernet Cable (For Use In The Event Of Wi-Fi Failure Or Restriction)

    Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
  • Page 22 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
