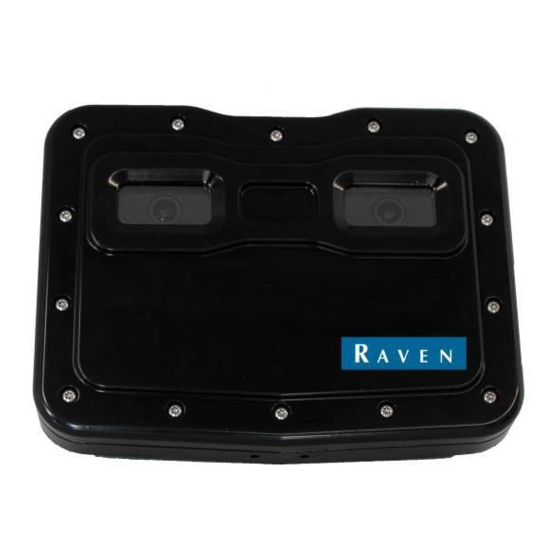

VSN Installation Manual
for RBR Vector Ventuir/
Vortex, MY18+
016-2025-001 Rev. A
1/2020
E34392
Copyright 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSN and is the answer not in the manual?

Questions and answers

Related Manuals for Raven VSN

Summary of Contents for Raven VSN

  • Page 1 VSN Installation Manual for RBR Vector Ventuir/ Vortex, MY18+ 016-2025-001 Rev. A 1/2020 E34392 Copyright 2020...
  • Page 2 Raven systems, or products used as components of systems, which rely upon the reception of these signals or availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or services for other than the stated purpose.

  • Page 3: Table Of Contents

    Recommendations ................................. 5 Point of Reference .................................. 5 Updates ...................................6 Kit Contents ................................... 7 Chapter 3 Installation ....................... 9 Mounting VSN ................................9 Cable Installation ..............................15 Outside of Cab ..................................15 Inside of Cab ..................................18 Cabling and Connection ............................20 Optional Ethernet Cable ..............................20...
  • Page 4 Table of Contents VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...

  • Page 5: Important Safety Information

    • Do not operate VSN or any agricultural equipment while under the influence of alcohol or an illegal substance. • Remain in the operator’s position or a safe working distance away from the booms at all times when VSN is engaged.

  • Page 6: General

    Allow sufficient clearance from machine component operational zones such as: • Drive shafts, universal joints and hitches (i.e. 3-point hitch) • Pulleys, gears, sprockets • Deflection and backlash of belts and chains • Adjustment zones of adjustable brackets VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...
  • Page 7 IMPORTANT SAFETY INFORMATION • Changes of position in RS1 HD and suspension systems • Moving linkages, cylinders, articulation joints, attachments • Ground engaging components For harness sections that move during machine operation: • Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or rubbing, especially in articulation and pivot points •...
  • Page 8 CHAPTER 1 VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...

  • Page 9: Chapter 2 Introduction

    Calibration & Operation Manual (P/N 016-2020-001) for assistance with calibrating and using the VSN system. PREPARING FOR INSTALLATION Before installing the VSN system, park the machine where the ground is level, clean, and dry. Turn off the machine and leave it turned off for the duration of the installation process.

  • Page 10: Updates

    Software and manual updates are available on the Raven Applied Technology website: http://www.ravenprecision.com At Raven Industries, we strive to make your experience with our products as rewarding as possible. One way to improve this experience is to provide us with feedback on this manual.

  • Page 11: Kit Contents

    KIT CONTENTS This section contains a list of the components that are included in the VSN kit. Before beginning the system installation, compare the items in the kit with the components on this list. If you have questions about the kit, contact your Raven dealer.
  • Page 12 CHAPTER 2 VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...

  • Page 13: Installation

    C H A P T E R 3 MOUNTING VSN WARNING Unfold and lower the booms during the installation process. 1. Locate the battery box on the front right frame rail. FIGURE 1. Battery Box Location 2. Turn the battery disconnect off. Installation: Mounting VSN...
  • Page 14 FIGURE 2. Removed Battery Box Cover 4. Remove the batteries from the battery box compartment. NOTE: Be sure to note how the battery cables connect to the batteries prior to removal. FIGURE 3. Removed Batteries VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...
  • Page 15 8. Install the front vertical support bracket (P/N 107-0172-668) using the two 3/8” bolts that were removed in the previous step. NOTE: Do not tighten the bolts until all brackets are installed. FIGURE 5. Installed Front Vertical Support Bracket Installation: Mounting VSN...
  • Page 16 Qty. 2 – 313-2301-810 – ½” Flat Washer. Qty. 1 – 312-4000-101 – ½”-13 Nylock Nut. 12. Secure the other end of the frame support bracket (P/N 107-0172-677) to the VSN Visual Guidance rectangular tube mounting arm (P/N 116-0159-846) using the provided M10 hardware.
  • Page 17 FIGURE 7. Installed Frame Support Arm Frame Support Arm 13. Install the camera mounting bracket (P/N 116-0159-834) to the VSN Visual Guidance rectangular mounting arm (P/N 116-0159-846) using the provided M10 hardware. Qty. 4 – 311-4051-224N – M10 x 30MM Bolt.
  • Page 18 CHAPTER 3 14. Ensure that the VSN Visual Guidance rectangular mounting arm is square and level to the machine. 15. Securely tighten all installed hardware. 16. Assemble the VSN Visual Guidance camera brackertry using the provided M8 hardware. Qty. 1 – 116-0159-837 – VSN Mount.

  • Page 19: Cable Installation

    INSTALLATION FIGURE 10. Installed Camera Assembly 18. Reinstall the machine batteries in the reverse order in which they were removed. 19. Reinstall the machines battery box cover. 20. Turn on the machine battery disconnect. Installation: Mounting VSN...
  • Page 20 CHAPTER 3 CABLE INSTALLATION OUTSIDE OF CAB 1. Identify the VSN Visual Guidance cable (P/N 115-2020-012) 2. Locate the cab access panel in the right rear corner of the machines cab. FIGURE 11. Cab Access Panel 3. Remove the panel cover.
  • Page 21 “TO RS1 Tee Cable” to the 6 pin Deutsch connectors on the RS1 tee cable. FIGURE 13. VSN Visual Guidance Cable Connected to RS1 Tee Cable 8. Route the 23 pin connector on the VSN Visual Guidance cable, PN 115-2020-012, towards the front of the machine where the VSN Visual Guidance assembly is installed.

  • Page 22: Inside Of Cab

    9. Connect the 23 pin connector to the back of the VSN Visual Guidance assembly. FIGURE 14. VSN Visual Guidance Camera Connection 10. Use the provided cable clamps and ¼” hardware to secure the cable to the threaded studs on the VSN Visual Guidance rectangular mounting arm, PN 116-0159-846.
  • Page 23 INSTALLATION FIGURE 15. Cab Access 3. Route the connector labeled “TO V4 Video Port” to the back of the Viper 4/4+ display and connect it to Port 6 on the Viper 4/4+. NOTE: Utilize the connector labeled “TO V4 Video Port Tee” if there is a secondary video feed connected to the Viper 4/4+ previously.

  • Page 24: Cabling And Connection

    CHAPTER 3 CABLING AND CONNECTION OPTIONAL ETHERNET CABLE 1. Connect the blue/green Ethernet cable to the back of the VSN camera. 2. Route the Ethernet cable along the frame and up to the RS1. 3. Connect remaining end to the RS1.
  • Page 25 INSTALLATION FIGURE 18. RBR Vector 350 / Vortex - MY19 (P/N 054-3900-003 Rev. C) Installation: Cabling and Connection...
  • Page 26 CHAPTER 3 VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...
  • Page 27 Index Important Safety Information Electrical Safety General 2 Instructions for Wire Routing 2 Introduction Kit Contents Preparing for Installation Point of Reference 5 Recommendations 5 Updates Kit Contents 016-2025-001 Rev. A...
  • Page 28 Index VSN Installation Manual for RBR Vector Ventuir/Vortex, MY18+...
  • Page 29 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
  • Page 30 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
