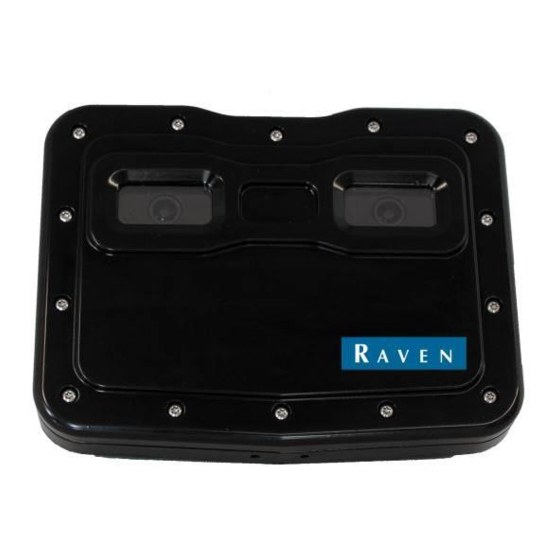

Raven VSN Installation Manual
For nh sp 310f / miller 7310 front boom sprayers my19+
Hide thumbs
Also See for VSN:
- Operation manual (57 pages) ,
- Installation manual (30 pages) ,
- Installation manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Raven VSN
Summary of Contents for Raven VSN
- Page 1 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+ 016-2022-013 Rev. A 9/2020 E35424 Copyright 2020...
- Page 2 Raven systems, or products used as components of systems, which rely upon the reception of these signals or availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or services for other than the stated purpose.
-
Page 3: Table Of Contents
................................. 5 Point of Reference .................................. 5 Updates ...................................6 Kit Contents ................................... 7 Chapter 3 Installation ....................... 9 Mount VSN ..................................9 Install Radar ................................13 System Diagram ................................ 15 Route the Cables ............................... 16 Cabling and Connection ............................17 Optional Ethernet Cable ..............................17... - Page 4 Table of Contents VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
-
Page 5: Important Safety Information
• Do not operate VSN or any agricultural equipment while under the influence of alcohol or an illegal substance. • Remain in the operator’s position or a safe working distance away from the booms at all times when VSN is engaged. -
Page 6: General
• Drive shafts, universal joints and hitches (i.e. 3-point hitch) • Pulleys, gears, sprockets • Deflection and backlash of belts and chains • Adjustment zones of adjustable brackets VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+... - Page 7 IMPORTANT SAFETY INFORMATION • Changes of position in RS1 HD and suspension systems • Moving linkages, cylinders, articulation joints, attachments • Ground engaging components For harness sections that move during machine operation: • Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or rubbing, especially in articulation and pivot points •...
- Page 8 CHAPTER 1 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
-
Page 9: Chapter 2 Introduction
Calibration & Operation Manual (P/N 016-2020-001) for assistance with calibrating and using the VSN system. PREPARING FOR INSTALLATION Before installing the VSN system, park the machine where the ground is level, clean, and dry. Turn off the machine and leave it turned off for the duration of the installation process. -
Page 10: Updates
Software and manual updates are available on the Raven Applied Technology website: http://www.ravenprecision.com At Raven Industries, we strive to make your experience with our products as rewarding as possible. One way to improve this experience is to provide us with feedback on this manual. -
Page 11: Kit Contents
KIT CONTENTS This section contains a list of the components that are included in the VSN kit. Before beginning the system installation, compare the items in the kit with the components on this list. If you have questions about the kit, contact your Raven dealer. - Page 12 313-6000-031N WASHER, SPRING LOCK, DIN 127-M10 313-6001-016N BOLT, M8-1.25X25MM, CLASS V COATING 311-4055-180N WASHER, M8, CLASS V COATING 313-6000-013N WASHER, LOCK, M8, CLASS V COATING 313-6001-013N VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
-
Page 13: Chapter 3 Installation
2. Locate the center trim bracket and the two bolts securing the bracket. 3. Remove the rubber socket from the steel bracket. FIGURE 2. Two Bolts to be Removed Remove NOTE: Keep the rubber socket and bolt as they will be reinstalled on the new bracket. Installation: Mount VSN... - Page 14 Hardware 3X M10 Bolts and Hardware 6x M8 Bolts and Hardware 1x M8 or M10 Bolt and Hardware (Depends on Machine) FIGURE 5. Mounting Bracket Installed VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
- Page 15 7. Assemble the VSN subassembly as pictured in Figure 7, “VSN Subassembly,” below. FIGURE 7. VSN Subassembly M8 Hardware (Bolt, Lock Washer, Washer Rubber Isolator) Rubber Isolator 8. Secure the VSN subassembly to the machine brackets with the included M8 hardware. FIGURE 8. Installed VSN Installation: Mount VSN...
-
Page 16: Install Radar
Prior to installing the sensor cover, record the serial number and whether the sensor is installed on the right or left side of the machine. The sensor covers should be installed after the cabling is routed. VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+... - Page 17 INSTALLATION FIGURE 11. Bracket Loosely Installed 3. Make note of the serial number listed on the radar sensor. FIGURE 12. Serial Number Location NOTE: It is important to record the serial number. The radar device will be covered by a cover plate. Installation: Install Radar...
-
Page 18: System Diagram
CHAPTER 3 SYSTEM DIAGRAM FIGURE 13. VSN for NH/Miller Front Boom Sprayers MY 19+ (P/N 054-2022-013 Rev. B) VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+... -
Page 19: Route The Cables
3. Tee in the 115-2020-018 cable into this connection by removing the factory connector nut and making the tee connection on the front side of the center rack. 4. Route the VSN connector up and along the boom between the boom frame and front blue cover. 5. Plug the VSN connector into the VSN from below. - Page 20 FIGURE 17. Proper and Improper Cable Routing Improper Proper NOTE: Ensure the cable is routed away from hinge/pinch points under the machine bottom covers. VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
- Page 21 INSTALLATION 13. Route the remaining cabling to the other side of the machine and it will be connected to the front left sensor. FIGURE 18. Cable Routing 14. Once connected, use zipties to secure the cabling and replace the factory shields. FIGURE 19.
-
Page 22: Optional Ethernet Cable
2. Route the Ethernet cable along the frame and up to the RS1. 3. Connect remaining end to the RS1. FIGURE 21. RS1 Connection Ethernet Port VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+... -
Page 23: Install Standalone Height Sensor (If Applicable)
INSTALLATION INSTALL STANDALONE HEIGHT SENSOR (IF APPLICABLE) If the machine does not have XRT boom height control, the optional standalone XRT bracket and hardware (P/N 117-2020-005) will need to be installed on the center rack on the right side near the sprayer boom mount. FIGURE 22. - Page 24 CHAPTER 3 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
- Page 25 Index Important Safety Information Electrical Safety General 2 Instructions for Wire Routing 2 Introduction Kit Contents Preparing for Installation Point of Reference 5 Recommendations 5 Updates Kit Contents 016-2022-013 Rev. A...
- Page 26 Index VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+...
- Page 27 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
- Page 28 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
