Halton Rex Expander (RXP) - Installation, commissioning, and maintenance guide
9 Technical reference data
9.1 Connections: Electric actuator of HAQ control

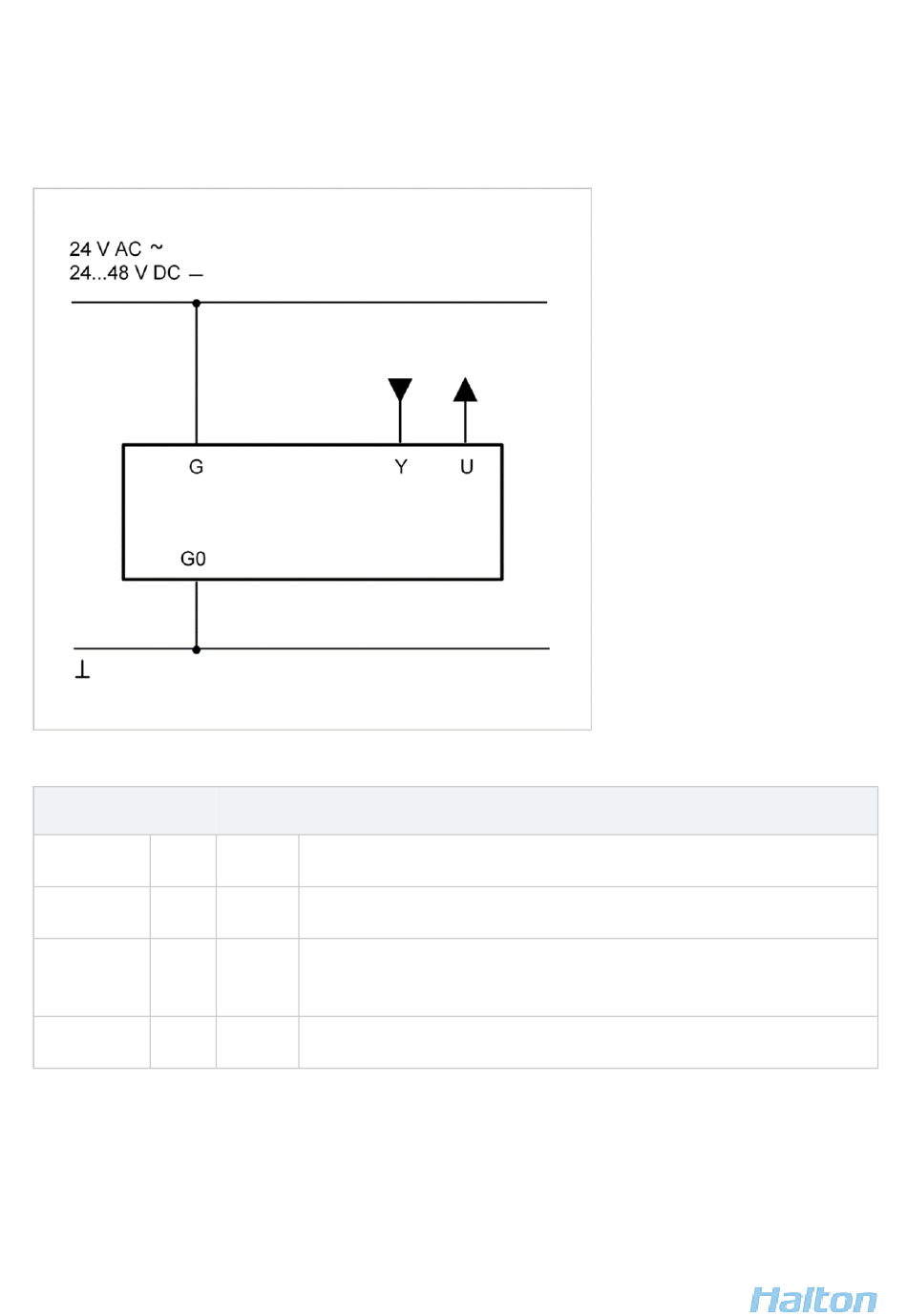

Figure 16. Connection diagram: Electric actuator of HAQ control
Connection
No.
G
1
G0
2
Y
8
U
9
1.0
Colour
Comment
Red
24 V AC / 24...48 V DC
Black
Ground
Grey
0...10 V DC. Control signal in for HAQ position. The voltage corresponds to
the HAQ openings and k-factors according to the table below.
Pink
0...10 V DC. Feedback signal out indicating the HAQ position.
All rights reserved ©Halton
27
