Matrix COSEC ATOM RD300 Quick Installation Manual page 7

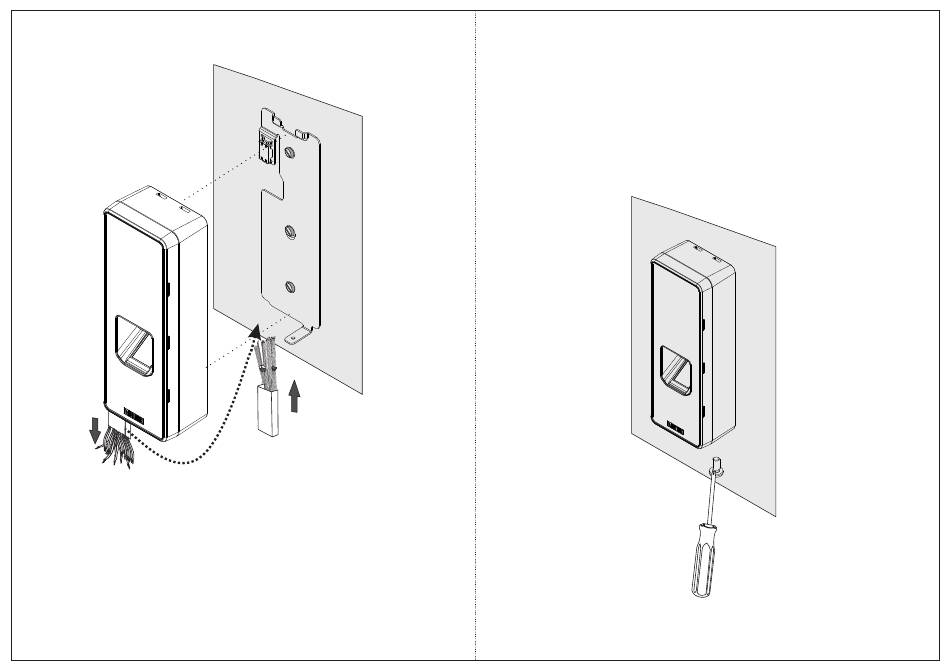

Step 3: Inserting Mounting Screw
1. Fix the Reader body with the Mounting Plate such that the
Mounting Slots of the Reader and Mounting Plate align with each
other.
13
2. Slide the reader downwards to fix it into the groove of the
Mounting Plate and insert the Mounting screw back in place at the
bottom of the device.
3. Tighten the screw with 2 kgf-cm torque as shown in Figure 17.
Figure 15
Figure 17
14
