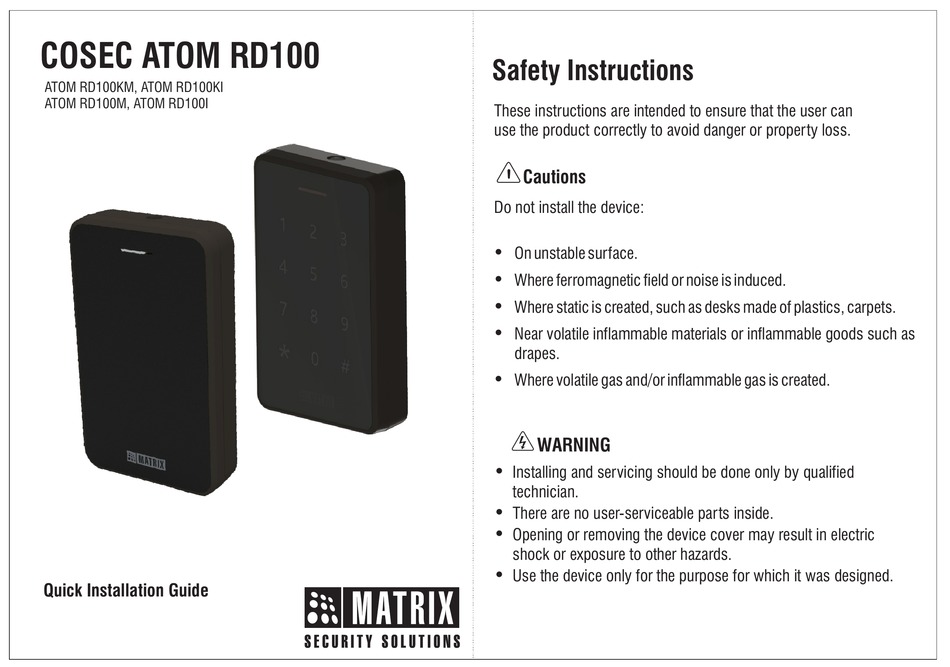

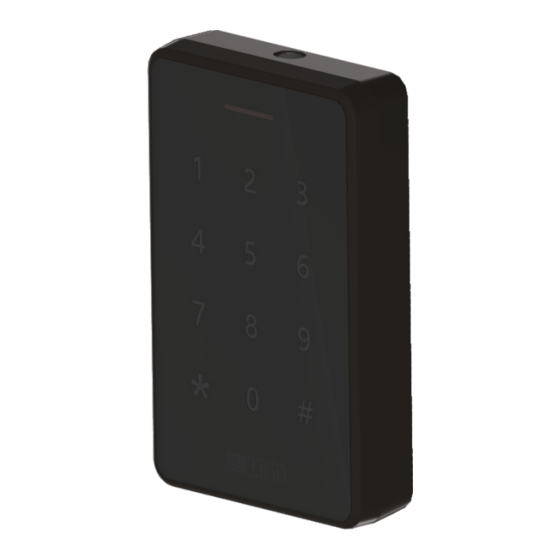

COSEC ATOM RD100
ATOM RD100KM, ATOM RD100KI
ATOM RD100M, ATOM RD100I
Quick Installation Guide
Safety Instructions
These instructions are intended to ensure that the user can
use the product correctly to avoid danger or property loss.
Cautions
Do not install the device:
Ÿ
On unstable surface.
Ÿ
Where ferromagnetic field or noise is induced.
Ÿ
Where static is created, such as desks made of plastics, carpets.
Ÿ
Near volatile inflammable materials or inflammable goods such as
drapes.
Ÿ
Where volatile gas and/or inflammable gas is created.
WARNING
Ÿ
Installing and servicing should be done only by qualified
technician.
Ÿ
There are no user-serviceable parts inside.
Ÿ
Opening or removing the device cover may result in electric
shock or exposure to other hazards.
Ÿ
Use the device only for the purpose for which it was designed.
Advertisement
Table of Contents
Related Manuals for Matrix COSEC ATOM RD100
Summary of Contents for Matrix COSEC ATOM RD100
- Page 1 COSEC ATOM RD100 Safety Instructions ATOM RD100KM, ATOM RD100KI ATOM RD100M, ATOM RD100I These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. Cautions Do not install the device: Ÿ...
-
Page 2: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to make changes in product design and specifications without prior notice. -
Page 3: What Your Package Contains
What your Package contains Installation Ÿ ATOM RD100 Unit (with cable assembly) Removing the Mounting Plate Step 1 Ÿ Wall Mounting Screws (2 nos.) Ÿ Plastic Screw Grips (2 nos.) Ÿ From the top of the COSEC ATOM, unscrew the Mounting screw with the help of screw driver as illustrated in Figure 4. - Page 4 Step 2 Connecting the Cables 2. Affix the mounting plate with the help of the screws and screw grips through the holes A and B. Ÿ You can mount COSEC ATOM in two ways : Concealed Wiring or Non-concealed Wiring as explained below. A.
- Page 5 3. Lead the cables from the wall through the drilled area C of the B. Non- Concealed Wiring Mounting Plate as illustrated in Figure 8. Connect the necessary cables 1. Follow the Step: 1 and Step: 2 as explained for the Concealed with COSEC ATOM.
- Page 6 2. Unscrew the Back Plate screw with the help of screwdriver and remove the Back Plate. 3.Pull out the Cables from the Back Plate hole and lead the cables outside from the bottom opening of COSEC ATOM, as illustrated in Figure 10. Figure 11 Back Plate Figure 10...
-
Page 7: Technical Specifications
Technical Specifications Specification Remarks Parameters Credential Support Card and Mobile credential over BLE User Capacity Depends on Master Device Card storage Depends on Master Device Capacity HID I - class, MIFARE **Type of Card / Desfire / Combo Cards / NFC Figure 12 MIFARE -6 cm or more, Desfire Ev1-Atleast 4 cm... -
Page 8: Led And Buzzer Indications
** The type of Supported Card in COSEC ATOM is different as per their variants; (ATOM RD100KM, ATOM RD100KI, ATOM RD100M, ATOM RD100I). State Single LED Buzzer Refer COSEC Server User Guide for the type of supported card in each (tri Color) variant. -
Page 9: Connecting The Reader
RS232 TX Grey RS232 RX Pink TEMPER Light Blue W DATA1 White W DATA0 Green BEEPER Yellow COSEC ATOM RD100 RED LED Purple Figure 14 GREEN LED Orange Black Wiegand +12V_RDR Interface TO COSEC DOORs Figure 16 TO 3 PARTY ACCESS CONTROL DEVICES... - Page 10 —Increase the separation between the equipment and receiver. Matrix Return Material Authorization (RMA) department. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
