Assembly and operating instructions
Translation of the Original Assembly Instructions EN
CS 25/60
Order no.: 50224806
CS 25/180
Order no.: 50224808
Assembly instructions EN
Compact Slide
CS 25
CS25
Date 01.06.2021
CS 25/120
CS 25/240
Version 3.0
Order no.: 50224807
Order no.: 50224809
1–60
Advertisement
Chapters
Table of Contents
Related Manuals for Afag CS 25
Summary of Contents for Afag CS 25

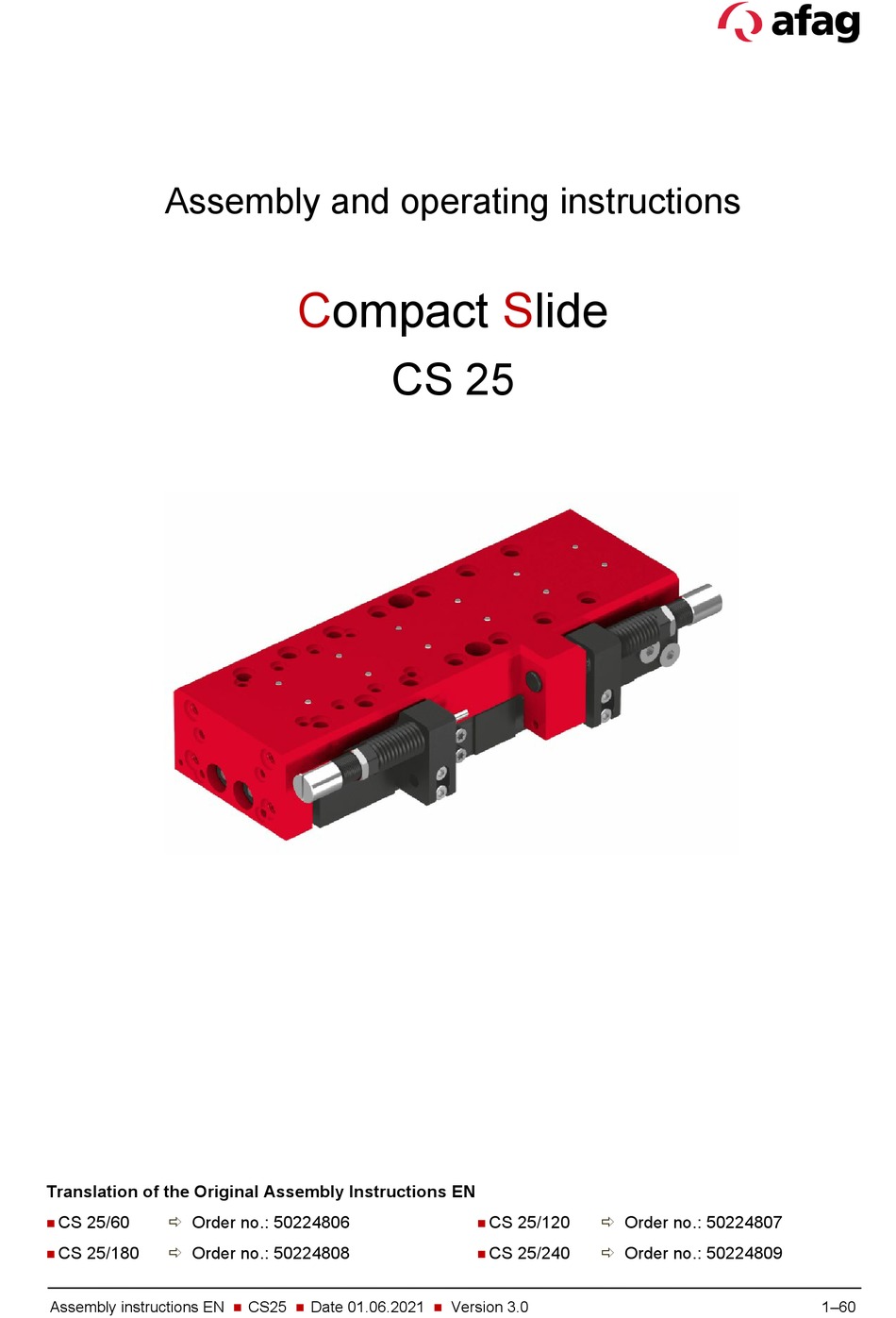

- Page 1 Assembly and operating instructions Compact Slide CS 25 Translation of the Original Assembly Instructions EN CS 25/60 Order no.: 50224806 CS 25/120 Order no.: 50224807 CS 25/180 Order no.: 50224808 CS 25/240 Order no.: 50224809 ...
- Page 2 Your Afag team © Subject to modifications The compact slides CS 25 have been designed by Afag Automation AG according to the state of the art. Due to the constant technical development and improvement of our products, we reserve the right to make technical changes at any time.
-
Page 3: Table Of Contents
Technical data CS 25 ................. 17 Preferred combinations CS 25 ..............18 Slide loads CS 25 ..................19 Operation time diagram CS 25 ..............20 Transport, packaging and storage ..............21 Safety instructions for transport ..............21 Scope of supply ..................22 Transport .................... - Page 4 Table of contents Design and description ..................24 Design Compact Slide ................24 Product description ..................24 Accessories CS 25 ..................25 Installation, assembly & setting ................. 27 Safety instructions for Installation & assembly ........... 27 Installation & assembly ................28 6.2.1 Assembly &...
- Page 5 Table of contents 9.3.1 Overview of the maintenance points ............ 50 9.3.2 Compressed air specifications ............. 51 9.3.3 Further maintenance ................52 Spare and wear parts lists, repairs ............. 52 9.4.1 General notes ..................52 9.4.2 Safety instructions ................52 Decommissioning, disassembly, disposal ............
-
Page 6: General
Contents and purpose of these assembly instructions These assembly instructions contain important information on assembly, commissioning, functioning and maintenance of the compact slides CS 25 to ensure safe and efficient handling and operation. Consistent compliance with these assembly instructions will ensure: ... -
Page 7: Additional Symbols
General This note contains important additional information as well as useful tips for safe, efficient and trouble-free operation of the compact slide. Further warning signs: Where applicable, the following standardised symbols are used in this manual to point out the various potential health risks. Warning - Dangerous electrical voltage. -
Page 8: Applicable Documents
Wear parts (e.g. shock absorbers) are excluded from the warranty*. The warranty covers the replacement or repair of defective Afag parts. Further claims are excluded. * However, a customer has a right to a defect-free product. This does also apply to defective accessories and wear parts. -
Page 9: Safety Instructions
The CS compact slides are designed exclusively for linear movement in any position on the slide for load capacities up to a maximum of (CS 25 = 7.5 kg). Load capacities at the front of the modules (CS 25 = up to 5.0 kg). -
Page 10: Obligations Of The Operator And The Personnel
the operating company shall be solely responsible for such damage, and AFAG does not accept any liability for damage caused by improper use. Obligations of the operator and the personnel 2.4.1 Observe the assembly instructions... -
Page 11: Obligations Of The Personnel
Safety instructions 2.4.3 Obligations of the personnel All personnel working with the modules are required to: read and observe these assembly instructions, especially the chapter on safety, observe the occupational safety and accident prevention regulations, observe all safety and warning signs on the compact slide, ... -
Page 12: Personal Protective Equipment (Ppe)
Changes & modifications No changes may be made to the compact slide which have not been described in these assembly instructions or approved in writing by Afag Automation AG. Afag Automation AG accepts no liability for unauthorised changes or improper assembly, installation, commissioning, maintenance or repair work. -
Page 13: General Hazards / Residual Risks
Safety instructions General Hazards / residual risks Despite the safe design of the machine and the technical protective measures taken, there still remain residual risks that cannot be avoided and which present a non-obvious residual risk when operating the compact slides. Observe the safety instructions in this chapter and in the other sections of this manual to avoid damage to property and dangerous situations for the personnel. -
Page 14: Danger Due To Electricity
Safety instructions CAUTION Risk of noise-induced hearing loss! When the compact slides are installed in a machine or plant, the permissible noise level may be exceeded depending on the various components, the environment and the resonance. The operating company is responsible for ensuring that the permissible noise levels are observed. -
Page 15: Danger Due To Pneumatics
Safety instructions 2.8.4 Danger due to pneumatics WARNING Risks by the pneumatic system! The pneumatic system can pose various hazards that can cause serious or fatal injuries if the work is carried out improperly. Only qualified personnel may work with or on the pneumatic system! ... -
Page 16: Technical Data
Technical data Technical data Dimensional drawing CS 25 Fig. 1 Dimensional drawing Compact Slide CS 25 16 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ... -
Page 17: Technical Data Cs 25
Technical data Technical data CS 25 Fig. 2 Table technical data CS 25 * The maximum load capacities are listed in the table in the section Slide loads ( slide loads 3.4). Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 17–60... -
Page 18: Preferred Combinations Cs 25
Technical data Preferred combinations CS 25 18 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ... -
Page 19: Slide Loads Cs 25
Technical data Slide loads CS 25 Fig. 3 Table of slide loads CS 25 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 19–60 ... -
Page 20: Operation Time Diagram Cs 25
Technical data Operation time diagram CS 25 20 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ... -
Page 21: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage This chapter provides information regarding proper transport, packaging and storage of the compact slides. Safety instructions for transport CAUTION Danger of injury when unpacking the modules! The compact slides are packed in the original packaging (cardboard box). If handled incorrectly, the module may fall out of the box when unpacked and cause limb injuries. -
Page 22: Scope Of Supply
Scope of supply The compact slides are supplied with an operating and assembly manual and a safety data sheet (see scope of supply below). CS 25 Module CS 25 Shock absorber SD M14x1-2 Centering bushing Ø 12x4.8 mm Special screw M8x35 mm... -
Page 23: Packaging
Transport, packaging and storage Packaging The compact slides are packed in the most appropriate manner. Standardized symbols for packages Symbol Note Explanation The package shall be transported, handled and stored with the arrows always pointing upwards (top side of the package). Fragile Products marked with this symbol shall be handled with care and may never be turned... -
Page 24: Design And Description

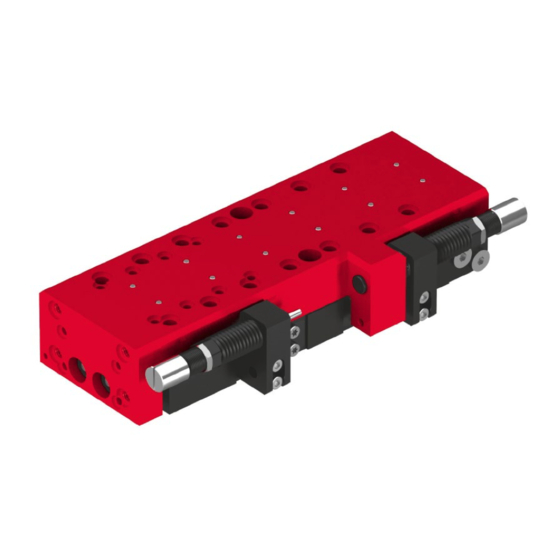

The assembly position of the compact slide can be vertical or horizontal. The CS 25 consists of the base body (Fig. 5, 1) with the pneumatic connections, the guide (Fig. 5, 6) and the cylinder that moves the slide (Fig. 5, 2). The end positions are each adjusted via a stop screw with integrated shock absorber (Fig. -
Page 25: Accessories Cs 25
Initiator INI c10x28.5-Em-PNP-NO-M8x1 50033432 Initiator INI d4x25-Sn1.0-PNP-NO-M8x1 11016714 Initiator INI c10x9-Em-PNP-NO-M8x1 50313986 Clamping nut M8x0.75 11005436 Initiator d6.5x44-Sn1.5-PNP-NO-M8x1 11005439 Shock absorber SD M14x1-2 11004988 ZA intermediate stop ZA-CS 25 50224670 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 25–60 ... - Page 26 Design and description You will find more information on the accessories for the compact slides on our website www.afag.com. 26 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ...
-
Page 27: Installation, Assembly & Setting
Installation, assembly & setting Installation, assembly & setting This chapter contains specific safety instructions and information regarding proper installation, assembly and setting of the compact slides including their connection to the control unit and the pneumatic system. Safety instructions for Installation & assembly CAUTION Danger of injury when connecting the compact slide to the control unit and the compressed-air system! -
Page 28: Installation & Assembly
When installing in a vertical position, always move the slide to the lowest position before mounting. Fastening possibilities CS 25 Fig. 6 Mounting base screwed through Mounting base below M8 (in each bore) -
Page 29: Tightening Torques For Screws
Installation, assembly & setting 6.2.2 Tightening torques for screws Use screws with the following minimum specifications for mounting: Standard VDI 2230 Screw strength Category 8.8 Surface: Galvanized blue, oiled or greased Thread Tightening torque 1.1 … 1.4 Nm 2.6 … 3.3 Nm 5.2 …... -
Page 30: Connection To The Pneumatic System
Installation, assembly & setting 6.2.3 Connection to the pneumatic system WARNING Danger when connecting to pneumatics! The pneumatic system can pose various hazards that can cause serious or fatal injuries if the work is carried out improperly. Only qualified personnel may work with or on the pneumatic system! ... -
Page 31: Fig. 7 Pneumatic Circuit Diagram Compact Slide
(G1/8) at the rear on the left side of the module. Operating pressure 6 bar (+/- 2) Fig. 7 Pneumatic circuit diagram compact slide Fig. 8 Pneumatic circuit diagram compact slide CS 25 with ZA 1. Compressed air connection 4. Throttle valve 2. Maintenance unit 5. Compact Slide CS 25 3. -
Page 32: Installation Of The Initiator
Installation, assembly & setting Installation of the initiator Inductive initiators can also be mounted on the shock absorber side. Initiators are not included in the scope of delivery (see accessories). Fig. 9 A+B: Holder of inductive initiators Fig. 10 Mounting the inductive initiator How to mount the inductive initiator: 1. -
Page 33: Installation And Adjustment Of The Proximity Switch
Two C-slots are provided on the right-hand side of the CS module for mounting the proximity switches. The end positions are sensed by two proximity switches. We recommend the C-slot sensor (order no.: 50033432) from AFAG. The use of other magneto-resistive C-slot sensors is possible, however, interference with position sensing may result. -
Page 34: Query Sensors
( Chapter 8.3 Troubleshooting). In addition, the ring magnet may be missing or defective. In combination with magnetic field producing modules, interference may occur when using the magnetic sensors. Accessories: Mounting kit: Inductive initiator CS 25 Order no. No. 50242141 34 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0... -
Page 35: Adjustment Of The Shock Absorber
Installation, assembly & setting Adjustment of the shock absorber This chapter contains information on adjusting the shock absorbers ( Chapter 5.3 „Accessories"). NOTICE No liability can be assumed for damages caused by improper work carried out on the compact slides on the part of the operator. 6.6.1 Safety notes for settings WARNING Danger of injury due to uncontrolled movement of the equipment! -
Page 36: Adjusting The Shock Absorbers And Stop Screws
Installation, assembly & setting 6.6.2 Adjusting the shock absorbers and stop screws Maximum damping effect Maximum damper effect is achieved when the shock absorbers are fully turned in (mechanical stop). Fig. 12 Maximum damper effect Reduced damping effect The damping effect is reduced by turning back the shock absorbers. This is suitable for low loads or slow speeds. -
Page 37: End Position Control For Entire Stroke Range
Installation, assembly & setting End position control for entire stroke range The installation kit intended for installation is shown below (order number: 50242140!). Fig. 14 Mounting the proximity switch in the ZA module 1 x Special fixing screws M6 1 x Lock nut 1 x Clamping sleeve The screw head serves as a reference. -
Page 38: Sequence Of The Intermediate Position
Installation, assembly & setting Sequence of the intermediate position 6.8.1 Sequence of intermediate positions during extension Positions Pressure on Description P1 Slide (rear) Catch switched on P4 P1 Slide (rear) Catch switched off P3 P2 Slide moves to intermediate position Catch switched off... -
Page 39: Sequence Of Intermediate Positions During Retraction
Installation, assembly & setting 6.8.2 Sequence of intermediate positions during retraction Positions Pressure on Description P1 Slide (rear) Catch switched off P4 P2 Slide moves forward Catch switched off P4 P2 Slide front Catch switched off ... -
Page 40: Za Intermediate Stop (Option)
Installation, assembly & setting ZA intermediate stop (option) 6.9.1 ZA intermediate stop - Overview The installation set of the ZA intermediate stop consists of the following parts: 1 x ZA intermediate stop 3 x Fastening screws 3 x Centering sleeves ... -
Page 41: Mounting The Za Intermediate Stop On The Cs Module
Installation, assembly & setting 6.9.2 Mounting the ZA intermediate stop on the CS module Procedure: 1. Remove the front SD holder (Fig. 18, short) on the CS module. 2. Fasten the SD holder (Fig. 18, long) of the ZA installation set with screws. 3. -
Page 42: Fine Adjustment Of The Stop Screw With Shock Absorber
Installation, assembly & setting 6.9.3 Fine adjustment of the stop screw with shock absorber Clamping for sleeve Lock nut SD ASSD Fig. 20 Fine adjustment stop screw Fine adjustment of the stop screw: The fine adjustment can be set on the stop screw/shock absorber SD. 1. -
Page 43: Adjustment To Other Action Direction
Installation, assembly & setting Adjustment to other action direction 6.10.1 Set the ZA-Catch to a different action direction The basic setting on the ZA intermediate stop is factory-set for retraction of the CS module. If the ZA intermediate stop is to be used for extension, the ZA-Catch must be changed over. -
Page 44: Dismantle Za-Catch
Installation, assembly & setting 6.10.3 Dismantle ZA-Catch The procedure for turning the catch with the linkage on the piston rod in the other acting direction is described below. Cylinder Catch and linkage Fig. 22 Illustration of ZA-Catch with cylinder Procedure for change over: 1. -
Page 45: Commissioning
Commissioning Commissioning This chapter contains information on how to commission the compact slides. After connection to the pneumatic system and mounting of the sensors, the compact slides are commissioned for the first time via the system control. Safety instructions for commissioning CAUTION Danger of injury by moving components! Limbs can be crushed by moving components! -
Page 46: Preparations For Commissioning
Commissioning Preparations for commissioning P1: Compr. air (extended) P2: Compr. air (retracted) 1a 6 Fig. 23 Installation and adjustment of the compact slide 1a/b Clamping screw 4. Slide Shock absorber 5. SD-holder Stop sleeve 6. Insert bar Procedure: 1. Connect compressed air to P1 (Fig. 23, P1) (slide extend). 2. -
Page 47: Commissioning Of The Modules
Commissioning Commissioning of the modules Before commissioning, first adjust the stop screws so that the traversing path is delimited. Then adjust the sensors. Air connections Fig. 24 Commissioning the compact slides Proceed carefully and follow the instructions step by step when commissioning the modules for the first time: 1. -
Page 48: Fault Elimination
Table Fault causes and remedy The following table contains an overview of possible fault causes and how to proceed to eliminate them. Defective components must be replaced exclusively by Afag original spare parts. Fault Possible cause Remedy: The compact slide strikes ... -
Page 49: Maintenance And Repair
Maintenance and repair Maintenance and repair General notes The compact slides are almost maintenance-free. Nevertheless, some maintenance work must be carried out to ensure an optimum operating condition of the compact slide. This chapter describes the required maintenance activities. Each compact slide is accompanied by a safety information sheet. This information sheet must be read carefully by every person who carries out work on and with the compact slide. -
Page 50: Maintenance Activities And Maintenance Intervals
Maintenance and repair Maintenance activities and maintenance intervals 9.3.1 Overview of the maintenance points Fig. 25 Maintenance points Compact slide (CS 25) System Interval Maintenance point Maintenance work Remarks [On/Off] Compact Slide Cleaning As required [Off] Clean the compact slide with a dry, lint-free cloth. -
Page 51: Compressed Air Specifications
Maintenance and repair 9.3.2 Compressed air specifications The compact slides are lifetime lubricated and can be operated with lubricated or non-lubricated compressed air. Before operating the compact slide with oil-free compressed air, make sure that the module has never been operated with oil-lubricated compressed air! Compressed air specification Dry (condensation-free) Filtered (40 μm filter for lubricated air) -
Page 52: Further Maintenance
After the official warranty period has expired, wear parts can be replaced by the customer. Other defective module parts may only be replaced by Afag! Please note that Afag does not assume any warranty for compact slides that have not been replaced or repaired by Afag! 9.4.2 Safety instructions... -
Page 53: Decommissioning, Disassembly, Disposal
Decommissioning, disassembly, disposal 10 Decommissioning, disassembly, disposal The compact slide must be properly dismantled after use and disposed of in an environmentally friendly manner. Safety instructions for decommissioning, disassembling and disposal WARNING Risk of injury due to improper decommissioning, disassembly and disposal! Improperly carried out activities can result in considerable material damage and serious injury. -
Page 54: Disposal
Decommissioning, disassembly, disposal Disposal The compact slide must be disposed of properly at the end of their service life and the raw materials used must be recycled. Observe the legal regulations and company requirements. The compact slide must not be disposed of as a complete unit. Dismantle the compact slide and separate the various components according to type of material and dispose of them properly: ... -
Page 55: Declaration Of Incorporation
Product description Compact Slide (pneumatic) Type: CS 25/60, CS 25/120, CS 25/180, CS 25/240 Consecutive serial no. 50XXXXXX complies with the following essential health and safety requirements of the Machinery Directive 2006/42/EC at the time of declaration: 1.1; 1.1.1; 1.1.2; 1.2.3; 1.3.3; 1.3.6; 1.3.7.1.4.1; 1.5; 1.6; 1.6.1; 1.6.2; 1.6.4; 1.7;... - Page 56 Index Index Assembly ............27 Obligations and liability ........10 Obligations of the operating company ....10 Obligations of the personnel ......11 Changes & Modifications ........12 Operator ............11 Commissioning of the modules ......45 Compressed air specification ......51 Packaging ............
- Page 57 Mounting base screwed through Mounting base below M8 ............28 Fig. 7 Pneumatic circuit diagram compact slide ..................31 Fig. 8 Pneumatic circuit diagram compact slide CS 25 with ZA ............... 31 Fig. 9 A+B: Holder of inductive initiators ....................32 Fig. 10 Mounting the inductive initiator......................
- Page 58 58 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ...
- Page 59 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 59–60 ...
- Page 60 60 – 60 Assembly instructions EN CS25 Date 01.06.2021 Version 3.0 ...
