Fits:
TFX2521 - Ram 6.5' 2002-2017

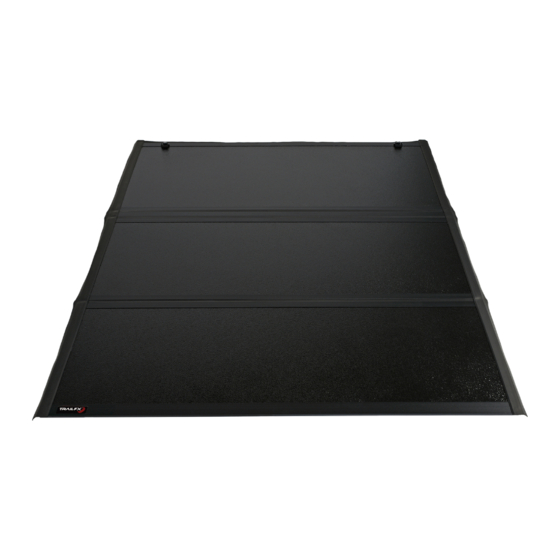

THE TRAILFX TRI-FOLD TONNEAU COMES FULLY ASSEMBLED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. A TORQUE WRENCH IS NOT NECESSARY.
IF PREFERRED, TORQUE IS APX 75 INCH LBS.
Qty
1
Hard Folding Cover
2
Driver (Left) Mounting Rail
3
Passenger (Right) Mounting Rail
4
Drain Tubes (x2)
5
Clamps (x6)
6
Star Knobs (x4)
7
Lock Washers (x4)
Ratchet & 1/2" Socket
Page 1 of 7
Tri-Fold Tonneau Cover
PARTS LIST OF COMPONENTS
Part Description
Qty
8
Flat Washers (x4)
9
Front Mounting Retainer (x4)
10
Front Mounting Bolts (x4)
11
Rubber Filler Strips (x6)
Components
Tools Required
www.TrailFX.com
30-60 min
Cutting Not Required
support@trailfx.com
1 866 638 4870
LIMITED LIFETIME WARRANTY
KS-N2
Part Description
Drilling Not Required
Rev 041015
Advertisement
Related Manuals for TrailFX Tonneau
Summary of Contents for TrailFX Tonneau
- Page 1 Fits: TFX2521 - Ram 6.5’ 2002-2017 30-60 min Cutting Not Required Drilling Not Required THE TRAILFX TRI-FOLD TONNEAU COMES FULLY ASSEMBLED. support@trailfx.com REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. 1 866 638 4870 LIMITED LIFETIME WARRANTY READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE Dodge 2002-2008 and all Colorado/Canyon - Stick each one of the rubber ller strips to the bed rail, adjacent to each rail spacer (black piece with clamp written on it), prior to installing the mounting rail. Tip : Lay the cover mount- ing rail on top of the truck bed rail, drain tube towards the cab, to help indicate position of the ller strips.
- Page 3 Warning - Be sure Front ap is over the bulkhead Front Flap Cover Bulkhead 6 & 7. Assemble the four retainer clamps, slide each of them into the track on the underside of the tonneau, slide into position, but do not tighten at this time. Page 3 of 7...
- Page 4 8. Carefully unfold the cover. Position the cover so it is centered side to side and front to back on the truck bed. 9. Test the rear latching assembly for smooth operation as this is the best indicator of the cover being posi- tioned correctly.
- Page 5 12 & 13. Once in the open position double check the clamp engagement to the side rail and tighten. Test the cover again for proper operation, adjust as needed, then tighten the star knobs. 14. Attach the drain tubes to the ttings at the front of the bed rail and position the tubes to divert water out of the truck bed.
- Page 6 OPERATION INSTRUCTIONS 1 & 2. To open the cover: Lower the tailgate and pull the cable. While pulling on the cable lift the panel up and towards the cab. 3, 4 & 5. Release the strap from the stowed position by squeezing the tabs. Attach the buckle at the bulk-...
-
Page 7: Product Care
The repaired or replaced tonneau will be in warranty for the remainder of the original warranty period. 1. How di cult is it to install the tonneau cover? Installing of tonneau cover is easy, please follow the steps in installation manual carefully.
