Fits:
2001-Current
Chevrolet Silverado/GMC Sierra 1500 Crew Cab
2001-Current
Chevrolet Silverado/GMC Sierra 2500/3500 Crew Cab
Excl. C/K "Classic"
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Center Support Bracket
1
Passenger/Right Center Support Bracket
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
Passenger/Right rear
Mounting Bracket
Passenger/Right center
Support Bracket
Passenger/Right front
Mounting Bracket

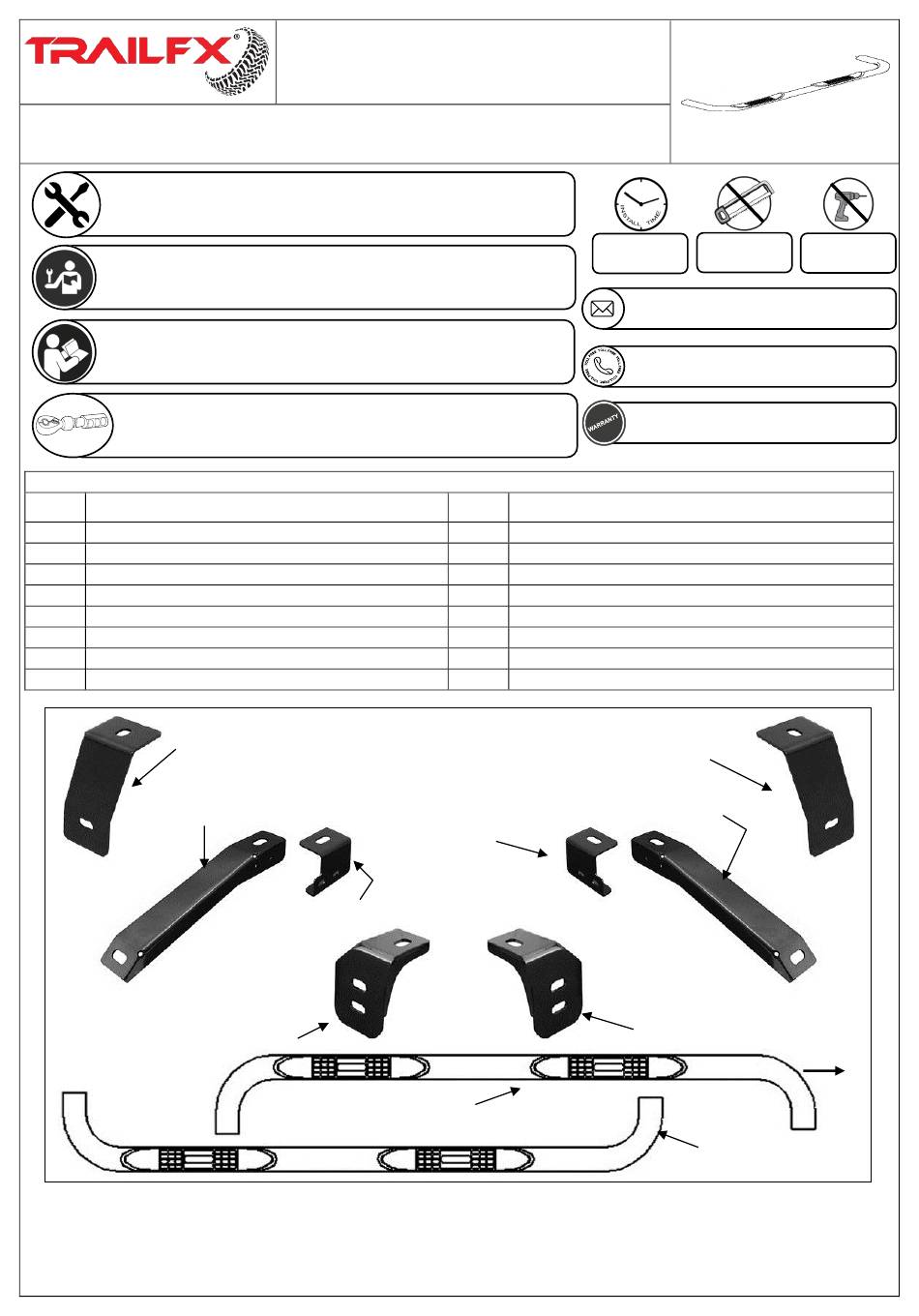

Page 1 of 6
Part No. A0031S/B
Part Description
Passenger/Right
center Mounting
Bracket
Driver/Left Sidebar

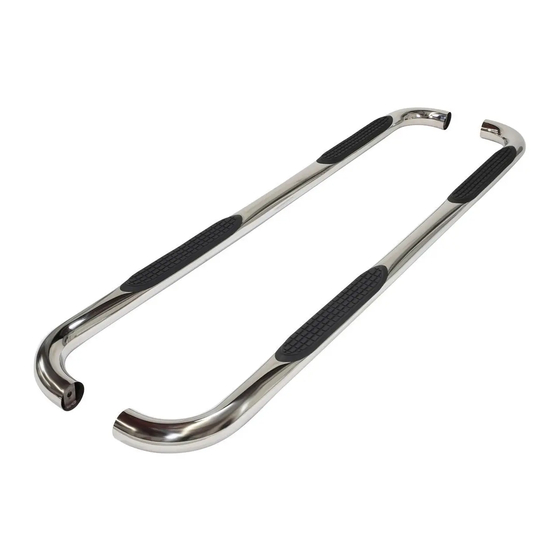

3" Nerf Bar
PARTS LIST:
Qty
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1/2" x 2" Hex Bolts
4
1/2" Lock Washers
4
1/2" x 1-1/2" OD x 1/8" Large Flat Washers
4
6
8-1.25mm x 25mm Hex Bolts
6
8mm Lock Washers
6
8mm x 24mm x 2mm flat washer
Driver/Left center
Mounting Bracket
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left rear
Mounting Bracket
Driver/Left center
Support Bracket
Driver/Left front
Mounting Bracket
Passenger/Right Sidebar
www.TrailFX.com
Drilling Not
Required
Front
Rev 022718
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A0031S/B
Summary of Contents for TrailFX A0031S/B
- Page 1 3" Nerf Bar Part No. A0031S/B Fits: 2001-Current Chevrolet Silverado/GMC Sierra 1500 Crew Cab 2001-Current Chevrolet Silverado/GMC Sierra 2500/3500 Crew Cab Excl. C/K “Classic” Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 2 IMPORTANT ALERT: GM uses a very strong thread-locking compound on all body bolts. Use of an air assisted impact ratchet can cause damage to the threads on factory body mount bolts and the internal nut assembly because of this thread locking compound.
-
Page 3: Installation
INSTALLATION PROCEDURE: ASSISTANCE IS RECOMMENDED. Start installation on the front, driver side of the vehicle. Remove the front body mount bolt, (Figure 1). Select the driver side front Mounting Bracket, (Figure 2A). Insert the factory body mount bolt through the Mounting Bracket, factory washer if equipped and up into the mount. - Page 4 Driver side installation pictured Factory Front body bolt Front (Fig 2B) Driver/left Front Bracket installed (Fig 3) Driver/left center and rear body mounts Mounting 2014-on 1500 models only Bracket (Mounting Bracket not required) Factory body bolt All model years...
- Page 5 Driver side installation pictured Factory body bolt 1/2” x 2” Hex Bolt 1/2” Lock Washer 1/2” Flat Washer Rear (Fig 5B) Driver/left rear Bracket Front (Fig 6) Driver/left front Bracket Front 8mm x 25mm Hex Bolt 8mm Lock Washer...
-
Page 6: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
