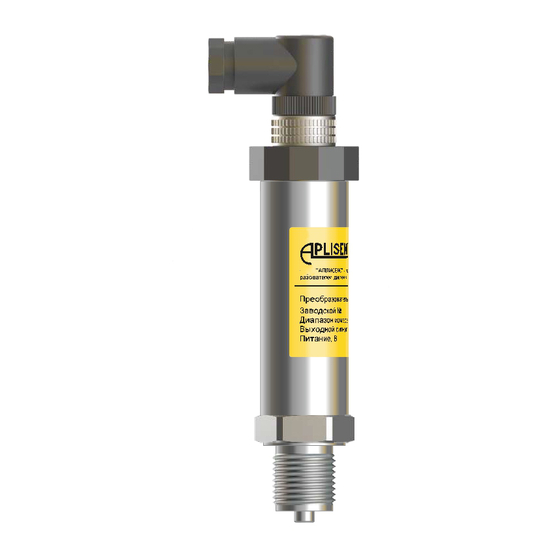

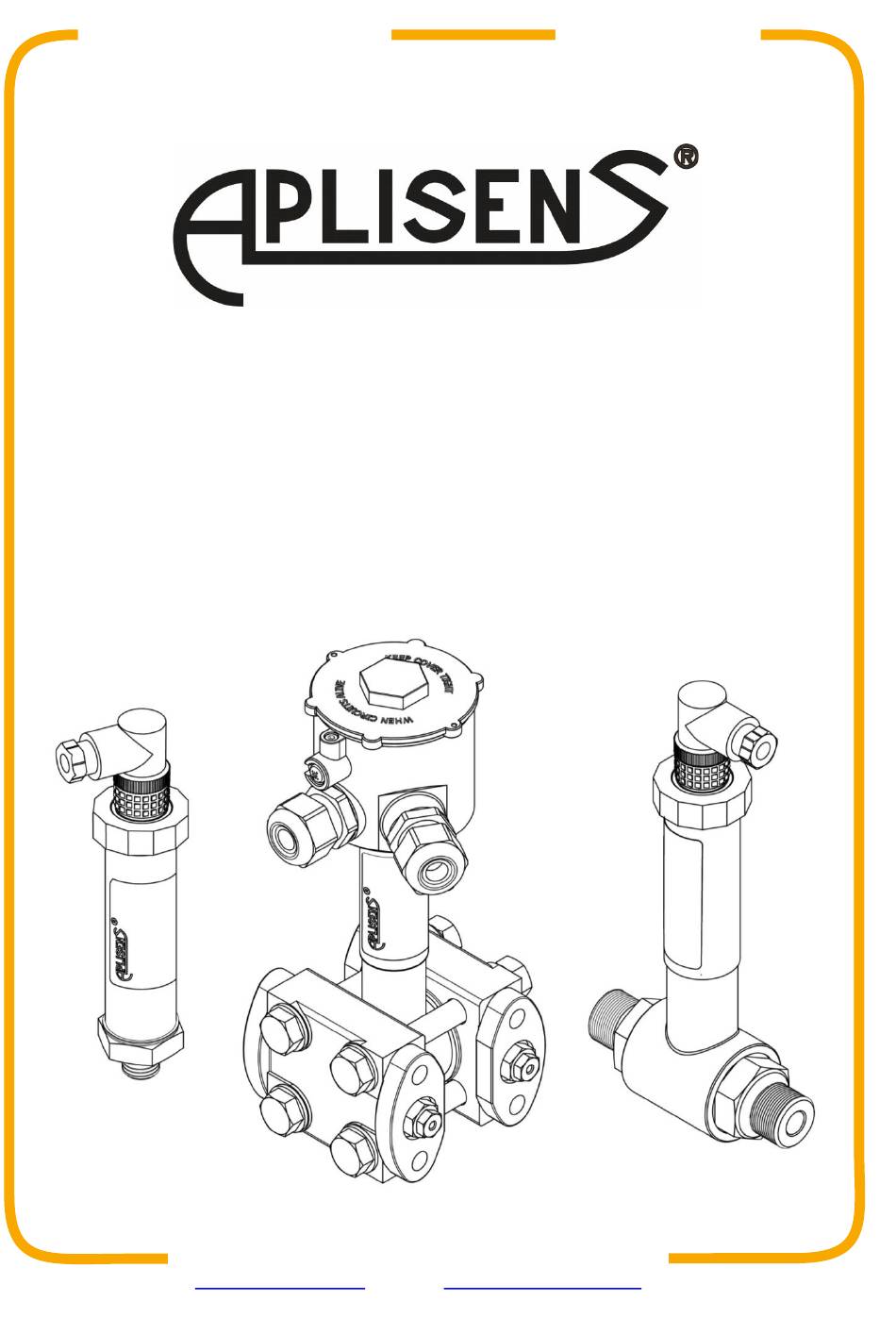

- Page 1 EN.IO.PCE.PRE.28.MODBUS Revision 01.A.001 SEPTEMBER 2021 USER’S MANUAL SMART PRESSURE AND DIFFERENTIAL PRESSURE TRANSMITTERS PCE-28.MODBUS PRE-28.MODBUS APLISENS S.A., 03-192 Warsaw, Morelowa 7 St. tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 PCE-28.MODBUS ID: 0032 0001 0001 0000 0000 0000 0001 16 https://www.aplisens.pl/ID/003200010001000000000000000116/ PCE-28.MODBUS (Exi) ID: 0032 0002 0001 0000 0000 0001 0001 33 https://www.aplisens.pl/ID/003200020001000000000001000133/...
- Page 3 PRE-28.MODBUS ID: 0037 0001 0001 0000 0000 0000 0001 98 https://www.aplisens.pl/ID/003700010001000000000000000198/ PRE-28.MODBUS (Exi) ID: 0037 0002 0001 0000 0000 0001 0001 18 https://www.aplisens.pl/ID/003700020001000000000001000118/...
- Page 4 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer’s website: www.aplisens.com.
-
Page 5: Table Of Contents
EN.IO.PCE.PRE.28.MODBUS TABLE OF CONTENTS 1. INTRODUCTION ..................7 1.1. Purpose of the document .................... 7 2. SAFETY ...................... 7 3. TRANSPORT AND STORAGE ..............8 3.1. Delivery check ......................8 3.2. Transport ........................8 3.3. Storage ........................8 4. GUARANTEE ....................8 5. - Page 6 EN.IO.PCE.PRE.28.MODBUS LIST OF DRAWINGS Figure 1. Diagram of connecting the transmitters in the MODBUS network......13 LIST OF TABLES Table 1. Symbols occurring on the transmitter nameplate............9 Table 2. Connection, output signals..................11 Table 3. Permissible transmitter supply voltages..............11 Table 4.
-
Page 7: Introduction
EN.IO.PCE.PRE.28.MODBUS INTRODUCTION 1.1. Purpose of the document The subject of manual are smart pressure transmitters PCE-28.MODBUS, smart differential pressure hereinafter referred jointly to as the transmitters transmitters PRE-28.MODBUS . The manual ap- plies to the following versions: standard and intrinsically safe Exi. -
Page 8: Transport And Storage
3.1. Delivery check After receiving the delivery, please refer to the general terms and conditions of contracts available on the manufacturer website: https://aplisens.com/ogolne_warunki_umow.html. 3.2. Transport Transport of transmitters shall be carried out with the use of covered means of transport, in original packages with diaphragm provided with protection. -
Page 9: Identification
EN.IO.PCE.PRE.28.MODBUS IDENTIFICATION 5.1. Manufacturer’s address APLISENS S.A. 03-192 Warsaw Morelowa 7 St. Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 1. Symbols occurring on the transmitter nameplate. -
Page 10: Installation
EN.IO.PCE.PRE.28.MODBUS INSTALLATION 6.1. General recommendations It is recommended that in case of a gaseous medium, the transmitters should be installed above the measuring point so that condensate may flow to the point from which the meas- ured pressure is collected, while in case of liquid medium or steam, it should be installed below the point of pressure intake. -
Page 11: Electrical Connection
MODBUS Exi version for PCE- 10.5 V DC 15.8 V DC 28.Modbus16 and PRE-28.MODBUS16 - current for Modbus mode < 3,6 mA for PCE-28.Modbus and PRE-28.Modbus; - current for Modbus mode < 23 mA for PCE-28.Modbus16 and PRE-28.Modbus16. Revision 01.A.001/2021.09... -
Page 12: Specifications Of Electrical Switching Terminals
"Digital" A and B outputs by means of a jumper (Aplisens PP Modbus boxes are factory-made equipped with a 120 Ω resistor). When connect- ing products with the MODBUS RTU output signal, it is convenient to use appropriate junction boxes. -
Page 13: Equipotential Bonding
EN.IO.PCE.PRE.28.MODBUS Figure 1. Diagram of connecting the transmitters in the MODBUS network. 7.3. Equipotential bonding In the case of using a cable in the screen, connect the screen on one side at the transmitter’s power supply point. The transmitter in intrinsically version should be powered from a galvanically separated power source or, if this is not possible, equipotential bonding of the transmitter and the power supply device should be ensured by means of equipotential bonding conductors. -
Page 14: Overvoltage Protection
(which are not protected by diodes connected between the line wires), additional protection is applied in the form of gas surge arresters. Additionally, an external protective device can be used, e.g. the UZ-2 system by APLISENS or others. 7.5. Final inspection of cabling After completing the electrical installation of the transmitter it is necessary to check the following: −... -
Page 15: Operation
EN.IO.PCE.PRE.28.MODBUS OPERATION 9.1. MODBUS register layout Read-only data. Bytes Address Register Purpose Notes Format (hex) (2 bytes per register) % of the controlled 0x0000 User specific IEEE754 4 bytes (2 registers) set range Pressure or level 0x0002 Pressure of sensor 1 IEEE754 4 bytes (2 registers) process variable... -
Page 16: Pressure Unit Codes
EN.IO.PCE.PRE.28.MODBUS 9.2. Pressure unit codes Table 4. A binary value assigned to the corresponding pressure unit. Unit Value (decimal) Unit Value (decimal) mbar O (w 4°C) mmH2O g/cm² O (w 4°C) O (w 4°C) mmHg InHg kg/cm² mbar torr 9.3. Modbus status register description SV,TV,FV out of PV out of limit... -
Page 17: Maintenance
EN.IO.PCE.PRE.28.MODBUS 10. MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, the condition of the pressure (absence of loosened elements and leaks) and electrical (check of con- nections reliability and condition of gaskets and glands) connectors, condition of separating diaphragms (tarnish, corrosion) and stability of fixing of the housing and mounting bracket (if used) shall be checked. -
Page 18: Scrapping, Disposal
EN.IO.PCE.PRE.28.MODBUS 11. SCRAPPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufacturer. 12. HISTORY OF REVISIONS Revision Document revision Description of changes Initial document version. Replaces the revision 1_01.D.011_2020-01. -
Page 19: Explosion-Proof Device Manual En.ix.pce.pre.28.Modbus
Transmitters PCE-28.Modbus, PRE-28.Modbus with PK, PKM, PKD, PM12, SG, SGM, PZ connection. Minimum transmitters supply voltage 4 V DC. - Page 20 EN.IO.PCE.PRE.28.MODBUS EN.IX.PCE.PRE.28.MODBUS - for power supply with rectangular and trapezoidal characteristics: Ui ≤ 5 V, Ii ≤ 0.4 A b) Permissible input and output parameters for RS485 transmission (blue VA, yellow VB): Ui ≤ 10 V, Ii ≤ 0.2 A, Uo ≤ 10V*, Io ≤ 0.4 A* * the output parameters of the transmitters Uo, Io are equal to the output parameters Uo, Io of the power supply used.
- Page 21 EN.IO.PCE.PRE.28.MODBUS EN.IX.PCE.PRE.28.MODBUS Fig. Type of PK, PKD, SG, PM12 connection. Fig. Type of PZ, PZ2 connection. Revision 01.A.001/2021.09...
- Page 22 EN.IO.PCE.PRE.28.MODBUS EN.IX.PCE.PRE.28.MODBUS Fig. Diagram of connecting the transmitters in the MODBUS network in Exi version. The PCE/PRE-28.Modbus16 transmitter with PZ, PZ2 type electrical connection has a 560Ω resistor, which can be used as a line/bus terminator. Switching on the resistor can be done using the DIP 1- position switch by switching to the ON position.
- Page 23 EN.IO.PCE.PRE.28.MODBUS EN.IX.PCE.PRE.28.MODBUS 5. Special conditions for safe use 1. The transmitters do not meet the insulation test (500 V rms) required by EN 60079 11:2012. This must be taken into account during installation of the device. ➔Table Z1 2. For the ambient temperature range, see as well as the information on the transmit- ters rating plate.
