EN.IX.APC.APR.ALW
Revision 01.A.005
-
AUGUST 2020

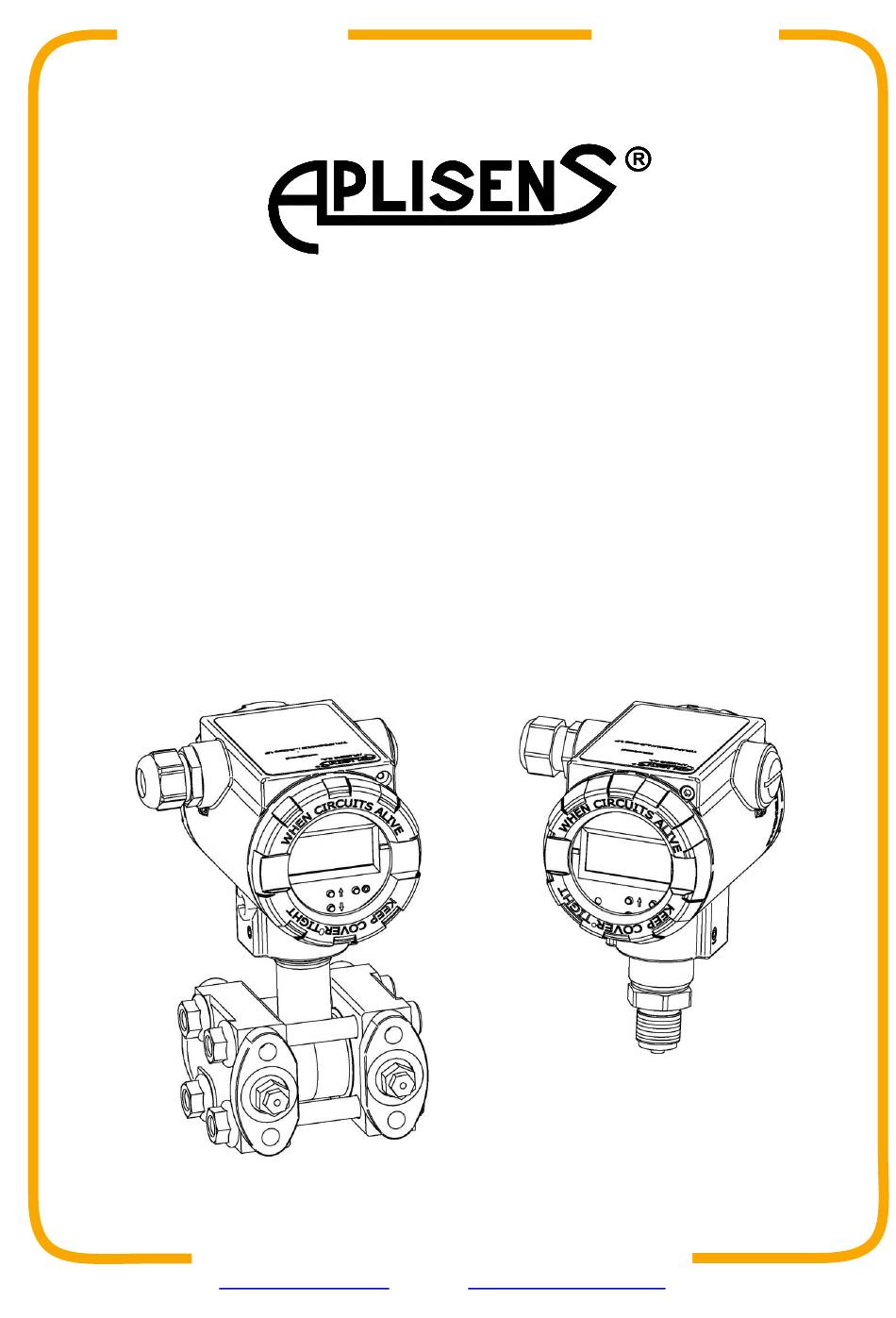

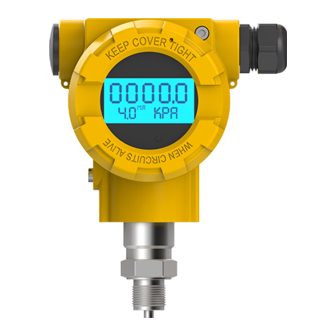

EXPLOSION-PROOF DEVICE MANUAL
SMART PRESSURE TRANSMITTERS
APC-2000ALW, APC-2000ALW SAFETY, APC-2000ALW/L
SMART PRESSURE DIFFERENTIAL TRANSMITTERS
APR-2000ALW, APR-2000ALW SAFETY,
APR-2000ALW with diaphragm seals,
APR-2000ALW/G, APR-2000ALW/L, APR-2200ALW/L
SMART LEVEL PROBES
APR-2000YALW
APLISENS S.A., 03-192 Warsaw, Morelowa 7 St
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.com, e-mail:
export@aplisens.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aplisens APC-2000ALW/L
Summary of Contents for Aplisens APC-2000ALW/L
- Page 1 SMART PRESSURE DIFFERENTIAL TRANSMITTERS APR-2000ALW, APR-2000ALW SAFETY, APR-2000ALW with diaphragm seals, APR-2000ALW/G, APR-2000ALW/L, APR-2200ALW/L SMART LEVEL PROBES APR-2000YALW APLISENS S.A., 03-192 Warsaw, Morelowa 7 St tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 Explosion-proof installations should be made with special care and in accordance with standards and regulations applicable to this type of installations. Changes can be made in the manufacturing before the paper version of user documentation is updated. Up-to-date user manuals are available on the manufacturer's website: www.aplisens.com.
-
Page 3: Table Of Contents
EN.IX.APC.APR.ALW TABLE OF CONTENTS 1. INTRODUCTION ..................5 2. SAFETY ....................... 5 3. COMPLETE DELIVERY CHECKLIST ............5 4. IDENTIFICATION MARKS................6 5. TRANSMITTER DESIGN ................6 6. ELECTROSTATIC HAZARDS ..............7 7. SPECIAL CONDITIONS OF USE ..............7 8. - Page 4 EN.IX.APC.APR.ALW LIST OF DRAWINGS Figure 1. Sample transmitter nameplate with common Exi and Exd designation ....6 Figure 2. Transmitter installation in potentially explosive areas..........8 Figure 3. Principle of power supply from a linear source............12 Figure 4. Principle of power supply from a trapezoidal source..........12 Figure 5.
-
Page 5: Introduction
Product Certificate, which also constitutes a warranty card. b) Declaration of Conformity. c) Certificate copy (on request). d) EN.IX.APC.APR.ALW explosion-proof device manual. e) EN.IO.APC.APR.ALW.SFT user manual or EN.IO.APC.APR.ALW user manual. Items b), c), d), e) are available at www.aplisens.com. Revision 01.A.005/2020.08... -
Page 6: Identification Marks
EN.IX.APC.APR.ALW IDENTIFICATION MARKS. Ex transmitters are delivered with a nameplate which contains data specified EN.IO.APC.APR.ALW.SFT or EN.IO.APC.APR.ALW and also the following: a) Designation of explosion-proof design type, certificate number. b) Parameter values, e.g. Ui, Ii, Ci, Li for Exi transmitters. c) Year of manufacture. -
Page 7: Electrostatic Hazards
EN.IX.APC.APR.ALW ELECTROSTATIC HAZARDS The paint, plastic nameplate and diaphragm seals coated with PTFE form a non-conducting layer applied on a conducting base of enclosure or diaphragm seals. Transmitters with this design in a dust-explosion zone should be installed in a place where electrostatic charging is impossible, in particular by contact with electrically charged dust falling off or blown from neighboring devices. -
Page 8: Transmitter Protection Level (Epl) And Hazardous Areas
EN.IX.APC.APR.ALW TRANSMITTER PROTECTION LEVEL (EPL) AND HAZARDOUS AREAS Ga/Gb (Da/Db) EPL protection level means that the transmitter can be installed in Zone 1 (21) or 2 (22), and transmitter process connectors can connect to Zone 0 (20). Gb (Db) EPL protection level means that the transmitter and process connector can be installed in Zone 1 (21) or 2 (22). -
Page 9: Certificates Kdb 19 Atex 0011X And Iecex Kdb 19.0003X
EN.IX.APC.APR.ALW INTRINSICALLY-SAFE Exi TRANSMITTERS ACCORDING TO CERTIFICATES KDB 19 ATEX 0011X AND IECEX KDB 19.0003X 9.1. Standards used for assessment The transmitters are manufactured in compliance with the following standards: EN 60079-0:2012+A11:2013 (IEC 60079-0:2011 ed. 6.0) EN 60079-11:2012 (IEC 60079-11:2011 ed. 6.0). 9.2. -
Page 10: Minimum Supply Voltage
The following ATEX and IECEx markings apply only to intrinsically safe transmitters marked with the type and model ID: APC-2000ALW ID 0005 0007 ..., APR-2000YALW ID 0009 0007 ..., APR-2000ALW ID 0006 0007 ..., APC-2000ALW/L ID 0010 0007 ..., APR-2000ALW/G ID 0008 0007 ..., APR-2200ALW/L ID 0012 0007 ..., APR-2000ALW APR-2000ALW/L ID 0011 0007 ...,... -
Page 11: Minimum Supply Voltage
EN.IX.APC.APR.ALW IECEx: Ex ia IIC T4/T5 Ga/Gb Ex ia IIB T4/T5 Ga/Gb (version with PTFE-shielded cable) Ex ia IIIC T105ºC Da Ex ia I Ma (for the version with 1.4401 (316) steel enclosure) IECEx FTZU 14.0026X As standard, the transmitters are manufactured for explosive gas atmospheres. A customer can also order a transmitter for explosive dust atmospheres and for mining applications. -
Page 12: Linear Power Supply Example
EN.IX.APC.APR.ALW 11.1. Linear power supply example For example, linear power supply is provided by a typical barrier with the following parameters Uo = 28V; Io = 0.1A; Po = 0.7W; Rw = 280. Figure 3. Principle of power supply from a linear source. 11.2. -
Page 13: Connecting Exi Transmitters And Probes
EN.IX.APC.APR.ALW An example of power supply in practice: A stabilized power adapter with Uo = 24 V, “ib” protection level and current limited to Io = 25 mA. CONNECTING Exi TRANSMITTERS AND PROBES Transmitter and equipment in the transmitter measurement loop must be connected in compliance with intrinsic safety and explosion proofing standards and conditions for application in risk zones. -
Page 14: Flameproof Exd Transmitters According With
EN.IX.APC.APR.ALW “Version SA” transmitters should be supplied from devices equipped with galvanically isolated power supply. If galvanically isolated power supply is not possible, the transmitter or metal parts connected to it should be properly grounded, for instance with an equipotential wiring or an equipotential bonding between the transmitter and the negative pole of power supply barrier. -
Page 15: Permissible Parameters Of Exd Transmitters
EN.IX.APC.APR.ALW ATEX: II 1/2G Ex ia/db IIC T6/T5 Ga/Gb II 1/2D Ex ia/tb IIIC T105ºC Da/Db I M2 Ex db ia I Mb (for the version with 1.4401 (316) steel enclosure) KDB 19 ATEX 0011X II 2G Ex ia/db IIC T6/T5 Gb II 2D Ex ia/tb IIIC T105ºC Db I M2 Ex db ia I Mb (for the version with 1.4401 (316) steel enclosure) -
Page 16: 14.2. Power Supply, Connection And Operation Of Exd Transmitters
EN.IX.APC.APR.ALW 14.2. Power supply, connection and operation of Exd transmitters Connect the transmitter according to the wiring diagram ( ). The transmitter Figure 6 electrical connections in potentially explosive zones should be made by personnel having necessary knowledge and experience in this respect. The transmitters should be properly grounded by means of a grounding terminal. - Page 17 Table 6. List of equivalent cable entries. As a blinding plug, an Aplisens plug supplied with the transmitter or a certified blinding plug compliant with the list of equivalent blinding plugs in Table 6 can be used.
-
Page 18: Table 6. List Of Equivalent Cable Entries
EN.IX.APC.APR.ALW Figure 7. Installation of cable entries and blinding plugs Table 6. List of equivalent cable entries Cable entry type Manufacturer Thread Designation Certificate no. Hawke M20x1.5 Exd IIC Gb 501/423 International (1/2” NPT) Extb IIIC Db 19ATEX1167X Hawke M20x1.5 Exd IIC Gb 501/421 International... -
Page 19: Transmitters Explosion-Proofing Designations According With Certificates Kdb
EN.IX.APC.APR.ALW Table 7. List of equivalent blinding plugs Plug type Manufacturer Thread Designation Certificate no. Exd IIC Gb Hawke M20x1.5 Baseefa Extb IIIC Da International (1/2” NPT) 10ATEX0262X Exd I Mb Exd IIC Gb Hawke M20x1.5 Baseefa Extb IIIC Da International (1/2”... -
Page 20: Table 8. List Of Flameproof Joints In A Flameproof Enclosure
EN.IX.APC.APR.ALW Figure 8. Flameproof joints of enclosure. Table 8. List of flameproof joints in a flameproof enclosure Length of joint Diameter Comments (min. actual) Quantity (min. values acc. to [mm] of joint [mm] [mm] EN 60079-1) [mm] +0,027 13.2 ᴓ15 −0.040 0.097 length of joint min.12,5... -
Page 21: Additional Information
EN.IX.APC.APR.ALW Due to possible damage, the transmitter should be protected from heating above 80ºC also when explosion hazard does not occur. ADDITIONAL INFORMATION 15.1. Additional information The manufacturer reserves the right to introduce structural and technological changes to the device, which does not deteriorate its performance. 15.2.
