DTR.APCE.APRE.02
(ENG)
APLISENS
MANUFACTURE OF PRESSURE TRANSMITTERS
AND CONTROL INSTRUMENTS
USER'S MANUAL

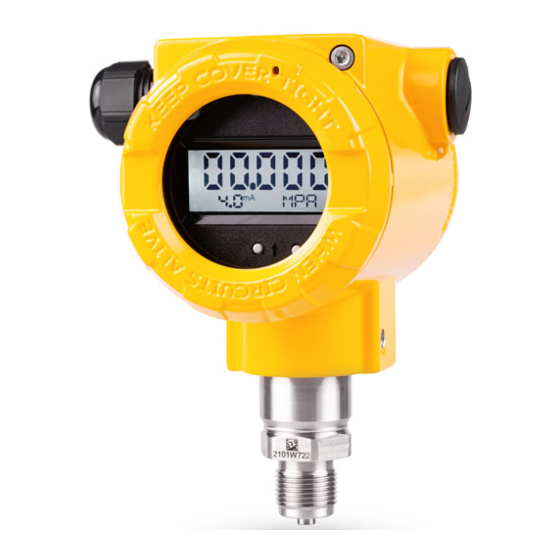

SMART PRESSURE TRANSMITTER
type: APCE-2000, APCE-2000G
SMART DIFFERENTIAL PRESSURE TRANSMITTER
type:
APRE-2000, APRE-2200, APRE-2000G
Edition D4
WARSAW FEBRUARY 2019
APLISENS S.A. 03-192 Warszawa, ul. Morelowa 7
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.pl, e-mail: aplisens@aplisens.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APCE-2000 and is the answer not in the manual?

Questions and answers
