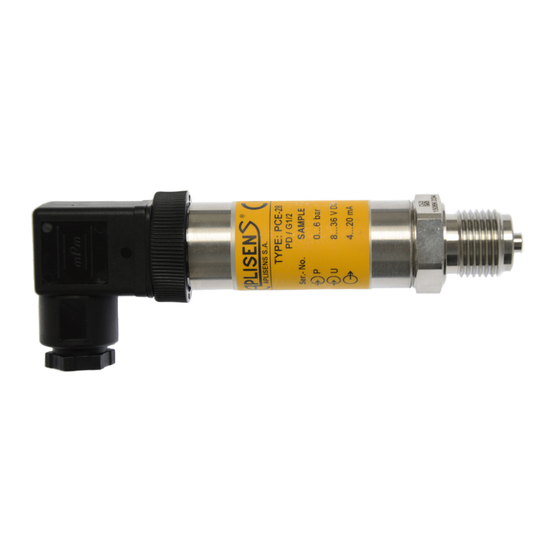

Aplisens PCE-28 User Manual

Pressure transmitters differerential pressure transmitters hydrostatic level probes
Hide thumbs Also See for PCE-28:
Table of Contents

Advertisement

Quick Links

Download this manual
EN.IO.PCE.PRE.28
AUGUST 2021
PRESSURE TRANSMITTERS
DIFFERERENTIAL PRESSURE TRANSMITTERS
AND HYDROSTATIC LEVEL PROBES
APLISENS S.A., 03-192 Warsaw, Morelowa 7 St.
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.com, e-mail:
USER'S MANUAL
PCE-28
PRE-28
PCE-28P
export@aplisens.com
Revision 01.A.001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-28 and is the answer not in the manual?

Questions and answers

Related Manuals for Aplisens PCE-28

Summary of Contents for Aplisens PCE-28

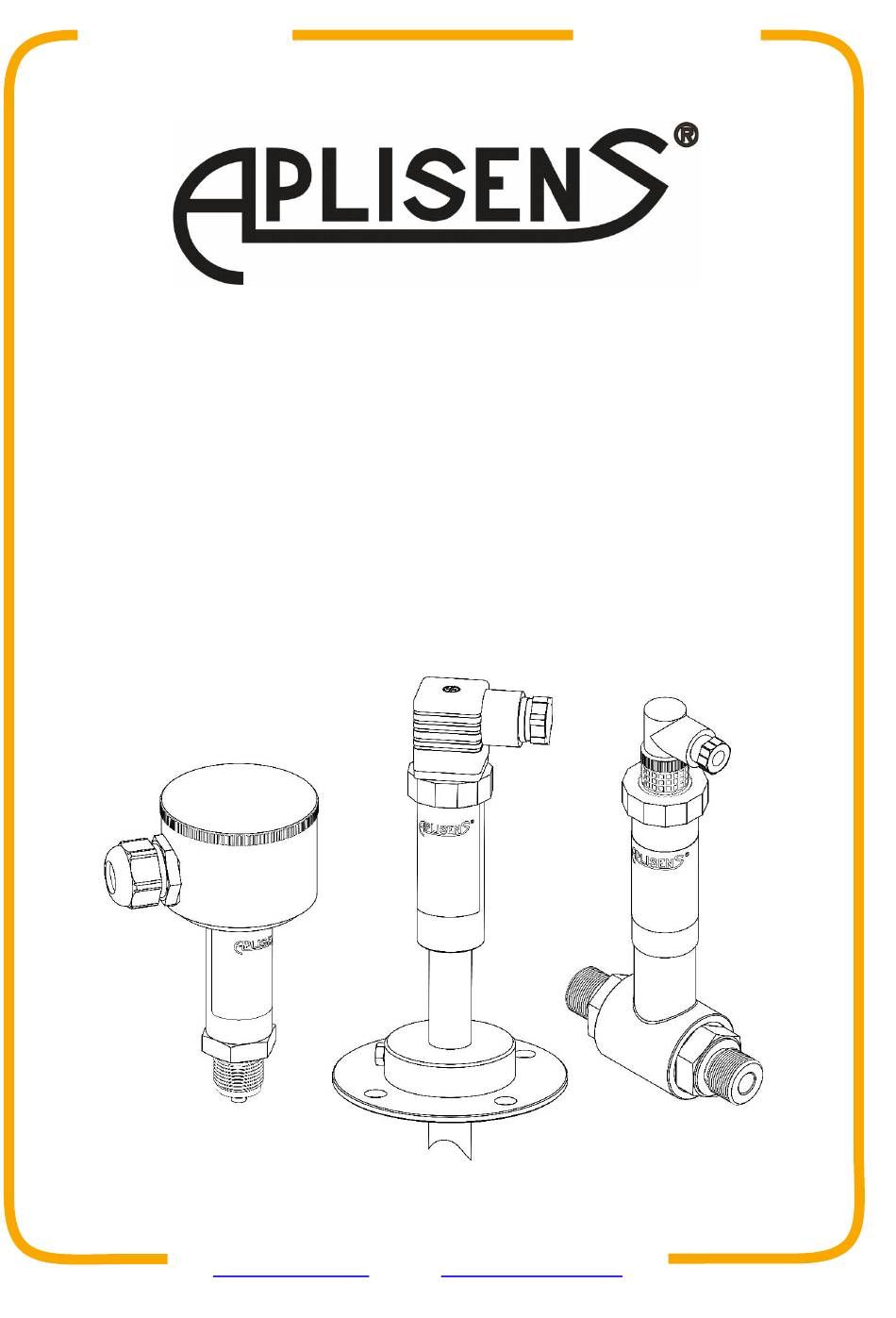

  • Page 1 Revision 01.A.001 AUGUST 2021 USER’S MANUAL PRESSURE TRANSMITTERS PCE-28 DIFFERERENTIAL PRESSURE TRANSMITTERS PRE-28 AND HYDROSTATIC LEVEL PROBES PCE-28P APLISENS S.A., 03-192 Warsaw, Morelowa 7 St. tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
  • Page 2 The QR code or ID number identifies the transmitter and provides quick access to the following documentation on the manufacturer’s website: user’s manual, declarations of conformity and copies of certificates. PCE-28 https://www.aplisens.pl/ID/003000010000000000000000000147/ ID: 0030 0001 0000 0000 0000 0000 0001 47 PCE-28 (Exi) https://www.aplisens.pl/ID/003000020000000000000001000164/ ID: 0030 0002 0000 0000 0000 0001 0001 64 PRE-28 https://www.aplisens.pl/ID/003500010000000000000000000132/...
  • Page 3 PCE-28P https://www.aplisens.pl/ID/005400010000000000000000000172/ ID: 0054 0001 0000 0000 0000 0000 0001 72 PCE-28P (Exi) https://www.aplisens.pl/ID/005400020000000000000001000189/ ID: 0054 0002 0000 0000 0000 0001 0001 89...
  • Page 4 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer’s website: www.aplisens.com.

  • Page 5: Table Of Contents

    EN.IO.PCE.PRE.28 TABLE OF CONTENTS 1. INTRODUCTION ..................7 1.1. Purpose of the document ....................... 7 2. SAFETY ...................... 7 3. TRANSPORT AND STORAGE ..............8 3.1. Delivery check ........................8 3.2. Transport ..........................8 3.3. Storage ..........................8 4. GUARANTEE ....................8 5.
  • Page 6 EN.IO.PCE.PRE.28. I. APPENDIX Ex.01 ..................20 II. APPENDIX Ex.02 ..................25 LIST OF DRAWINGS Figure 1. Rotation of the housing, change of display position and access to buttons......14 Figure 2. Display information fields....................15 Figure 3. Backlighting jumper view at transmitter electric board (unit display back side)....15 Figure 4.

  • Page 7: Introduction

    Vibrations: B; EMC: B; Enclosure: C. The transmitters: PCE-28, PCE-28P, PRE-28 in realization for sea uses are complied with Bureau Ver- itas (BV) for Classification of Ships, High Speed & Light Craft acc. to the requirements of NR320 for HBV products).

  • Page 8: Transport And Storage

    Transmitters and probes shall be stored in a factory packaging, in a room without vapours and aggres- sive substances, protected against mechanical impact. Allowable range of storage temperature: • PCE-28 -40 ... 80°C (-40…176°F); • PRE-28 -25 ... 80°C (-13…176°F);...

  • Page 9: Identification

    EN.IO.PCE.PRE.28 IDENTIFICATION 5.1. Manufacturer’s address APLISENS S.A. 03-192 Warsaw Morelowa 7 St. Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 1. Symbols appearing on the transmitter's nameplate...

  • Page 10: Installation

    EN.IO.PCE.PRE.28. INSTALLATION 6.1. General recommendations It is recommended that in case of a gaseous medium, the transmitters should be installed above the measuring point so that condensate may flow to the point from which the meas- ured pressure is collected, while in case of liquid medium or steam, it should be installed below the point of pressure intake.

  • Page 11: Electrical Connection

    The terminal box must not be completely airtight, as the transmitter must be able to “breathe” through a capillary in the connector cable. It is recommended to use a Aplisens S.A. PP terminal box. 7.1.4. Connection of transmitters with ALW, ALM type connector Electrical connections transmitters equipped with ALW type or ALM type connector is the same as connecting transmitters with connectors PD or PM12, depending on the ordered version.

  • Page 12: Specifications Of Electrical Switching Terminals

    SGM, PM12 connection, ALW, ALM Additionally, an external protective device can be used, e.g. the UZ-2 system by APLISENS or others. 7.4. Shielding, equipotential bonding In the case of using a cable in the screen, connect the screen on one side at the point where the transmitter is powered.

  • Page 13: Transmitter Power Supply

    − PCE-28P/TR** * Turning on the display backlight in the PCE-28 converters with ALW and ALM type connectors increases the ➔ minimum supply voltage for all versions by 3 V. The way to turn the backlight on or off is shown in Figure 3 ** TR- design for Pressure measurements in fast changing processes.

  • Page 14: Start-Up

    EN.IO.PCE.PRE.28. START-UP The basic data of the transmitter and probe can be read out from its nameplate (➔ Transmitter identi- fication). Use the transmitter within the allowable pressure limits. Risk of injury due to component break- age after exceeding the maximum permitted operating pressure. 8.1.
  • Page 15 EN.IO.PCE.PRE.28 The LCD has three primary information fields identified in the figure below as LCD1, LCD2, LCD3. Figure 2. Display information fields. LCD1 field - display field of current or guidance percent preset range display. Depending on the display configuration will be displayed the current value of the current line 4…20 mA with a resolution 0.1 mA, or percent guidance the preset range with a resolution of indications 1%.

  • Page 16: Local Buttons

    EN.IO.PCE.PRE.28. Abbreviations of physical units of pressures and levels and their description: INH2O inches of water column with tempera- KGSQCM kilograms per square centimeter. ture of 0°C. pascals. INGH inches of mercury column with temper- kilopascals. ature of 0°C. TORR torrs.

  • Page 17: Navigation In Local Setpoints Menu

    EN.IO.PCE.PRE.28 9.3. Navigation in local setpoints MENU The MENU can be accessed by pressing and holding any of the buttons for at least 4 seconds. After this time, the LCD3 field of the local display will show an EXIT message. This signals entering into the local configuration MENU.

  • Page 18: Maintenance

    EN.IO.PCE.PRE.28. 10. MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, the condition of the pressure (absence of loosened elements and leaks) and electrical (check of con- nections reliability and condition of gaskets and glands) connectors, condition of separating diaphragms (tarnish, corrosion) and stability of fixing of the housing and mounting bracket (if used) shall be checked.

  • Page 19: Scrapping, Disposal

    EN.IO.PCE.PRE.28 11. SCRAPPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufac- turer. 12. HISTORY OF REVISIONS Revision Document revision Description of changes Revision F/2018.02 Introduction of the directive ROHS editorial changes.
  • Page 20 INTRINSICALLY SAFE VERSION acc. to ATEX and IECEx. 1. Introduction The “Appendix Ex.01” to EN.PCE.PRE-28.02 applies to PCE-28/XX/YY, PCE-28P/XX/YY and PRE-28/XX/YY transmitters in intrinsically safe version according to ATEX and IECEx marked on the rating plate as shown in p. 2. Extensions XX, YY after the marking product types apply to the types of pressure (XX) and electrical (YY) connections and will not occur later in the documentation.
  • Page 21 At the customer's request, elements of diaphragm seal can be made of titanium. This version of the transmitter has information on the label that the titanium elements are used (e.g. PCE-28/S-Ch titan/PD). Then user should secure the diaphragm seal against the possi- bility of an impact.
  • Page 22 5. How to connect Ex transmitters Ex: PCE-28, PCE-28P and PRE-28 Connections of the transmitter and devices in the transmitter measuring loop should be made in accordance with the intrinsic safety and explosion-proof standards and the con- ditions of use in hazardous areas.
  • Page 23 EN.IO.PCE.PRE.28 APPENDIX Ex.01 Figure 5. Connection of the transmitter with PKD electrical connector. Figure 6. Connection of the transmitter with PM12 electrical connector. Figure 7. Connection of the transmitter with ALW electrical connector. Revision 01.A.001/2021.08...
  • Page 24 EN.IO.PCE.PRE.28. APPENDIX Ex.01 Figure 8. Connection of the transmitter with ALM electrical connector. It is not allowed to repair or otherwise interfere with the transmitter’s electrical circuits in any way. Damage and possible repair can be assessed and done by the manufactures or another authorised party only.
  • Page 25 INTRINSICALLY SAFE VERSION acc. to ATEX KDB 08ATEX002X 1. Introduction The “Appendix Ex.01” to EN.IO.PCE.PRE.28 applies to PCE-28/XX/YY, PCE-28P/XX/YY and PRE-28/XX/YY transmitters in Ex version according to ATEX marked on the rating plate as shown in p. 2 and 3 and signed “Ex” in the Product Certificate, only.
  • Page 26 (e.g. PCE-28 / TR / S-Ch titanium / PD). In this case, the user is obliged to protect the separator against the possibility of impact.
