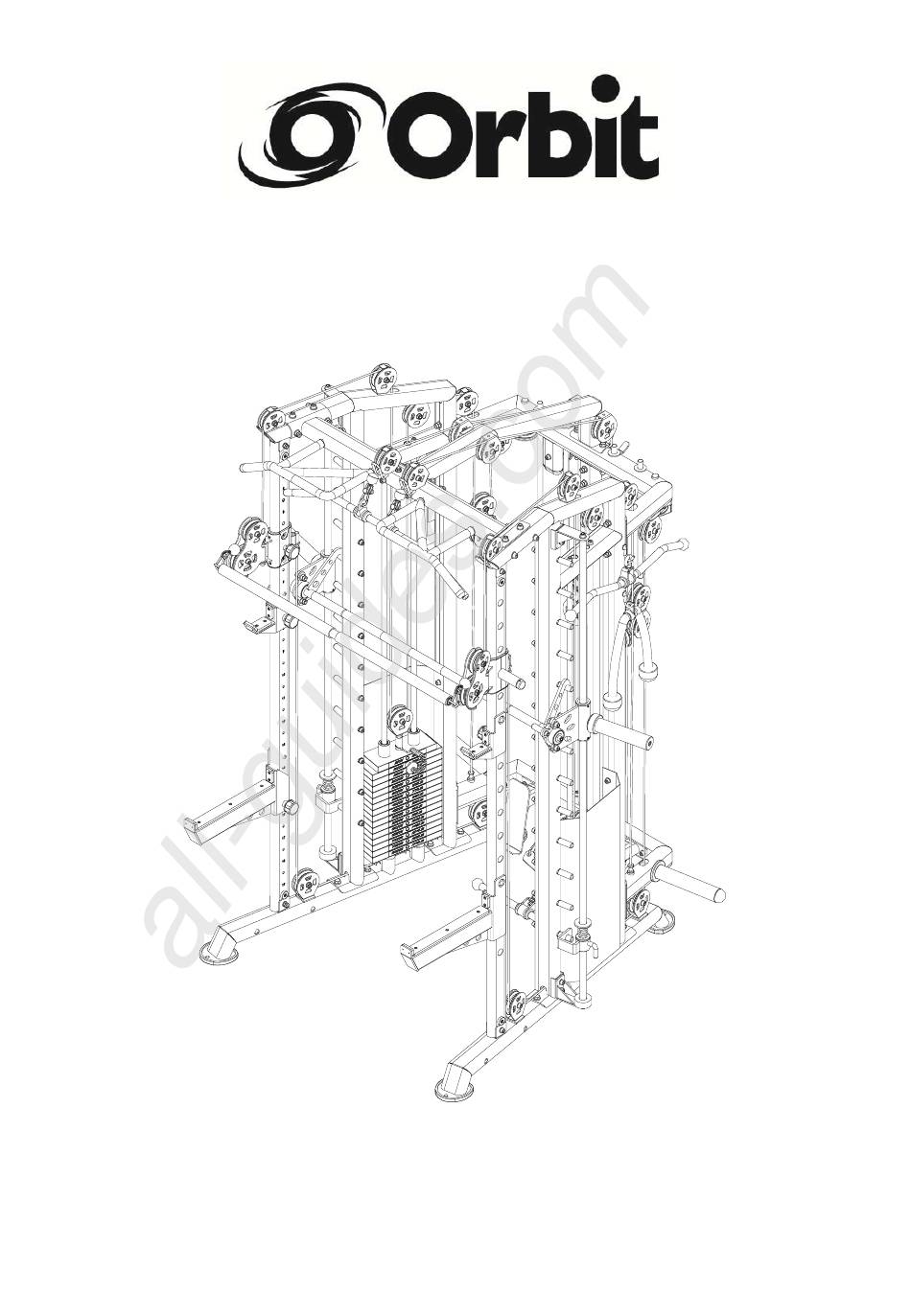

- Page 1 All manuals and user guides at all-guides.com AF1005 Deluxe Smith/Functional training/Power cage combo CAUTION! Read all precautions and instructions in this manual before using this equipment.
- Page 2 All manuals and user guides at all-guides.com ASSEMBLY MANUAL BEFORE YOU START Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided. Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.
- Page 3 All manuals and user guides at all-guides.com...
- Page 4 All manuals and user guides at all-guides.com...
- Page 5 All manuals and user guides at all-guides.com...
- Page 6 All manuals and user guides at all-guides.com PART LIST NUMBER DESCRIPTION QUANTITY RIGHT BASE FRAME LEFT BASE FRAME UPRIGHT PLATE SUPPORT TUBE (When used 55KG) RIGHT UPRIGHT LEFT UPRIGHT ADJUSTABLE PART LAT PLATE RIGHT SAFETY HOLDER LEFT SAFETY HOLDER RIGHT J HOOK LEFT J HOOK UNDER CONNECTION UPPER CONNECTION...
- Page 7 All manuals and user guides at all-guides.com BODY BAR EYEBOLTS NYLON BUSHING OP BAR BAR HOLDER HOOK U HOOK POWER BAND PEGS SMALL RUBBER PAD RUBBER PAD COPPER BUSHING PULLEY BLOCK CURVED HANDLE ROPE HANDLE RINGS LOW ROW BAR LAT BAR HOLLOW SLEEVE ANKLE STRAP FOOT PAD...
- Page 8 All manuals and user guides at all-guides.com BOLT M10×35 + WASHER BOLT M12×35 + TWO WASHERS + LOCK NUT BOLT M12×30 + BIG WASHER BOLT M10×50 + TWO WASHERS + LOCK NUT BOLT M10×90 + TWO WASHERS + LOCK NUT BOLT M10×50 + WASHER BOLT M10×185 + TWO WASHERS + LOCK NUT BOLT M12×30...
- Page 9 All manuals and user guides at all-guides.com STEP 01 1． Attach RIGHT UPRIGHT (5) to RIGHT BASE FRAME (1) with four bolt assemblies (81). 2． Attach LEFT UPRIGHT (6) to LEFT BASE FRAME (2) with four bolt assemblies (81).
- Page 10 All manuals and user guides at all-guides.com STEP 02 Attach RIGHT IRON SHELL (21) to RIGHT UPRIGHT (5) with three bolt assemblies (84). Attach LEFT IRON SHELL (22) to LEFT UPRIGHT (6) with three bolt assemblies (84). Attach REAR BASE FRAME (15) and REAR UPRIGHT (16) to UNDER CONNECTION (13) with two bolt assemblies (83).
- Page 11 All manuals and user guides at all-guides.com STEP 03 U HOOK TOP CONNECTION 1. Attach (52) to (18) with two bolt assemblies (88). TOP CONNECTION RIGHT UPRIGHT LEFT UPRIGHT 2. Attach (18) to (5) and (6) with four bolt assemblies (82) and four bolt assemblies (85). REAR UPRIGHT TOP FRAME UPPER CONNECTION...
- Page 12 All manuals and user guides at all-guides.com STEP 04 ROTATABLE AXIS ROTATABLE PULLEY BLOCK ROTATABLE 1. Attach (35) to each (33), attach PULLEY BLOCK ADJUSTABLE PART (33) to each (7) with two bolt assemblies (89), and attach ADJUSTABLE PART UPRIGHT FAST PINS (7) to each (3) with two...
- Page 13 All manuals and user guides at all-guides.com STEP 05 SHORT GRAB BARS RIGHT UPRIGHT LEFT UPRIGHT 1. Attach thirteen (41) to (5) and (6) with SHORT GRAB BAR RIGHT RETAINER twenty-six bolt assemblies (92). Attach (41) to (38) with bolt assembly (93).
- Page 14 All manuals and user guides at all-guides.com STEP 06 RIGHT HANDLE LEFT HANDLE TOP CONNECTION Attach (27) and (28) to (18) with four bolt assemblies (95). FOOTBOARDS UNDER CONNECTION Attach two (26) to (13) with four bolt assemblies (82). ROUND BARS UNDER CONNECTION Attach two (31) to...
- Page 15 All manuals and user guides at all-guides.com STEP 07 ROTATABLE PULLEY BLOCK Attach PULLEY (75) and BIG PULLEY (76) to (33) with two bolt assemblies (96). Attach two PULLEYS (75) to each DOUBLE PULLEY BLOCK (20) with two bolt assemblies (96). RIGHT BASE FRAME Attach two PULLEYS (75) to (1) with two bolt assemblies (96).
- Page 16 All manuals and user guides at all-guides.com STEP 08 Attach CABLE WITH TWO BALL (73), the no ball end of the cable from A-B-C-D-E-F-G-H-I-J-K-L-M-N, and then attach the cable parts to the cable. Attach CABLE WITH NO BALL (74), attach one end of the cable to ADJUSTABLE PART (7), another UNDER CONNECTION...
- Page 17 All manuals and user guides at all-guides.com STEP 09 RIGHT SAFETY HOLDER & LEFT SAFETY HOLDER RIGHT J HOOK & LEFT Attach (9&10) and J HOOK UPRIGHT FAST PINS (11&12) to each (3) with four (67). BODY BAR CURVED HANDLE HOIST Attach (46) and...
- Page 18 All manuals and user guides at all-guides.com STEP 10 WEIGHT LABELING 1. Attach (106) to TOP WEIGHT (102) and all WEIGHTS (103).
- Page 19 All manuals and user guides at all-guides.com STEP 11 If you only need to use the heavy 55KG, please remove five WEIGHTS (103) and insert PLATE SUPPORT (4) at the bottom of (24). TUBES GUIDE ROD EXPLODED DRAWING...
- Page 20 All manuals and user guides at all-guides.com...
