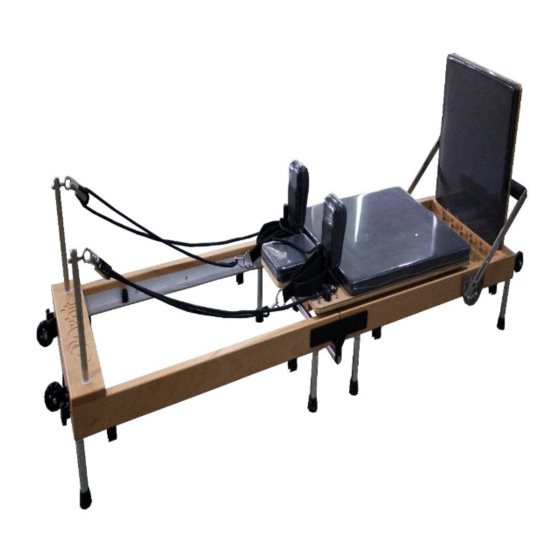

- Page 1 Orbit NJH1 Foldable Pilates Reformer ASSEMBLY INSTRUCTION MANUAL...
- Page 2 Do not exercise on the machines if signs of excessive wear, loose hardware or other defects are evident. • Do not attempt to fix a defective machine, notify Orbit Health and Fitness Service department at service@orbitfitness.com.au or call 08-62413021. Care and maintenance You can extend the life of your upholstery by keeping it clean and free of dirt, oil, and perspiration.
- Page 3 Parts ITEM ITEM Reformer Base Frame Ropes Reformer Carriage Double Loop Straps Reformer Legs Transport Wheel w/Screws Jump Board Pulley Risers Shoulder Rests Installation • Remove the lid of the heavy duty carton and take out all components and accessories. •...
- Page 4 Metal legs come already attached to the main frame Unclip f rom cradle and slot 「 into place to secure Next, place the Jump board into position at the end of frame, by slotting it into the main frame and then tighten with two black knobs.
- Page 5 Insert the two pulley risers into the two holes on standing plate, next to Orbit logo. Twist to secure until the pulleys face the carriage. Install the shoulder pads onto the carriage using the two metal rods supplied.
- Page 6 Fit the transport wheels onto the end of the base frame as shown in diagram, using the hardware provided. This will enable you to move the reformer around once it’s folded. Now your reformer should be ready to go! To fold away your Reformer, detach all springs and ropes from the carriage to the base frame, then remove the carriage off its track.
