OSP610 Apex II Spin Bike
OSP610
Owner's Manual OSP610
CAUTION:
1. Weight on this product should not exceed 240lbs / 110kgs.
2. Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied
as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
IMPORTANT: Read all instructions carefully before using this product. Retain this product
owner's manual for future reference.
OSP610
OSP610
OSP610
• Warranty
• Assembly
• Parts
TOOLS REQUIRED
FOR ASSEMBLY:
- Adjustable Wrench
- Pliers
- Hammer
240 lbs/110 kgs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Orbit Apex II OSP610
Summary of Contents for Orbit Apex II OSP610

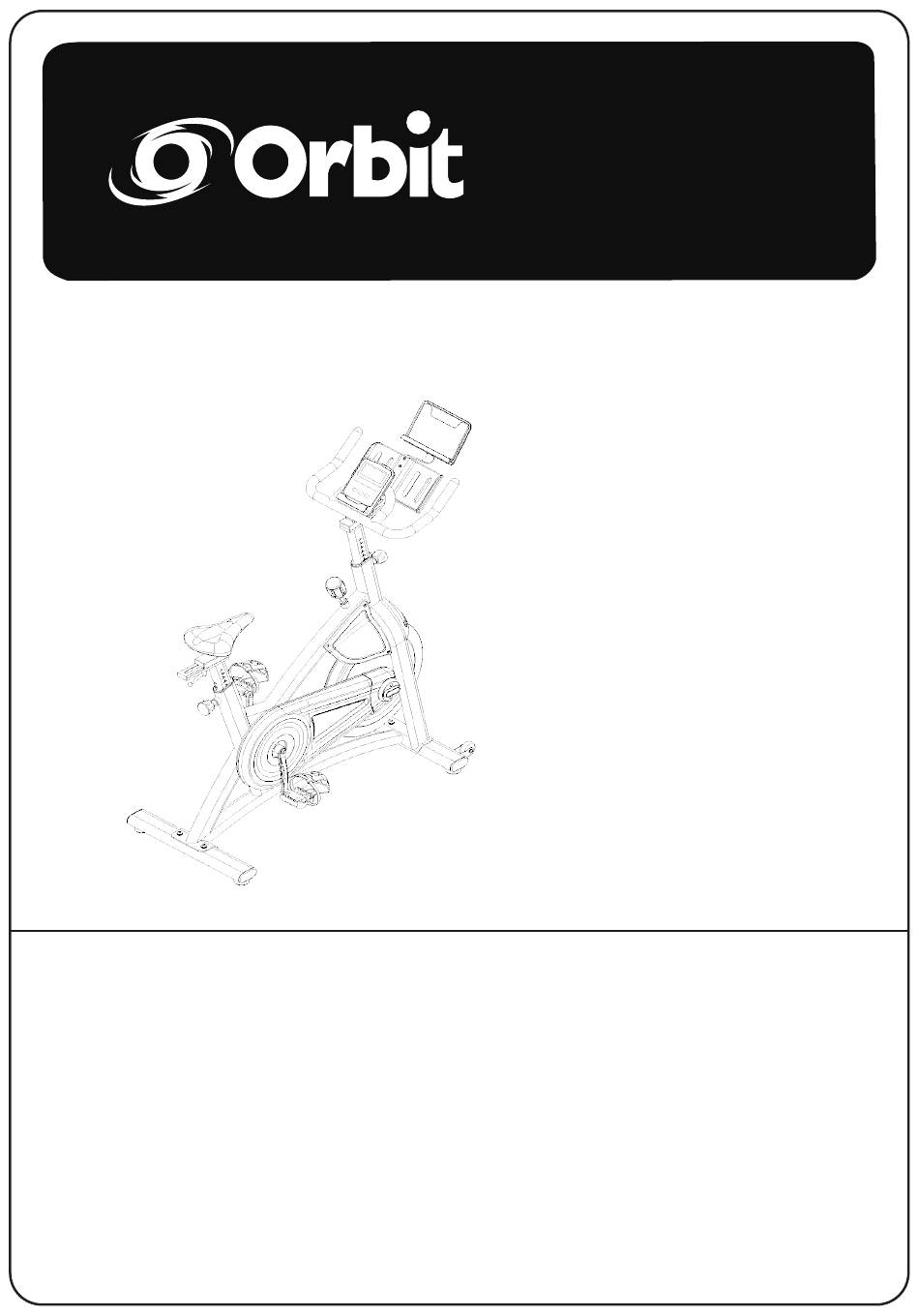

- Page 1 OSP610 OSP610 OSP610 Apex II Spin Bike OSP610 • Warranty • Assembly • Parts TOOLS REQUIRED FOR ASSEMBLY: - Adjustable Wrench - Pliers - Hammer OSP610 Owner’s Manual OSP610 240 lbs/110 kgs. CAUTION: 1. Weight on this product should not exceed 240lbs / 110kgs. 2.
- Page 2 ASSEMBLY ADVICE Dear Customer, Congratulations on your purchase. Please read this instruction manual very carefully before using this item. You will find important information regarding safety of your SPIN BIKE. Note the following precautions before assembling or operating the machine. ASSEMBLY ADVICE Carefully read and understand the Assembly Instructions: •...
- Page 3 WARNINGS READ BEFORE USE Before using this Equipment, Obey the following warnings: • Keep children and pets away from the SPIN BIKE at all times Children should be supervised to ensure that they do not play with the appliance. DO NOT leave unattended children in the same room with the machine. •...
- Page 4 MAINTENANCE INSTRUCTIONS Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do the necessary tasks. Equipment must be regularly examined for damage and wear. The owner is responsible to make sure that regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
- Page 5 MAINTENANCE INSTRUCTIONS TROUBLESHOOTING No Display / Partial Display / Unit will not Turn On: • Check batteries in Console, replace if required, ensure connection to speed sensor is good. • Connection should be secure and undamaged. Replace adapter or connection at unit if either are damaged.
- Page 6 • Frame, Covers, Seat, Seat Post, Seat Slider, Crank Arms, Pedals (with Foot Strap), Handlebar, Adjustment Handles, Belt(or Chain), Axle, Flywheel, Console, Data Cable, Brake or Magnet. See Owners Manual for Part Names and Numbers. Contact the Orbit Fitness Customer Service Department at: Email: service@orbitfitness.com.au Phone: (08) 6241 3050 Address: 28 Fellowship Road Gnangara, Western Australia 6077 Website: www.orbitfitness.com.au...
-
Page 7: Table Of Contents
TABLE OF CONTENT Safety Instructions ………………………………. 2 Beginner’s Guide …………………………………11 Before You Begin …………………………………..3 Transportation Instructions…………………… 12 Equipment Warning, Warning Labels ..………… 4 Computer Instructions..………………..……13-15 Hardware Identification Chart….……..…….. 5 - 6 Product Parts Drawing……………..……………16 General Introduction & Warm Up...……..…..….. 7 Parts List…….………………….……………. -
Page 8: Before You Begin
BEFORE YOU BEGIN Thank you for choosing the SPIN BIKE. We take The SPIN BIKE provides a convenient and simple great pride in producing this quality product and method to begin your journey of getting your body hope it will provide many hours of quality exercise in shape and achieving a happier and healthier to make you feel better, look better, and enjoy life to lifestyle. -
Page 9: Equipment Warning, Warning Labels
EQUIPMENT WARNING, WARNING LABELS This chart is provided to help identify the warning, caution and notice labels on the SPIN BIKE. Please take a moment to familiarize yourself with all of the warning, caution and notice labels. WARNING LABEL Label is larger than actual... -
Page 10: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. length 3/16"... - Page 11 After unpacking the unit, open the hardware bag and make sure that you have all of the following fasteners. Some fasteners may be already attached to the parts. Picture Part No. Description L-Shaped Knob M10x25 Button Head Cap Screw M8x50 Button Head Cap Screw M5x12 Self-Tapping Screw ST4x6 Flat Washer φ10.5x20x2...
-
Page 12: General Introduction & Warm Up
GENERAL INTRODUCTION GENERAL INTRODUCTION & WARM UP BEFORE EXERCISING ON THE SPIN BIKE, PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY. CONSULT YOUR PHYSICIAN ADDITIONAL HELP, ESPECIALLY FOR THOSE WHOSE AGE OVER 30 OR WHO HAVE KNOWN HEALTH PROBLEMS. MAKE SURE TO WARN UP THOROUGHLY AND FOLLOW THE BEGINNER’S GUIDE TO START THE OPERATION ON THE SPIN BIKE. -
Page 13: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1 Attach Front Stabilizer Tube (3) and Rear Stabilizer Tube (2) to Main Frame (1) by using: 4pcs Button Head Cap Screw M10x50 (66) and 4pcs of Flat Washer φ10.5x20x2.0 (85). NOTE: Fully tighten screws at the end of this step. STEP 2 Attach Handlebar (8) to Upright Post Tube (6) by using: 1pc of L-Shaped Knob (21), and 1 pc of Stainless Steel Flat Washer... - Page 14 onto Tablet Holder Support Tube (17) by using: 2 pcs of Self-Tapping Screw ST4x6 (69), and 2 pcs of Flat Washer φ4.5x12x1(87). NOTE: Fully tighten screws at end of this step. STEP 4 Attach Left/ Right Pedals (16L/R) to Left / Right Cranks (19 & 20), and tighten them by using: Open End Wrench (90).
- Page 15 Head Screw M5x10 (41). Then connect Sensor Wire (38) with Monitor Wire (40a). NOTE: Fully tighten screws at end of this step.
-
Page 16: Beginner's Guide
BEGINNER’S GUIDE OPERATION INSTRUCTIONS SEAT POSITION ADJUSTMENT To adjust the seat height, loosen Post Knob (18) and slide Seat Post Tube (4) up or down to the appropriate height position, and then tighten the Post Knob (18). To adjust the seat forward/ backward, loosen L-Shaped Knob (21) and slide Horizontal Seat Post Tube (5) front or back to the appropriate position, and then tighten the L-Shaped Knob (21). -
Page 17: Transportation Instructions
TRANSPORTATION INSTRUCTIONS BEGINNER’S GUIDE Before moving the SPIN BIKE, make sure the Handlebar (8) is tightened. Stand in front of the SPIN BIKE as illustrated below, and hold the Handlebar (8) to tilt the SPIN BIKE toward you until the Transport Wheels (3) touch the ground or floor. Move forward / backward of the SPIN BIKE to the place you like to storage or exercise. -
Page 18: Computer Instructions
COMPUTER INSTRUCTIONS I. BASIC FUNCTIONS POWER ON: Start riding the SPIN BIKE to turn on the monitor, or press any button to activate the monitor. POWER OFF: When there is no activity more than 4 minutes, the monitor will automatically enter sleep mode. You can press any buttons to reactivate the monitor and resume the exercise and the previous training data. - Page 19 BATTERY: Size of battery is AAA type and the monitor requires 2 x AAA batteries. SET (button): Under countdown programs, press this button to increase / decrease the target value setting. Hold this button to automatically increase the data value faster. MODE (button): Press this button to choose different data displayed on the monitor screen.
- Page 20 ODO: Show the total accumulated distance from previous workouts. CALORIES: Display the total calories burned during the workout. Display range: 0 ~ 9999 calories. PULSE: Display the heart rate at any moment during the exercise. To use this function, the user must wear Heart Rate Chest Strap.
- Page 21 PULSE COUNTDOWN: To enter the Pulse Countdown Program, press “MODE” button to show the default PULSE value. To adjust the target calories, press “SET” button to increase the value, and then press “MODE” button again to confirm the value setting. The setting range is 30 ~ 230 beats per minute.
-
Page 22: Product Parts Drawing
PRODUCT PARTS DRAWING 87 36 11 87 10 33 85 67 86 65 80 30 62... -
Page 23: Parts List
PARTS LIST DESCRIPTION Main Frame Rear Stabilizer Tube Front Stabilizer Tube Seat Post Tube Horizontal Seat Post Tube Upright Post Tube Handlebar Adjustment Plate Handlebar Left Brake Right Brake Wolly Brake Base Brake Connection Plate Adjustment Bracket Belt Pulley Feet Pad 16L/R Pedal (Left/ Right) Tablet Holder Support Tube... - Page 24 Sensor Magnet Shaft Bushing φ25.1*φ28.6*31 Flange Bearing F6800ZZ Torsion Spring Magnet ¢25*7 Wolly Brake Wire Plug Sensor Wire Sensor Monitor Monitor Wire Phillips Truss Head Screw M5*10 Front Housing Base Housing Left Cover Right Cover Front Cover Left Flywheel Cover Right Flywheel Cover Seat Cushion Bushing M8...
- Page 25 Transport Wheel Button Head Cap Screw M10*50 Hex Head Cap Screw φ10*40*M8 Button Head Cap Screw M8*70 Self-Tapping Screw ST4*6 Button Head Cap Screw M8*45 Button Head Cap Screw M8*15 Button Head Cap Screw M5*12 Button Head Cap Screw M4*45 Button Head Cap Screw M4*10 Phillips Pan Head Self-Tapping Screw PA4*12 Phillips Pan Head Self-Tapping Screw PA3*12...
