Orbit OBRPR5 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's manual OBRPR5
CAUTION: 1. Weight on this product should not exceed 150kg
2 Exercise of a strenuous nature, as is customarily done on this equipment,
Should not be undertaken without first consulting
No specific health claims are made or implied as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
IMPORTANT: Read all instruction carefully before using this product. Retain this product owner's
manual for future reference.
OBRPR5
• Warranty
• Assembly
• Parts
a
physician.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBRPR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbit OBRPR5

Summary of Contents for Orbit OBRPR5

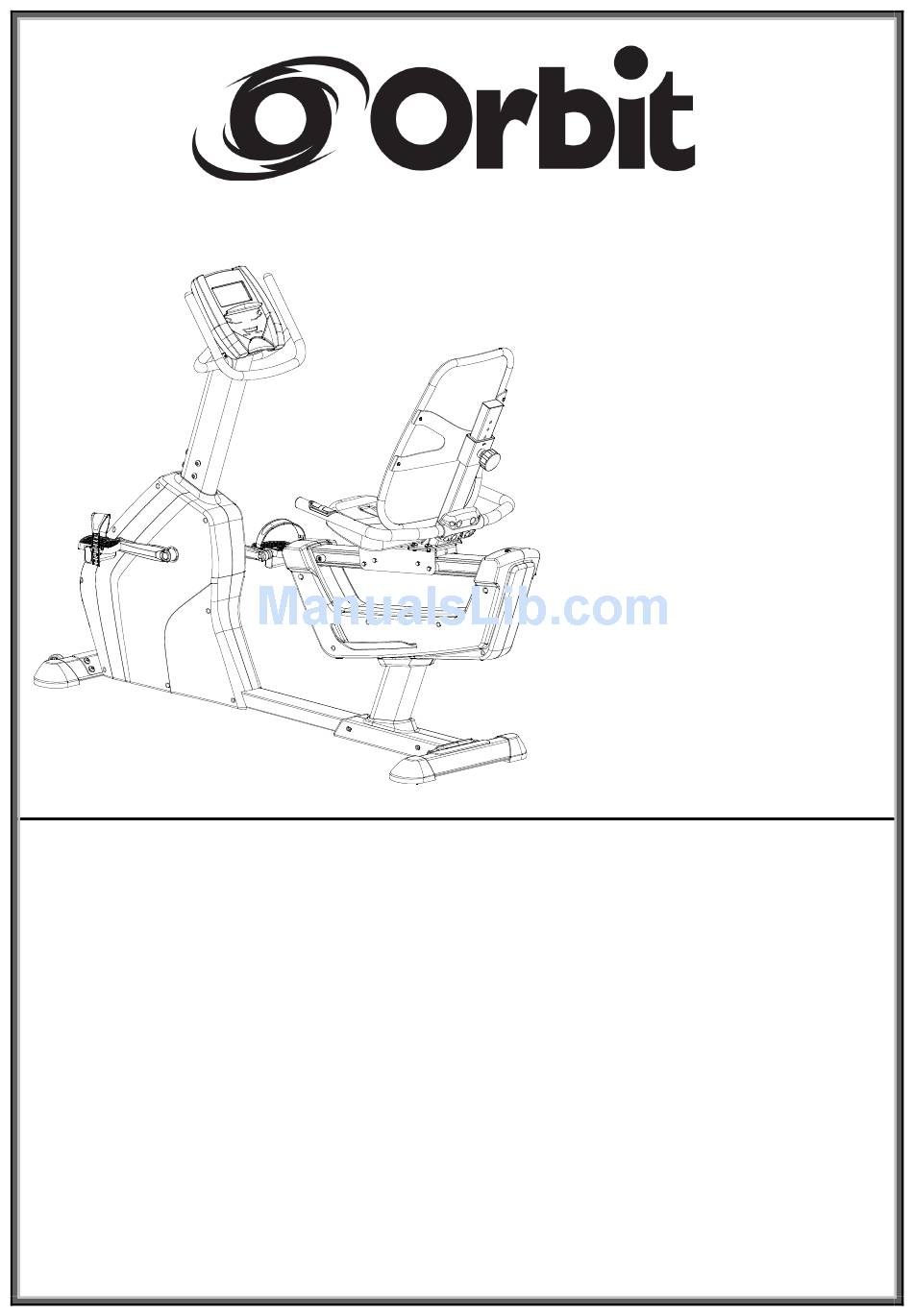

  • Page 1 OBRPR5 • Warranty • Assembly • Parts Owner's manual OBRPR5 CAUTION: 1. Weight on this product should not exceed 150kg 2 Exercise of a strenuous nature, as is customarily done on this equipment, Should not be undertaken without first consulting physician.
  • Page 2 Unpack the carton, make sure you have the following parts: PR-5R T - 2 R e g u l a r W a s h e r φ 8 * φ 1 9 * 2 t ( 8 ) S c r e w d r i v e r ( 1 ) Blister pack PR-5R S c r e w d r i v e r ( 1 )

  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1 1. Take screws (T-1) and washers (T-2) from the blister pack. Install and fasten front and rear stabilizers (P-1 & Q-1) each with 2 screws and 2 washers, to the main frame. Screw the pedal set (R-3L, R-3R) onto cranks. Pedals are marked with R and L at the screw side. Tighten the left pedal anti-clockwise, the right pedal clockwise Step 2 1.

  • Page 4: Use 4 Screws & 4 Washers (T-3, T-4) To Fix The Seat Bracket (K-8) Onto Seat Slider (K

    Step 3 1. Unscrew and take off the screws (T-5) attached on the front post. 2. Place and fix the handlebar (C-1) at the upper of front post with screws (T-5). Step 4 1. Use 4 screws & 4 washers (T-3, T-4) to fix the seat bracket (K-8) onto seat slider (K-1). 2.
  • Page 5 Step 5 1. Place the seat (R-1) on seat bracket(K-8), and fix tight with 4 screws & washers (T-3, T-4). 2. Place the seat handlebar (O-1) at the back of backrest sliding rail (M-1), and fix tight with 4 screws &...
  • Page 6 Step 7 1. Connect the console wire (B-2) insert the back side of computer. 2. Connect the delivered of hand pulse wire (B-3) with the outlet from back side of computer. 3. Place the console (A-1) to the bracket of front post, fix tight with the enclosed screws (A-2). 4.

  • Page 7: Exploded Drawing

    EXPLODED DRAWING...

  • Page 8: Part List

    PART LIST Description Console Screw Front post Console wire, upper Hand pulse wire, upper Screw Flat washer Semi-circle washer Spring washer Handlebar Axle Drive pulley Screw Bushing Main frame Console wire, lower Bearing Curved washer Flat washer C-clip Sensor wire Sensor holder Screw E-10 Drive belt...
  • Page 9 F-10 Star-washer F-11 Bushing F-12 Bearing F-13 Bushing Magnetic brake set Screw Spring washer Flat washer Servomotor set Belt tightener Pulley wheel Curved washer Flat washer Bushing Nylon nut Screw Flat washer Spring Seat rail Wire plug Hand pulse wire, middle 2 Positioner Screw Stopper...
  • Page 10 K-11 Screw K-12 Locking bar cover K-13 Screw K-14 Locking nut K-15 Locking bar sleeve K-16 Locking bar handle K-17 Locking bar body 1 PCS K-18 Wire plug 1 PCS Backrest sliding bracket Sleeve Locking knob Backrest sliding rail End cap Mesh backrest Flat washer Screw...
  • Page 11 Adaptor Allen bolt Flat washer Allen bolt 16 PCS Flat washer 16 PCS Allen bolt Front cover, left Front cover, right Rear cover, lower left Rear cover, lower right Rear cover, upper right Rear cover, upper left Rear supporting tube cover, left Rear supporting tube cover, right Screw U-10 Screw...
  • Page 12 INSTRUCTION MANUAL OF SM2705 BUTTON FUNCTION: MODE/ENTER In stop mode, confirm all exercise data setting(Time, DST,CAL, Pulse, etc), and enter into program. RESET Press it in the STOP mode, return to the main menu. Press the mode 2s at any time, buzzer sound 1s and LCD display 2s then return to the main menu as “TOTAL RESET”.

  • Page 13: Sleep Mode

    H.R.C If select H.R.C mode, need set age first and confirm by MODE. It will display preset value in PULSE area according to age. If select TARGET, it will display 100 and flash in PULSE area. Use ▲/▼ to adjust the target value(30~230) and can be recycle.
