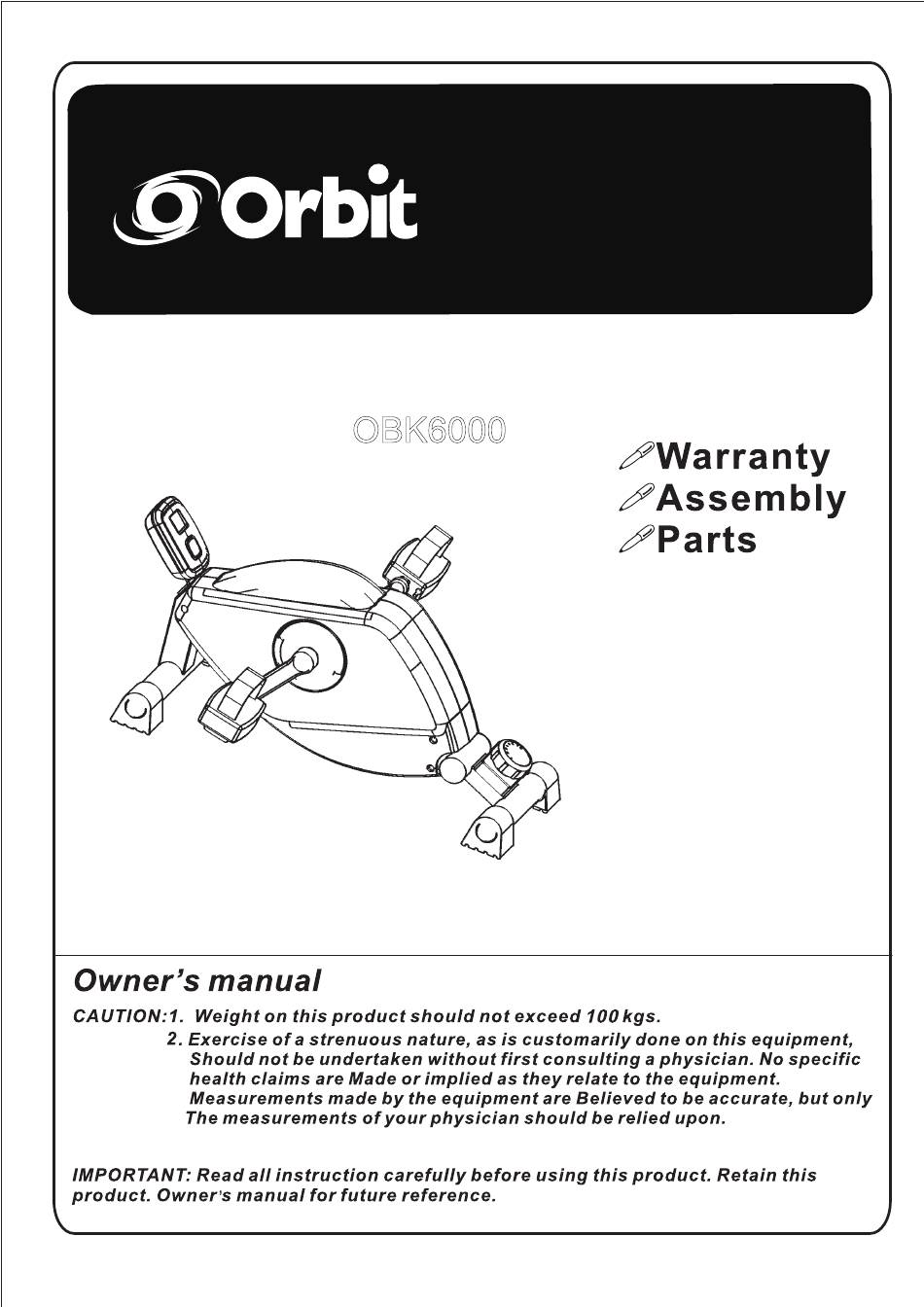

- Page 1 OBK6000 OBK6000 OBK6000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions..........3 Product overview..........4 Assembly instructions........5 Meter function instructions......7 Resistance adjustment........8 Transmitter function........9 Exercise guidance..........10 Explosion drawing..........13 Parts list............14 ... -
Page 3: Safety Instructions
SAFETY INSTRUCITONS 1. Save these instructions and ensure that user read this manual prior to using the Bike for the first time, read all warnings and cautions posted on the Bike 2. The Bike should only be used after a thorough review of the Owner’s Manual. Make sure that it is properly assembled and tightened before use. -
Page 4: Product Overview
15. The Bike should not be used by persons weighing over 100 kg. 16. The Bike should be used by only one person at a time 17. The Bike is for in-door use only. It is not for use in public or semipublic facilities ... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTION Step 1 Attach Stabilizer Cap (B48) to the indicated position on each stabilizer. Noted：The bump (a) of the stabilizer cap (B48) must align with the hole of the tube (b) ... - Page 6 Step 3 1. Meter can be fixed on bike: Insert the console (C1) to the supporting bracket, following the arrow direction shown below. 2. Meter can be placed on table: Unplug the meter(C1) from the supporting bracket, and use back stand to place it on the table.
-
Page 7: Meter Function Instructions
METER FUNCTION INSTRUCTION BUTTON FUNCTION: MODE: This key allows you to select and set a particular function while exercising. FUNCTION SCAN: Automatically scan each function, i n c l u d i n g . -
Page 8: Resistance Adjustment
RESISTANCE ADJUSTMENT To increase resistance, turn the adjustment knob (B32) clockwise To decrease resistance, turn the adjustment knob (B32) counter-clockwise ... -
Page 9: Transmitter Function
Transmitter Function Battery Replacement a) Use a coin to rotate the battery cover counter-clockwise by 90 degree, following the arrow direction shown in PICTURE 1 below. Take the old battery off. b) Replace with new battery and put the battery cover back. Rotate the battery cover clockwise by 90 degree, shown in PICTURE 2. -
Page 10: Exercise Guidance
EXERCISE GUIDANCE How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely over weight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. - Page 11 25 years 107-175 beats per minute beats per minute 30 years 105-171 beats per minute beats per minute 35 years 102-166 beats per minute beats per minute 40 years 99-162 beats per minute beats per minute 45 years 97-157 beats per minute beats per minute 50 years...
- Page 12 SUGG GESTE D STR RETCHI NG EX XERCIS tretching on the flo ower Body y Stretch Place feet s shoulder-w width itting on th he ground d and part and le ean forward preading L Legs, the u upper Keeps this p position fo...
-
Page 13: Explosion Drawing
EXPLOSION DRAWING FRONT BACK ... -
Page 14: Parts List
PARTS LIST A. Welding Parts Description Main frame Magnet Bracket B. Plastic parts Description Left Chain Cover Right Chain Cover Top Cover Sensor Left Pedal Right Pedal Crank Cap Adjustment Knob Plastic Washer Φ10.2*Φ14 Stopper Bearing Housing Plug Stabilizer Cap... - Page 15 Ball Bearing (6000ZZ） Ball Bearing (6200ZZ) Ball Bearing (6003ZZ) Idler Shaft Magnet Idler Shaft Round Magnet Wireless transmitter D. Hardware Description Eye Bolt M6 Screw, Round Head Self-Tapping ST4.2X16 Bolt, Round Head M6X12 Wave Washer S10 Screw, Round Head Self-Tapping ST4.2X25 Flange Nut M10 x 1.25 Hex Shape Nut M10...
