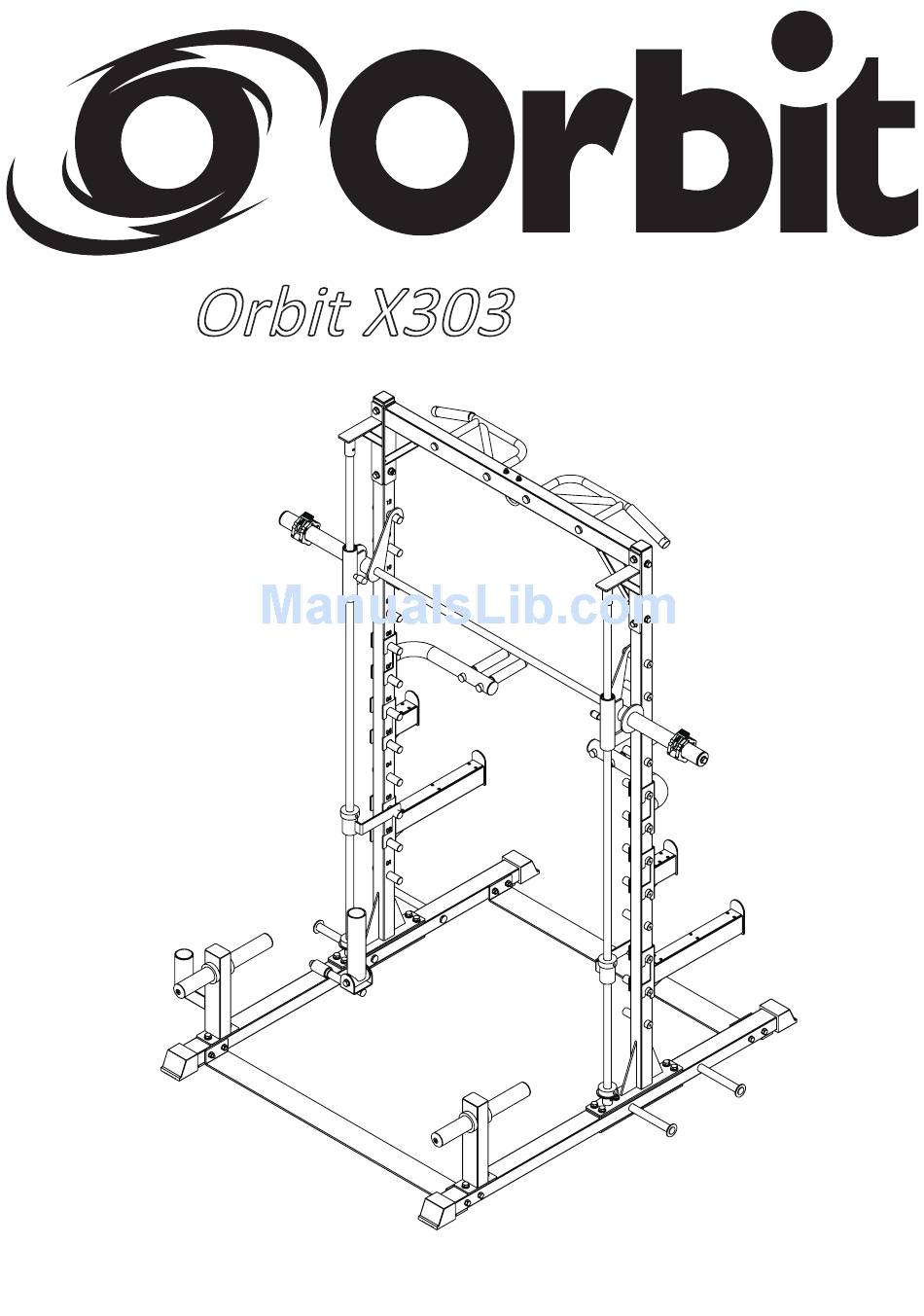

- Page 1 Orbit X303 Assembly Instructions...
-
Page 2: Table Of Contents
Assembly step（6） ....................... 15-16 Assembly step（7） ....................... 17-18 Warranty card ......................... 19-21 Owner’s Manual Orbit X303 CAUTION: Exercise of a strenuous nature, as is customarily done on this equipment, should not be undertaken without first consulting a physician. No specific health claims are made or implied as they relate to the equipment. -
Page 3: Spare Parts List
Spare parts list Description Note Qty. left base frame right base frame ground link support plate hexagon bolt M10*90 washer Φ10 lock nut left upright frame right upright frame barbell bar lock nut Φ25*M12*35 barbell bar hang rod Φ25*M12*98 hexagon bolt M12*35 spring washer Φ12... -
Page 4: Fasteners Drawing
Fasteners drawing Installation tools 17-19 SPANNER 2PCS 6MM INNER HEXAGON SPANNER 1PC 4MM INNER HEXAGON SPANNER 1PC Bolt length measurement ruler... -
Page 5: Assembly Step（1
Assembly step（1）explosion drawing No. Description Note Qty. left base frame right base frame ground link support plate hexagon bolt M10*90 washer Φ10 lock nut... -
Page 6: Assembly Step（1
Assembly step（1）drawing Assembly step（1）assembly instruction 1. Fix ground link support plate (3) fastening on left base frame (1) with right base frame (2) using: M10*90 hexagon bolt (4), Ф10 washer (5), M10 lock nut (6) CAUTION: All bolts should be semi-tightened to allow fine tune. -
Page 7: Assembly Step（2
Assembly step（2）explosion drawing No. Description Note Qty. left upright frame right upright frame barbell bar lock nut Φ25*M12*35 barbell bar hang rod Φ25*M12*98 hexagon bolt M12*35 spring washer Φ12 washer Φ12... -
Page 8: Assembly Step（2
Assembly step（2）drawing Assembly step（2）assembly instruction 1. Fix left upright frame (7) fastening on left base frame using: M12*35 hexagon bolt (11), Ф12 spring washer (13), Ф12 washer (7) 2. Fix right upright frame (8) fastening on right base frame using: M12*35 hexagon bolt (11), Ф12 spring washer (13), Ф12 washer (7) 3. -
Page 9: Assembly Step（3
Assembly step（3）explosion drawing No. Description Note Qty. washer Φ12 lock nut hexagon bolt M12*75 headless hexagon socket bolt M8*10 hexagon bolt M12*25 up link plate guide rod Φ25*2020 barbell bar plug barbell bar sleeve barbell bar left sliding sleeve right sliding sleeve rubber cushion Φ60*Φ55*Φ27*28 left safety hook... -
Page 10: Assembly Step（3
Assembly step（3）drawing Assembly step（3）assembly instruction 1. Fit guide rod (19) on left base frame (1) & right base frame (2) using: M8*10 headless hexagon socket bolt (16) 2. Put right sliding sleeve (24) and left sliding sleeve (23) on barbell bar (22) 3. -
Page 11: Assembly Step（4
Assembly step（4）explosion drawing No. Description Note Qty. spring washer Φ12 washer Φ12 lock nut hexagon bolt M12*75 hexagon bolt M12*80 upper frame... -
Page 12: Assembly Step（4
Assembly step（4）drawing Assembly step（4）assembly instruction 1. Fix upper frame (29) fastening on left upright frame & right upright frame using: M12*75 hexagon bolt (15), M12*80 hexagon bolt (28), Ф12 spring washer (12), Ф12 washer (13), and M12 lock nut (14) CAUTION: All bolts should be semi-tightened to allow fine tune. -
Page 13: Assembly Step（5
Assembly step（5）explosion drawing No. Description Note Qty. hexagon bolt M12*35 spring washer Φ12 washer Φ12 left weight plate holder right weight plate holder core trainer stop collar Φ25*Φ20*6 limit shaft Φ22*M12*39.5... -
Page 14: Assembly Step（5
Assembly step（5）drawing Assembly step（5）assembly instruction 1. Fix left weight plate holder (30) fastening on left base frame using: M12*35 hexagon bolt (11), Ф12 spring washer (12), Ф12 washer (13) 2. Fix right weight plate holder (31) fastening on right base frame using: M12*35 hexagon bolt (11), Ф12 spring washer (12), Ф12 washer (13) 3. -
Page 15: Assembly Step（6
Assembly step（6）explosion drawing No. Description Note Qty. long safety catch short safety catch left horizontal bar right horizontal bar... -
Page 16: Assembly Step（6
Assembly step（6）drawing Assembly step（6）assembly instruction 1. Put left horizontal bar (37), long safety catch (35), short safety catch (36) on left upright frame 2. Put right horizontal bar (38), long safety catch (35), short safety catch (36) on right upright frame... -
Page 17: Assembly Step（7
Assembly step（7）explosion drawing No. Description Note Qty. barbell clamp collar Φ50 spring collar Φ50... -
Page 18: Assembly Step（7
2. Fix spring collar(40) respectively on left weight plate holder and right weight plate holder You’ve now completed assembly of Orbit X303 Smart Way Smith machine. Please test it makes sure it runs smoothly before fastening ALL nuts and bolts. -
Page 19: Warranty Card
However, this may incur a call-out fee when the claim is lodged outside the labour cost warranty period. Orbit reserves the right to charge customer labour, parts and call-out fee if it establishes that a warranty claim is not valid. - Page 20 Faults as result of installation by Orbit staff must be reported within 7 days, as do concerns, questions aroused during or after installation by customer. Failure to follow warning in the owners manual, or warning stickers placed on equipment may result in injury to person and equipment and substantially void your warranty.
-
Page 21: Warranty Card
Important Important Important ! Important ! WARRANTY CARD MUST BE COMPLETED AND RETURNED TO ORBIT OR REGISTERED ONLINE WITHIN 15 DAYS OF PURCHASE. Failure to comply may void manufacturer’s warranty. Name Address Email Phone Age group below 25 25-35 35-45...
