ALINX ALTERA Core Board AC4075 User Manual
capacitors are used to ensure the system's power supply is stable and reliable.
The three-way DCDC power supply circuit is designed as follows:

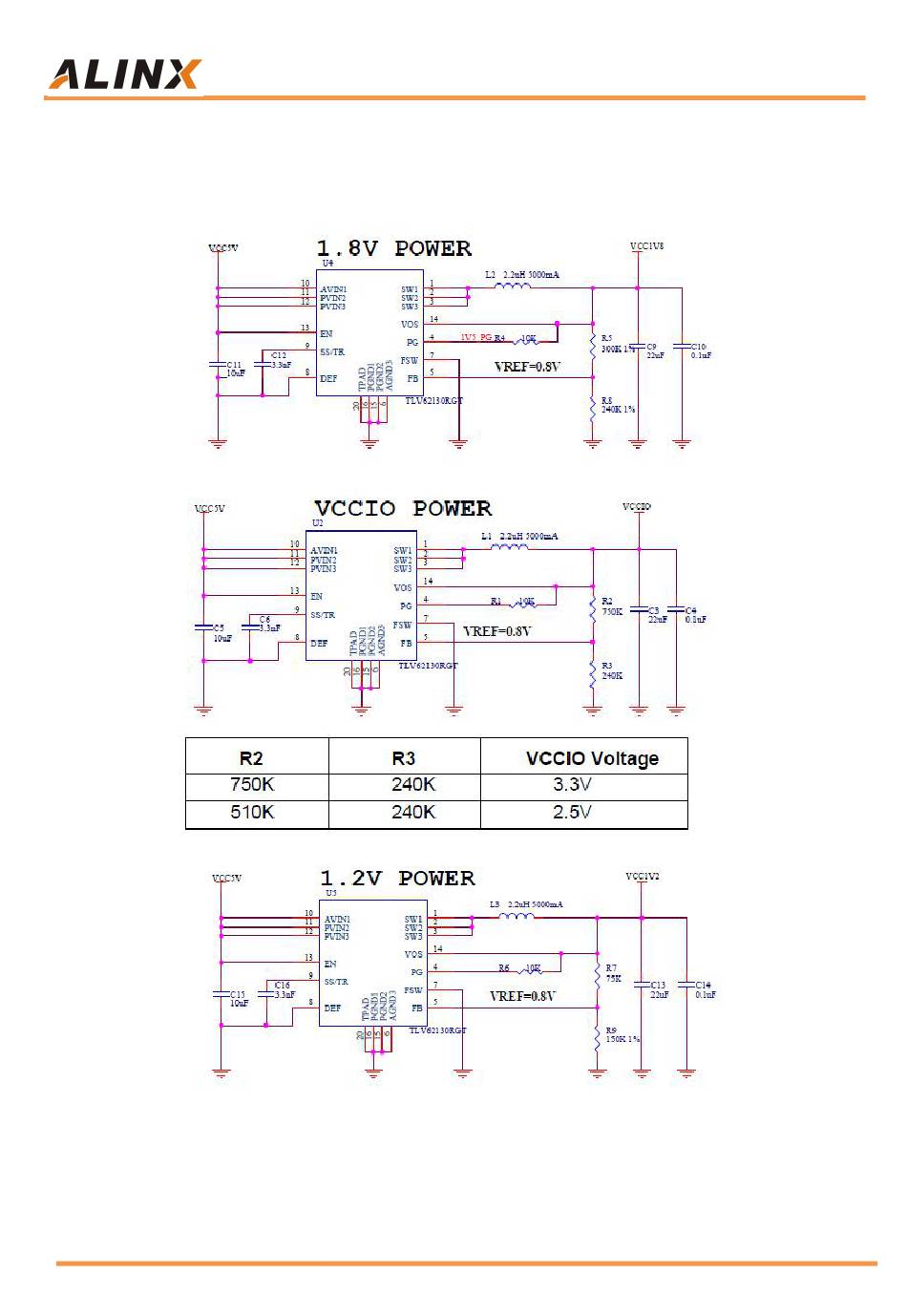

Figure 4-1: DC-DC Power Supply Schematic
The other two channels (3.3V and 2.5V) use less LDO chips
SPX3819M5-L-3-3 and SPX3819M5-L-2-5 because of the low current required.
Amazon Store: https://www.amazon.com/alinx
10 / 19
