RH Baby&child JAMESON STORAGE CONVERSION CRIB Assembly Instructions Manual page 12

STEP 6
METAL BED FRAME ASSEMBLY
STEP 6.1
Loose all the bolts in crib to
disassemble it.
STEP 6.2
Bring the heaboard to its upright
position.

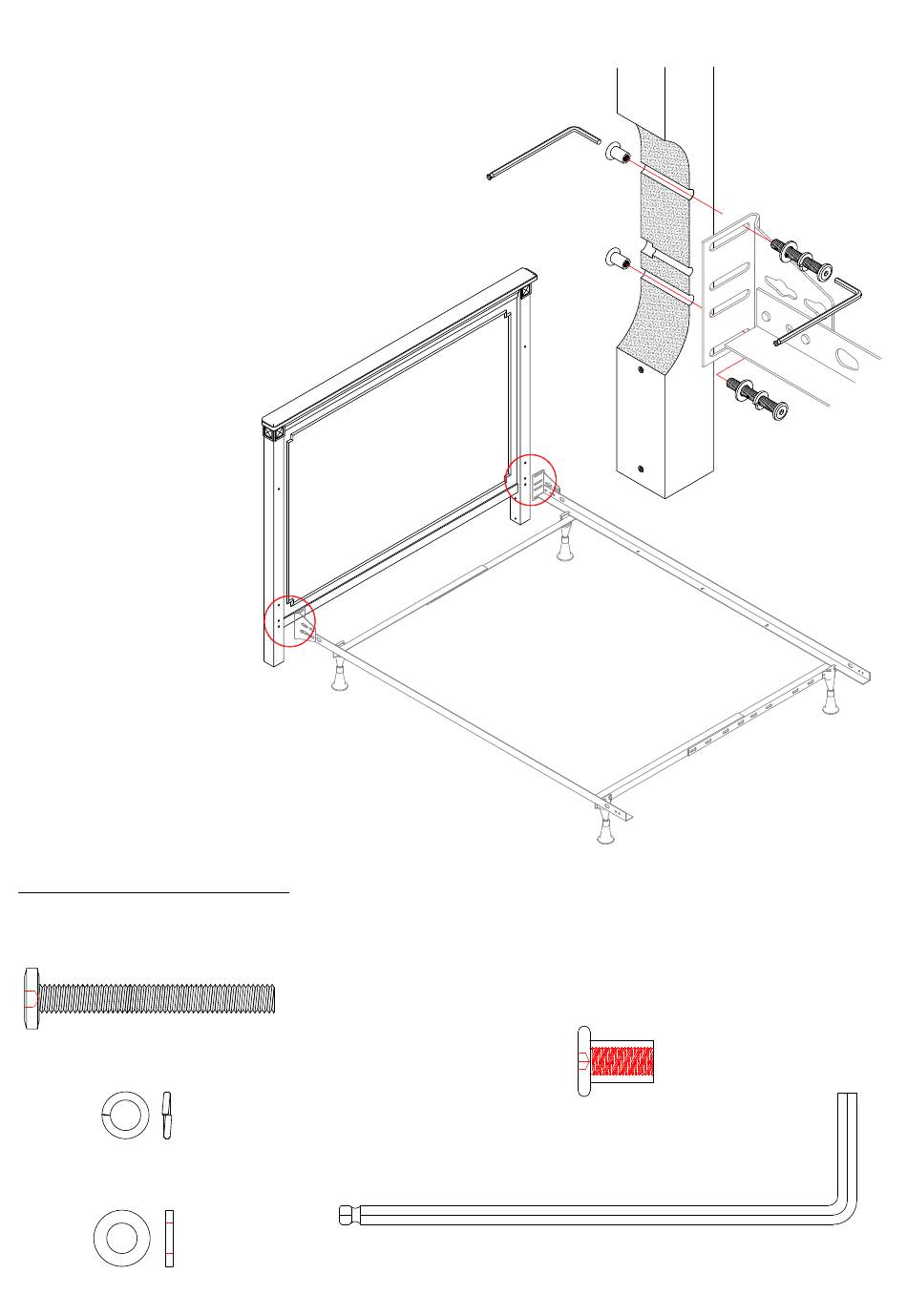

STEP 6.3
On the bottom of the headboard are
holes for the bolts to pass through that
correspond to the holes on the metal
bed frame. Attach the metal bed frame
to the headboard by inserting Allen
bolts (FF) through lock washers and
plain washers into the sleeve nut on
the other side. See DETAIL K.
HARDWARE NEEDED FOR STEP 6
(FF) M6 x 50mm Allen Bolt = 4 pcs.
Lock Washers 1/4" = 4 pcs.
Plain Washers 1/4" = 4 pcs.
Sleeve Nut M6 = 4 pcs.
Allen Wrench = 2 pcs.
DETAIL K
12/12
