π

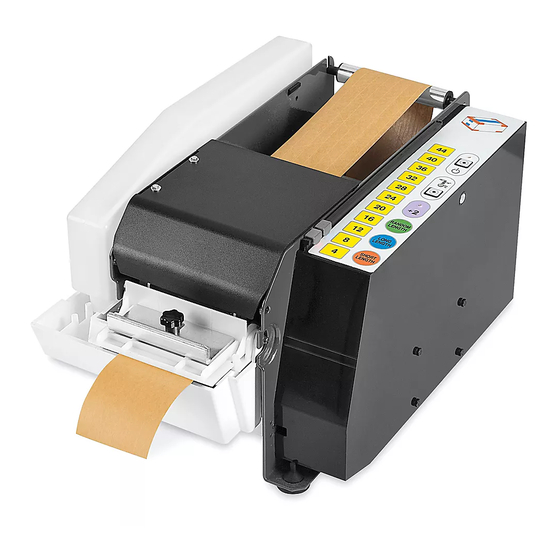

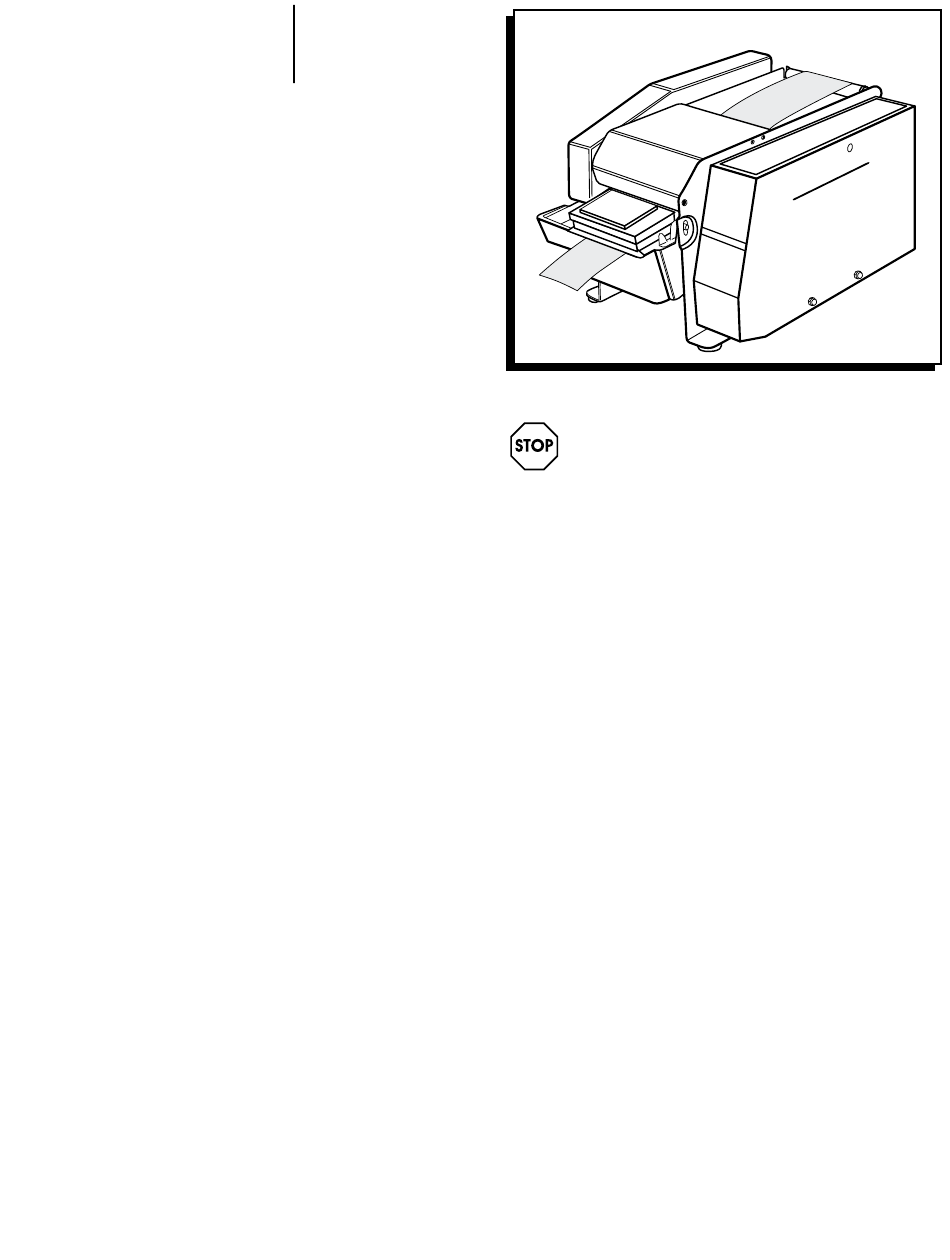

H-2243
BATTERY OPERATED
KRAFT TAPE
DISPENSER
PAGE 1 OF 5
1-800-295-5510
uline.com

IMPORTANT!

Read this manual thoroughly and
familiarize yourself with ALL controls
and operating features. Keep this
manual for future reference and
maintenance.
Unpacking: Check the machine for
damage. If damage is found, return
to Uline.

TEcHnIcAl DATA

Dimensions of machine: 17¾ x 29½ x 9¾"
Voltage and frequency: See machine label
Electrical power: 100W
Dispensing velocity: 3 ft. / sec.
length: min. 4" / max. 45"
TAPE
Types of gummed tape: All
PAPER FEATUREs
Width: min. ¾" / max. 4"
Maximum roll diameter: 7¾" ; 11¾" with
Weight of machine:
26½ lbs.
control circuit in Dc:
24 Volts
Sound measured in
a room: less than 70
dB (A)
device for bigger rolls
(supplied on request)
0714 IH-2243

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-2243 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line H-2243

  • Page 1 π H-2243 1-800-295-5510 uline.com BATTERY OPERATED KRAFT TAPE DISPENSER IMPORTANT! Read this manual thoroughly and familiarize yourself with ALL controls and operating features. Keep this manual for future reference and maintenance. Unpacking: Check the machine for damage. If damage is found, return to Uline.
  • Page 2 GENERAL INFORMATION CAUTION! Only trained personnel should be Keep the machine clean, dry and in good operating allowed to operate or service this machine. condition. DO nOT place or operate machine in damp or humid environments. WARNING! Burn Danger – switch off power and allow the top heater to cool down before WARNING! Avoid short circuits and do not performing any cleaning, maintenance or...
  • Page 3 sET-UP INsTRUCTIONs CONTINUED Figure 6 Figure 3 Water Weight Set Screw cover Plate Figure 7 Figure 4 Min. Med. Max. lOAD TAPE ROll InSTAll UPPER PlATE GUIDE 1. Adjust roll guide plates to fit tape width. (See Figure 8) With top cover open, slide the upper plate guide under the white wheel.
  • Page 4 OPERATION Operate machine switched on, tape loaded and water 3. Set long length (Second length) – While holding in reservoir. down the long length key, press the number key that corresponds to the longer length desired. For pre-set lengths of tape press the numbered key that corresponds to the desired length.
  • Page 5 REFERENCE BATTERY 100° 8O° °C LETTER / # DEsCRIPTION Battery Side cover Main light Switch Switch Board Green Key Random length – Dispenses Tape Key for 11 Pre-Sets of Tape length +2 (inches) Key – Pre-Sets length by 2" Short length – Sets One length of Tape Shorter and long length – Sets One length of Tape longer than the First One Top Heater Switch (n/A) cover Plate...
