U-Line Econodot H-2930 Manual

H-2930
ECONODOT
®

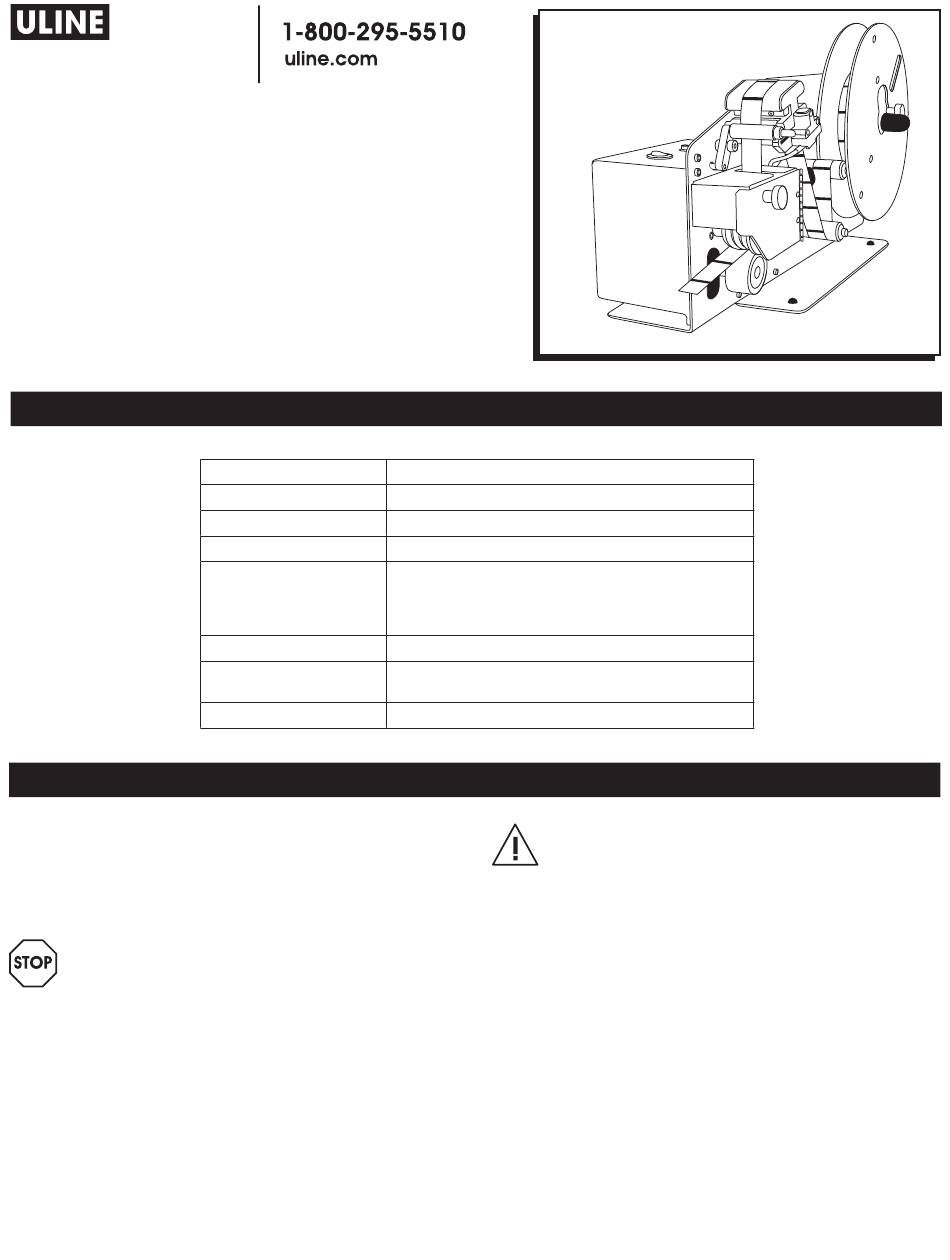

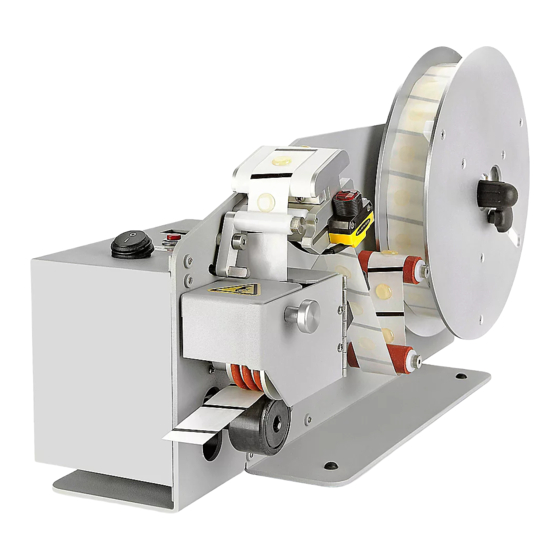

The EconoDot® is an economical bench-top machine
exclusively designed to dispense Glue Dots® Adhesive
Products in rolls of up to 8,000 adhesive patterns. These
instructions show the basic operation of the EconoDot
including set up, loading and operation.
For your safety it is important to read and
understand these instructions before using the
EconoDot. It is important to keep hands, hair,
clothing, jewelry and other loose objects away
from any moving parts during operation of this
machine.
The EconoDot is designed to exclusively dispense
patented Glue Dots Adhesive Products on registered
liner. Operating this machine outside of its intended
nature will result in poor results, damage to the machine
or compromised operator safety. Glue Dots International
will not be held liable for any damage to products or
persons resulting from improper use of the EconoDot.
PAGE 1 OF 3
SPECIFICATIONS
MATERIALS
DIMENSIONS
WEIGHT
NOISE
POWER
CYCLES
CAPACITY
TEMP
Steel, Aluminum
18.5"L x 10.5"H x 7.0"D
10 lbs
45db
100-240VAC
50-60Hz
0.5A
24VDC
1 adhesive pattern per second
Up to an 8,000-count roll on registered liner;
Maximum 9.25" roll diameter
Min 50˚F; Max 122˚F
SAFETY
IMPORTANT: Only persons who have read these
instructions and who are familiar with the
proper use of the EconoDot should operate this
machine.
All electrical work performed on the EconoDot
should be performed by a licensed electrician
or trained person supervised by a licensed
electrician.
Draw-in or squeezing can occur between the
motor-driven and clamp rollers.
0314 IH-2930
