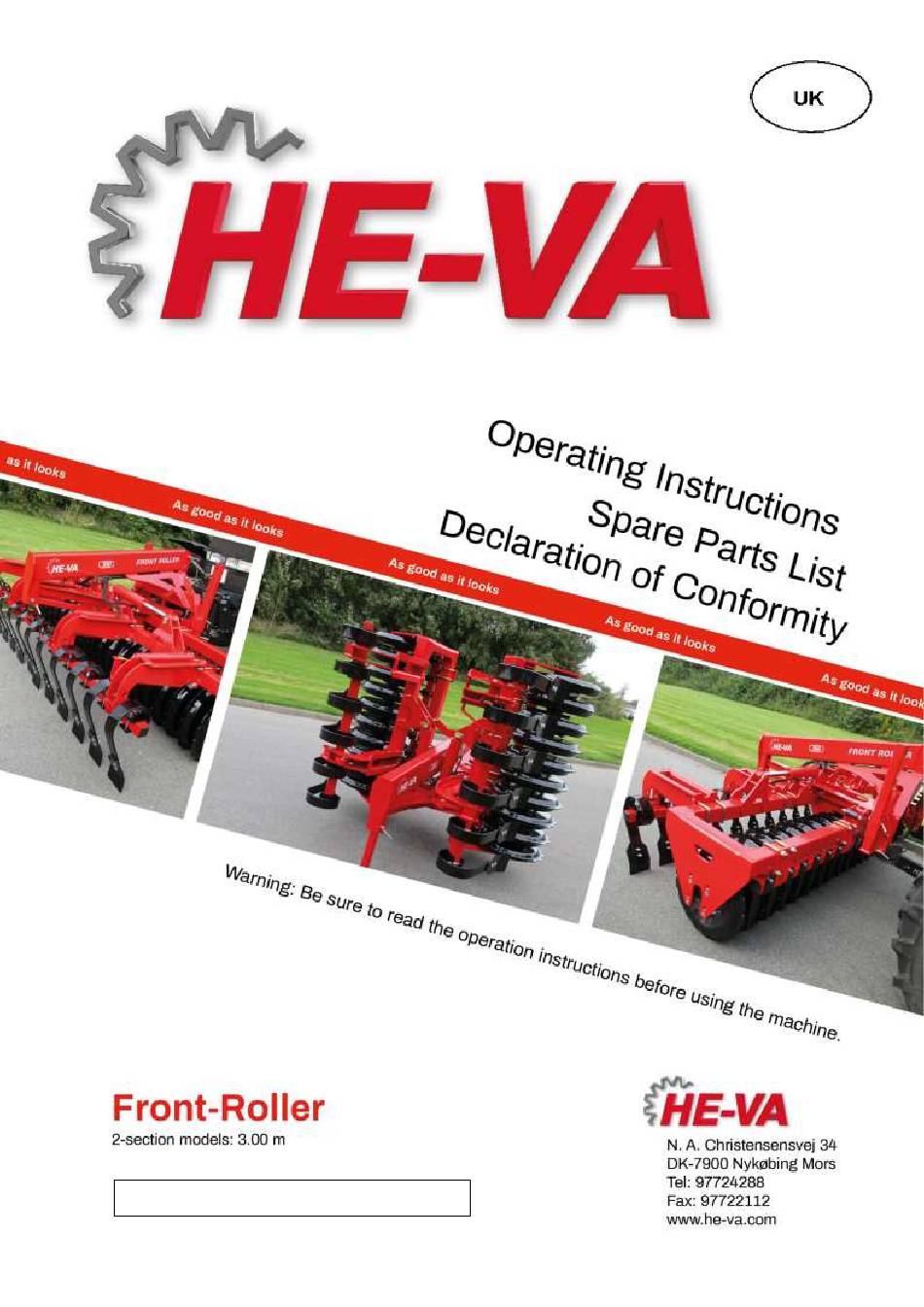

- Page 1 Manual no. 8000431-01 061021...
-
Page 3: Table Of Contents
Contents EC DECLARATION OF CONFORMITY..................3 Delivery Check ............................ 4 Machine description ..........................4 Working with the Front-Roller ......................4 Technical specifications ......................... 5 Safety Instructions, regarding Hydraulic System ................5 Safety around the Top-Cutter Solo ...................... 6 Markings on the machine ........................7 Maintenance ............................ -
Page 4: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY in accordance with the EU Machinery Directive 2006/42/EC applicable as from December 29 2009: HE-VA ApS N. A. Christensensvej 34, DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. -
Page 5: Delivery Check
Front-Roller 3,0m foldable 06-10-2021 Delivery Check Check the Front-Roller for any damage when it is received at either the dealer and the final customer. Check that the frame construction has not been exposed to impacts. Check the hydraulic hoses, at hydraulic models, for cuts and squeezing damages. Check also the other hydraulic components, are not damaged during transport. -
Page 6: Technical Specifications
Front-Roller 3,0m foldable 06-10-2021 Technical specifications Work Qty. of Ringtype Transport width Weight kg width rings 510 mm/21” Cambr. 1.240 560 mm/22,5” Cambr. 1.410 620 mm/24” Cambr. 1.630 450/500 mm Star ring 1.290 550/600 mm Star ring 1.590 3,0m hydr. -
Page 7: Safety Around The Top-Cutter Solo
• The machine must not be operated by persons who have not been properly instructed or trained • He-Va cannot be held responsible for any falling accidents due to washing lubrication and other maintenance tasks Most accidents when operating the machine, transporting and doing maintenance occurs, when avoiding the simplest safety regulations. -
Page 8: Markings On The Machine
Front-Roller 3,0m foldable 06-10-2021 Markings on the machine Several markings are located on your machine, which contains safety regulations and other instructions to inform about correct operating. Please read these instructions carefully and make the driver aware about the markings and safety regulations in this Operating Instructions. -
Page 9: Maintenance
Front-Roller 3,0m foldable 06-10-2021 Maintenance After 10 hours of operation, tightening of wheels, bearings and stop rings must be done. If this is not respected our warranty will lapse. Maximum torque according to ISO 898-1 in Nm. With lubricated thread Metric thread Quality 8.8... -
Page 10: Spare Parts List
Front-Roller 3,0m foldable 06-10-2021 Spare Parts List Front-Roller with V-Profile roller Back to the table of contents... - Page 11 Front-Roller 3,0m foldable 06-10-2021 Pos. Part no. Description Qty. 630410002 Main frame 630410003 Pivoting frame 690200200 Cylinder 80/40x280 690200143 Gasket set for cylinder 80/40 69430110G Pin Ø30 L=110 69430130G Pin Ø30 L=130 69430135G Pin Ø30 L=135 630410050 Holder for hydraulic hoses...
- Page 12 Front-Roller 3,0m foldable 06-10-2021 690152030 Clamp to 70/70 bar for scraper Clamp to 50/70 bar for scraper 630938522 From serial number 709475 35054520 Horn for Spring-Board 630410080 Spring-Board bar left 630410081 Spring-Board bar right, not shown 633052000 Spring-Board tine, complete...
-
Page 13: Hydraulics Folding
Front-Roller 3,0m foldable 06-10-2021 Hydraulics folding Pos. Part no. Description Qty. 690200200 Cylinder 80/40x280 690200143 Gasket set for cylinder 80/40 690203006 Fitting 90° Ø10-3/8” 690203015 Fitting T-10 0446752 Fitting straight Ø10-1/2” Quick coupling 1/2”, male 0444020 690119202 Straps blue Hydraulic hose ¼” L = 2300 mm 0454645 Hydraulic hose ¼”... -
Page 14: Hydraulic Spring-Board
Front-Roller 3,0m foldable 06-10-2021 Hydraulic Spring-Board Pos. Part no. Description Qty. 690200160 Cylinder 50/30x155 690200145 Gasket set for cylinder 50/30 690203006 Fitting 90° Ø10-3/8” 690203015 Fitting T-10 0446678 Fitting 90° adjustable Ø10 m/omløb 0446752 Fitting straight Ø10-1/2” Quick coupling 1/2”, male... -
Page 15: Lubrication Chart
Front-Roller 3,0m foldable 06-10-2021 Lubrication chart Back to the table of contents... - Page 16 The design is subject to modification without notice.
