- Page 1 Manual no. 8000121-03 110221 Back to the table of contents...
-
Page 3: Table Of Contents
EC DECLARATION OF CONFORMITY ....................... 0 Delivery Check ..............................1 Machine description ............................1 Technical specifications ..........................2 Working with the Top-Strigle ......................... 2 Safety around the Top-Strigle ..........................3 Safety Instructions, regarding Hydraulic System ....................4 Markings on the machine ........................... 5 Maintenance ............................... -
Page 4: Ec Declaration Of Conformity
DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. The declaration comprises the following machines: Top-Strigle with 5 bars 3,0m – 4,0m rigid 4,0m – 8,0m hydraulic Nykøbing the 28th february 2011 Villy Christiansen The undersigned is furthermore authorised to compile technical documentation for the above machine. -
Page 5: Delivery Check

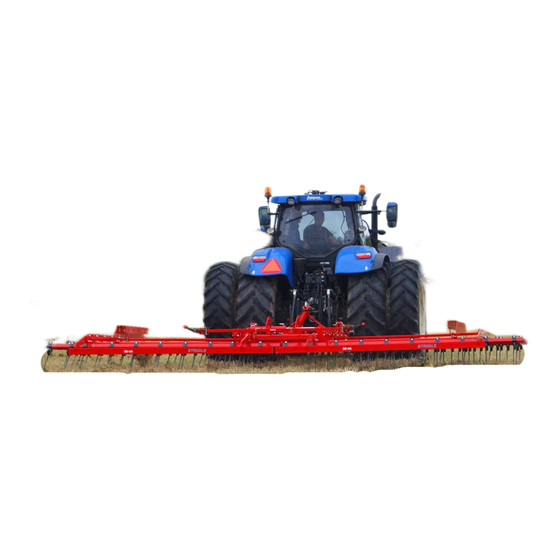

Machine description The Top-Strigle is a 5 bar strigle which is suitable for aeration of pasture or spreading out heaps of straw as well as making seeds from weeds and wasted grain germinate. The machine can only be delivered as tail mounted option. -
Page 6: Technical Specifications
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Technical specifications Working Transport Transport- No. of Tine size Weight in kg width width height tines requirement 12mm 3050 1500 85-110 3,00m rigid 16mm... -
Page 7: Safety Around The Top-Strigle
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Safety around the Top-Strigle Do not operate the machine, if any people** are at risk in the dangerous area.* When persons are at risk in the dangerous area (e.g. when doing adjustments, maintenance or connect or disconnecting), the following points must be met: •... -
Page 8: Safety Instructions, Regarding Hydraulic System
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Safety Instructions, regarding Hydraulic System • The highest allowable pressure, is 225 bar. • It is recommended to mark the hydraulic connections between the implement and tractor, to avoid incorrect operation! •... -
Page 9: Markings On The Machine
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Markings on the machine Several markings are located at your machine, which contains safety regulations and other instructions to inform about correct operating. Please read these instructions carefully, and make the driver aware about the markings and safety regulations in this Operating Instructions. -
Page 10: Maintenance
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Maintenance After 10 hours of operation, tightening of wheels, bearings and stop rings must be done. If this is not respected our warranty will lapse. -
Page 11: Notes
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Notes Back to the table of contents... -
Page 12: Spareparts List
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Spareparts list Right section, 5-bars w/Ø16 mm long finger tine 6.0 - 7,0 - 8,0 m Back to the table of contents... - Page 13 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Pos. Part no. Description 1275219 Left section, welded (not shown) 1275220 Right section, welded (not shown) 1275165 Left section, welded (not shown) 1275113 Right section, welded...
-
Page 14: Extension Kit For 8 M
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Extension kit for 8 m Pos. Part no. Description 1275151 Holder for storage of extension bar, left 1275152 Holder for storage of extension bar, right... -
Page 15: Wheels
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Wheels Pos. Part no. Description 7330056 Console for wheel 7330047 Steel profile w/hub and axel 69516125A Pin Ø16 S355J2 0377400 Hair-clip Ø4 Tire 200/60 – 14,5 10 ply 0395630 Rim 200/60 –... -
Page 16: Led - Lighting Set
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 LED - Lighting set Pos. Part no. Description Quantity 7357505 Lightbox (L) 7357508 Lightbox (R) 7357504 Rear light 0264030 Locking nut M5 7357507 Marking lights (L) -
Page 17: Hydraulics
Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Hydraulics 7,0 - 8,0 meter 5 bar Top-Strigle Back to the table of contents... - Page 18 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 5 bars 11-02-2021 Pos. Part no. Description 5,0 - 6,0 - 7,0 - 8,0m 690200060 Cylinder 70/40 x 500 1275023 Cylinder 50/30 x 250 Ballvalve 3/8” 0442350...
- Page 20 The design is subject to modification without notice.
