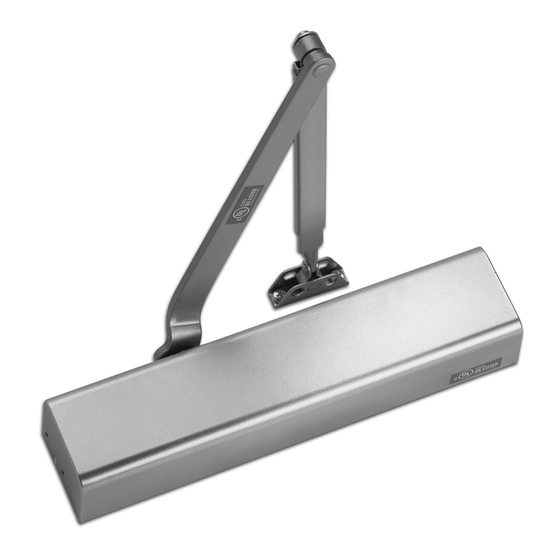

5300/5500 DOOR CLOSER INSTRUCTION SHEET

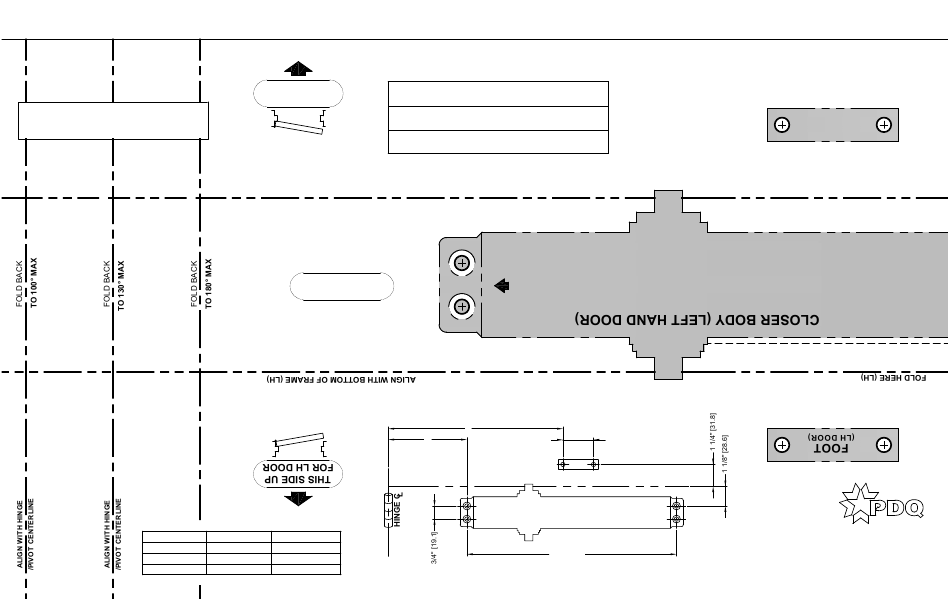

REGULAR ARM INSTALLATION - PULL SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS
FOLD AT HINGE/PIVOT CENTERLINE
FOR THE REQUIRED
OPENING ANGLE.
OPENING
TO 100°
TO 130°
TO 180°
THIS SIDE UP
MACHINE SCREWS:
FOR RH DOOR
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
ALIGN WITH BOTTOM OF FRAME (RH)
PULL SIDE FACE
OF DOOR
DIM A
DIM B
7-1/2"[190.5]
13"[330.2]
6"[152.4]
11-1/2"[292.1]
10"[254]
4-1/2"[114.3]
CLOSER BODY (RIGHT HAND DOOR)
SWEEP/ LATCH VALVES
THIS END OF BODY
B
A
RH
BOTTOM OF FRAME
12" [304.8]
1 3/4" [44.5]
INSTRUCTION: 539351
REV. 3
09-05-19
FOOT
(RH DOOR)
FOLD HERE (RH)
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
