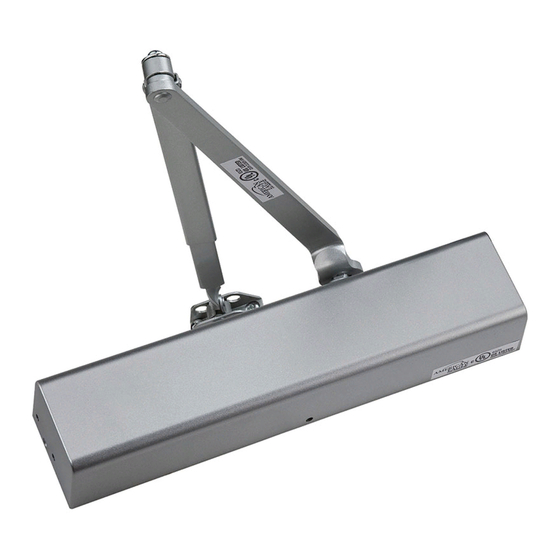

5100 DOOR CLOSER MODELS

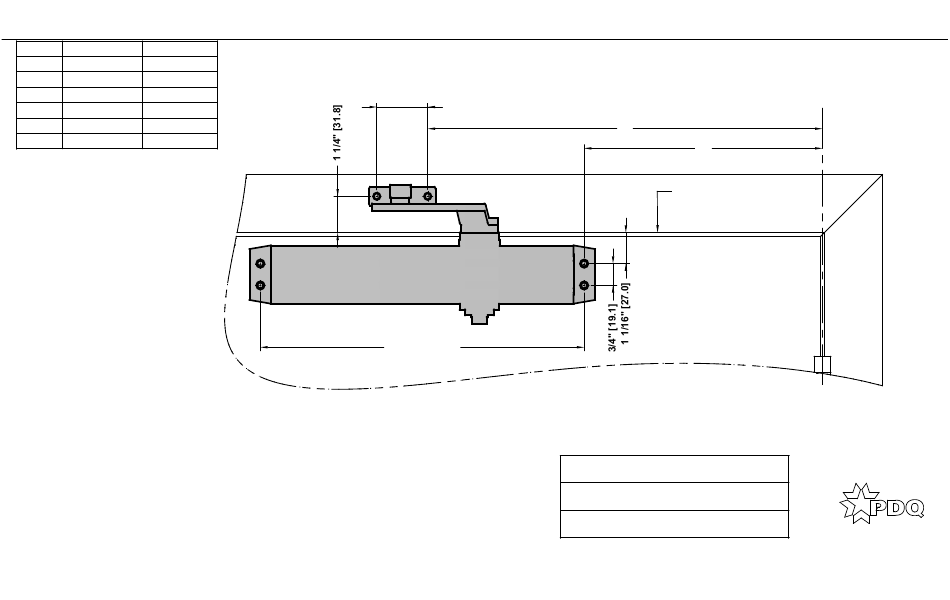

REGULAR ARM INSTALLATION - PULL SIDE - PIVOT STOP (PS) ARM APPLICATIONS
Opening
Dim. A
Dim. B
85
10-15/16" [277.8] 16-7/16" [417.5]
°
90
10-1/8" [257.2]
15-5/8" [396.9]
°
95
°
9-5/8" [244.5]
15-1/8" [384.2]
100
9-1/16" [230.2]
14-9/16" [369.9]
°
105
8-5/8" [219.1]
14-1/8" [358.8]
°
110
8-3/16" [208]
13-1/16" [347.7]
°
NOTES:
1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER ARM : 1-5/8".
4. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
5. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
6. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNT IS SPECIFIED.
1 3/4" [44.5]
11 1/8" [282.6]
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
INSTRUCTION: 519355
REV.0
B
A
BOTTOM OF FRAME FACE
10-01-19
C L
HINGE
OR
PIVOT
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
