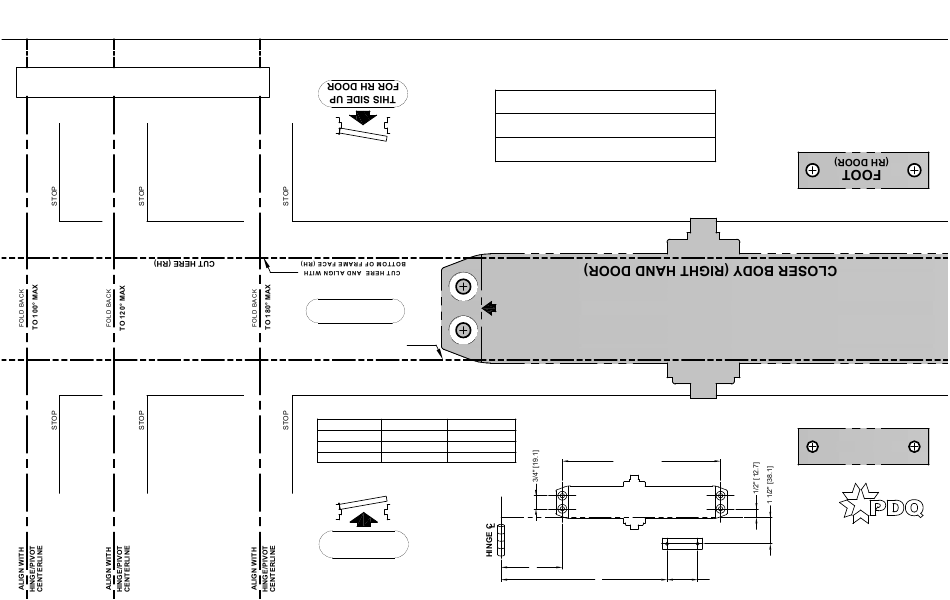

3100/3101 DOOR CLOSER INSTRUCTION SHEET
TOP JAMB INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS
FOLD TEMPLATE AT HINGE/PIVOT CENTERLINE
FOR THE REQUIRED OPENING ANGLE.
CUT HERE (LH)
PUSH SIDE
FRAME FACE
CUT HERE AND ALIGN WITH
BOTTOM OF FRAME FACE (LH)
OPENING
DIM A
DIM B
TO 100°
7-1/2"[190.5]
13-1/2"[342.9]
TO 120°
6"[152.4]
12"[304.8]
3-1/2"[88.9]
9-1/2"[241.3]
TO 180°
THIS SIDE UP
FOR LH DOOR
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
SWEEP/ LATCH VALVES
THIS END OF CLOSER BODY
CLOSER BODY (LEFT HAND DOOR)
9 1/16" [230.2]
BOTTOM OF FRAME
A
B
INSTRUCTION: 319352
REV. 2
09-05-19
FOOT
(LH DOOR)
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
1 3/4" [44.5]
833-2 PDQTECH
www.pdqlocks.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PDQ 3100
Summary of Contents for PDQ 3100
- Page 1 INSTRUCTION: 319352 3100/3101 DOOR CLOSER INSTRUCTION SHEET REV. 2 09-05-19 TOP JAMB INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS FOLD TEMPLATE AT HINGE/PIVOT CENTERLINE FOR THE REQUIRED OPENING ANGLE. MACHINE SCREWS: USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP WOOD DOOR/FRAME SCREWS: USE 5/32"...
- Page 2 INSTRUCTION: 319352 3100/3101 DOOR CLOSER INSTRUCTION SHEET REV. 2 09-05-19 TOP JAMB INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS CLOSER INSTALL CLOSER AND ARM: CONTROL ADJUSTMENTS: BODY 1. Confirm this sheet is correct for your product and application.
