PDQ 3100 Instruction

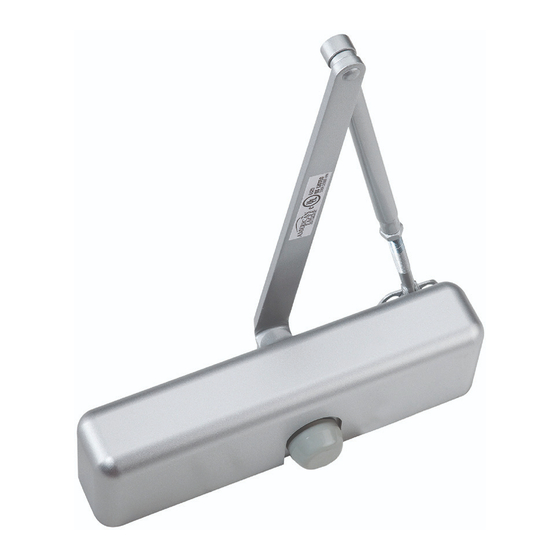

3100 DOOR CLOSER MODELS

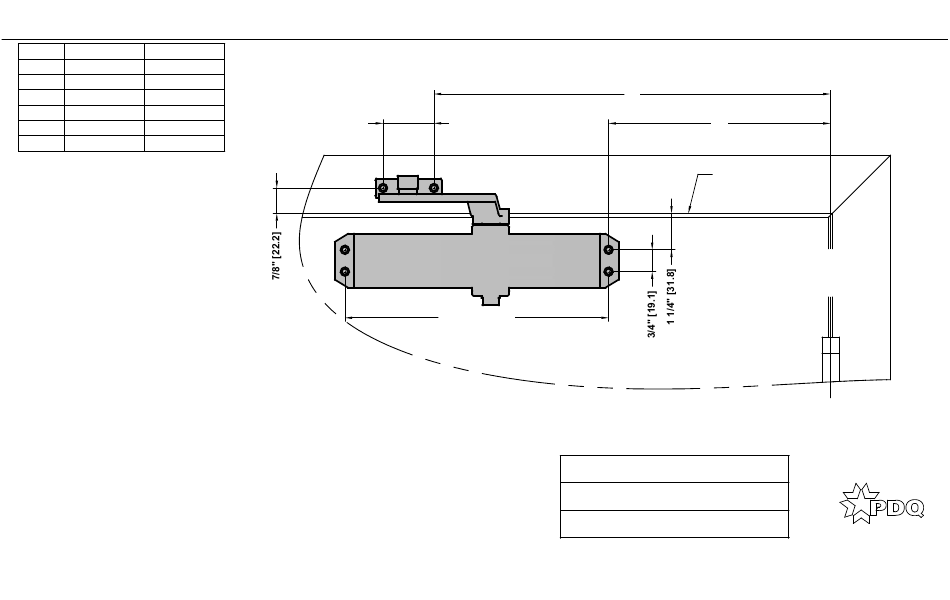

REGULAR ARM INSTALLATION - PULL SIDE - PIVOT STOP (PS) ARM APPLICATIONS

Opening Dim. A Dim. B
85 10-3/8" [263.5] 16-3/8" [415.9]
°
90 9-11/16" [246.1] 15-11/16" [398.5]
°
95 9-1/16" [230.2] 15-1/16" [382.6]
°
100
° 8-1/2" [215.9] 14-1/2" [368.3]
105 8-1/16" [204.8] 14-1/16" [357.2]
°
110 7-5/8" [193.7] 13-5/8" [346.1]
°

NOTES:

1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER ARM : 1-5/8".
4. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
5. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
6. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNTING IS SPECIFIED.
1 3/4" [44.5]
9 1/16" [230.2]
B
A
BOTTOM OF
FRAME FACE

MACHINE SCREWS:

USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
INSTRUCTION: 319355
REV.0 04-09-20
C L
HINGE
OR
PIVOT
