PDQ 6EWS STS Installation Instruction

Exit device trim
Hide thumbs
1
2

Advertisement

Table of Contents

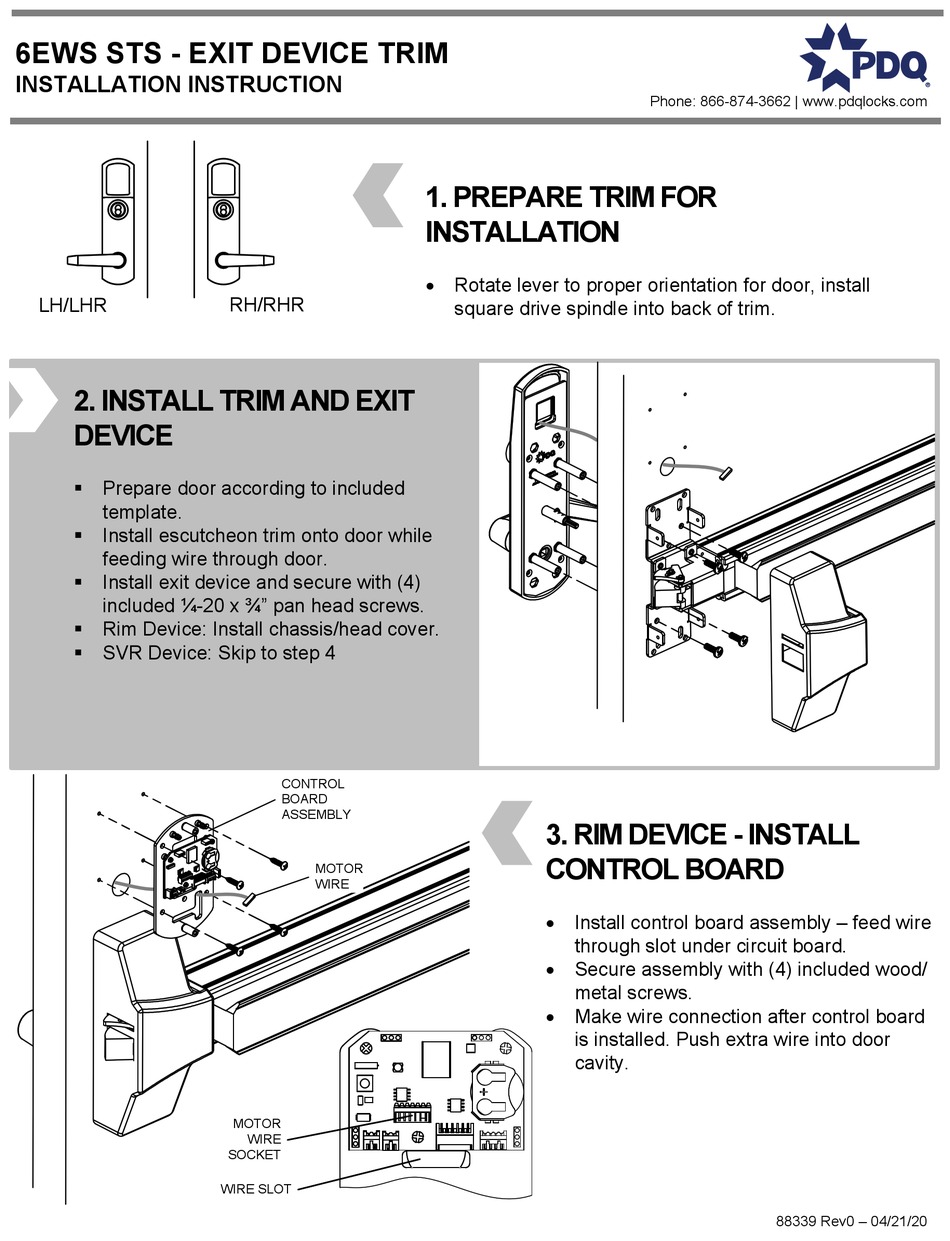

6EWS STS - EXIT DEVICE TRIM
INSTALLATION INSTRUCTION
LH/LHR
2. INSTALL TRIM AND EXIT
DEVICE
 Prepare door according to included
template.
 Install escutcheon trim onto door while
feeding wire through door.
 Install exit device and secure with (4)
included ¼-20 x ¾" pan head screws.
 Rim Device: Install chassis/head cover.
 SVR Device: Skip to step 4
RH/RHR
CONTROL
BOARD
ASSEMBLY
MOTOR
WIRE
MOTOR
WIRE
SOCKET
WIRE SLOT
1. PREPARE TRIM FOR
INSTALLATION
 Rotate lever to proper orientation for door, install
square drive spindle into back of trim.
3. RIM DEVICE - INSTALL
CONTROL BOARD
 Install control board assembly – feed wire
through slot under circuit board.
 Secure assembly with (4) included wood/
metal screws.
 Make wire connection after control board
is installed. Push extra wire into door
cavity.
Phone: 866-874-3662 | www.pdqlocks.com
88339 Rev0 – 04/21/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6EWS STS and is the answer not in the manual?

Questions and answers

Related Manuals for PDQ 6EWS STS

Summary of Contents for PDQ 6EWS STS

  • Page 1 6EWS STS - EXIT DEVICE TRIM INSTALLATION INSTRUCTION Phone: 866-874-3662 | www.pdqlocks.com 1. PREPARE TRIM FOR INSTALLATION  Rotate lever to proper orientation for door, install RH/RHR LH/LHR square drive spindle into back of trim. 2. INSTALL TRIM AND EXIT DEVICE ...
  • Page 2 6EWS STS – EXIT DEVICE TRIM TOP ROD 4. SVR DEVICE - INSTALL SPACER SPACER & CONTROL BOARD BLOCK CONTROL BOARD ASSEMBLY  Install rod spacer block with (2) included wood/metal screws – feed wires through slot in block.  Install top rod before control board.
