PDQ 7101 Instruction Sheet

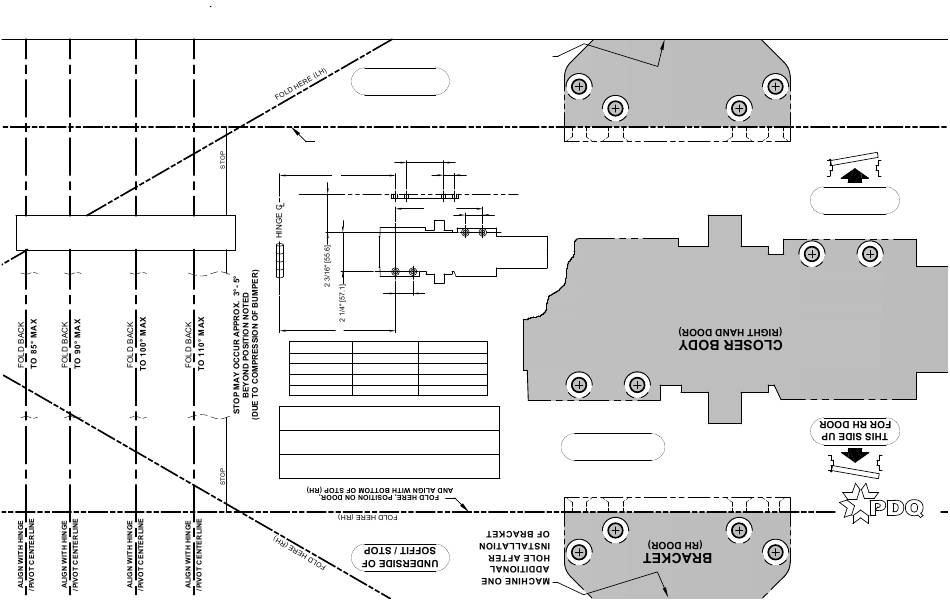

7101 DOOR CLOSER INSTRUCTION SHEET
PARALLEL ARM INSTALLATION WITH STOP - PUSH SIDE - DS (NHO) & DSHO (HO) - 110° MAX
FOLD AT HINGE/PIVOT CENTERLINE
FOR THE REQUIRED
STOP/HOLD OPEN ANGLE
UNDERSIDE OF
SOFFIT / STOP
FOLD HERE, POSITION ON DOOR,
AND ALIGN WITH BOTTOM OF STOP (LH)
2 1/8" [54.0]
B
5" [127.0]
1" [25.4]
A
OPENING DIM A DIM B
TO 85° 9-1/2" [241.3] 9-1/2" [241.3]
TO 90° 8-3/4" [222.3] 8-3/4" [222.3]
TO 100° 7-5/8" [193.7] 7-5/8" [193.7]
TO 110° 6-5/8" [168.3] 6-5/8" [168.3]
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
MACHINE ONE
ADDITIONAL
HOLE AFTER
INSTALLATION
OF BRACKET
5/8" [15.9]
BOTTOM OF STOP
1" [25.4]
PUSH SIDE FACE
OF DOOR
INSTRUCTION: 719354
REV. 2
BRACKET
(LH DOOR)
FOR LH DOOR
CLOSER BODY
(LEFT HAND DOOR)
09-06-19
FOLD HERE (LH)
THIS SIDE UP
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
