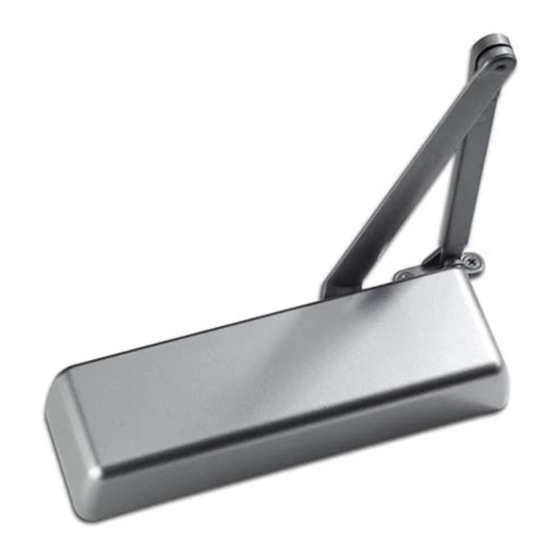

Door closer

Advertisement

7101 DOOR CLOSER INSTRUCTION SHEET
PARALLEL ARM INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS
B
A
OPENING
TO 90°
TO 120°
TO 180°
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
MACHINE ONE
ADDITIONAL HOLE AFTER
INSTALLATION OF BRACKET
FOLD HERE, POSITION ON DOOR
AND ALIGN WITH BOTTOM OF STOP (LH)
2 1/8" [54.0]
5/8" [15.9]
BOTTOM OF STOP
1" [25.4]
5" [127.0]
DIM A
DIM B
9-1/2" [241.3]
9-13/16" [249.2]
8" [203.2]
8-5/16" [211.1]
6-1/2" [165.1]
6-3/16" [157.2]
4 HOLES
BRACKET
(LH DOOR)
CLOSER BODY
(LEFT HAND DOOR)
INSTRUCTION: 719353
REV. 3
DRILL
UNDERSIDE OF
SOFFIT / STOP
FOLD HERE (LH)
THIS SIDE UP
FOR LH DOOR
PUSH SIDE FACE
OF DOOR
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
09-06-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOOR CLOSER and is the answer not in the manual?

Questions and answers

Summary of Contents for PDQ DOOR CLOSER

  • Page 1 INSTRUCTION: 719353 7101 DOOR CLOSER INSTRUCTION SHEET REV. 3 09-06-19 PARALLEL ARM INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS MACHINE ONE DRILL ADDITIONAL HOLE AFTER 4 HOLES BRACKET INSTALLATION OF BRACKET UNDERSIDE OF (LH DOOR) SOFFIT / STOP...
  • Page 2 INSTRUCTION: 719353 7101 DOOR CLOSER INSTRUCTION SHEET REV. 3 09-06-19 PARALLEL ARM INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS SPACER INSTALL CLOSER AND ARM: CONTROL ADJUSTMENTS: BLOCK 1. Confirm this sheet is correct for your product and application.
