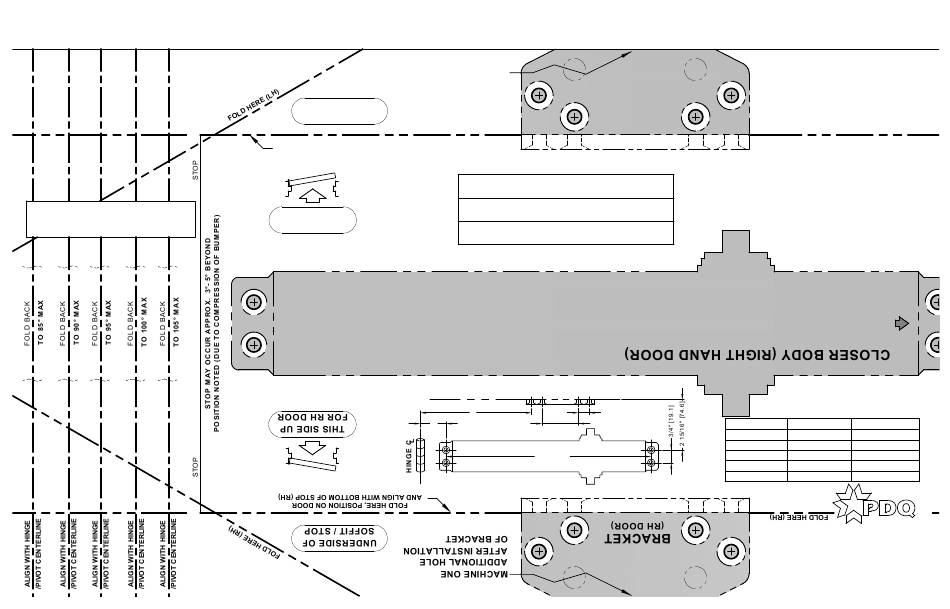

5300/5500 DOOR CLOSER INSTRUCTION SHEET
PARALLEL ARM INSTALLATION - PUSH SIDE - DS (NHO) AND DSHO (HO) APPLICATIONS - 105° MAX
FOLD AT HINGE/PIVOT CENTER
-LINE THAT MATCHES REQUIRED
STOP/HOLD OPEN ANGLE .
MACHINE ONE
ADDITIONAL HOLE
AFTER INSTALLATION
UNDERSIDE OF
OF BRACKET
SOFFIT / STOP
FOLD HERE, POSITION ON DOOR
AND ALIGN WITH BOTTOM OF STOP (LH)
THIS SIDE UP
FOR LH DOOR
BOTTOM OF STOP
A
BRACKET
(LH DOOR)
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
CLOSER BODY (LEFT HAND DOOR)
5/8" [15.9]
B
2 1/8" [54.0]
12" [304.8]
INSTRUCTION: 539354
REV. 4
09-05-19
FOLD HERE (LH)
SWEEP/ LATCH VALVES
THIS END OF BODY
OPENING
DIM A
DIM B
TO 85°
3-7/8"[98.4]
8-7/8"[225.4]
TO 90°
3-1/4"[82.6]
8-1/4"[209.6]
TO 95°
2-11/16"[68.3]
7-11/16"[195.3]
2-1/16"[52.4]
7-1/16"[179.4]
TO 100°
TO 105°
1-1/2"[38.1]
6-1/2"[165.1]
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PDQ 5300
Summary of Contents for PDQ 5300
- Page 1 5300/5500 DOOR CLOSER INSTRUCTION SHEET INSTRUCTION: 539354 REV. 4 09-05-19 PARALLEL ARM INSTALLATION - PUSH SIDE - DS (NHO) AND DSHO (HO) APPLICATIONS - 105° MAX MACHINE ONE ADDITIONAL HOLE BRACKET AFTER INSTALLATION (LH DOOR) UNDERSIDE OF OF BRACKET SOFFIT / STOP...
- Page 2 Clockwise (CW) turns increase spring power (+). Counter-clockwise (CCW) turns decrease spring power (-). 2. A 1/4 rotation of "T" engages or disengages hold open. 5300/5500 Series closers can be adjusted to meet 3. Door can also be HOLD manually pulled ADA Barrier Free (BF) applications.
