PDQ 5300 Instruction

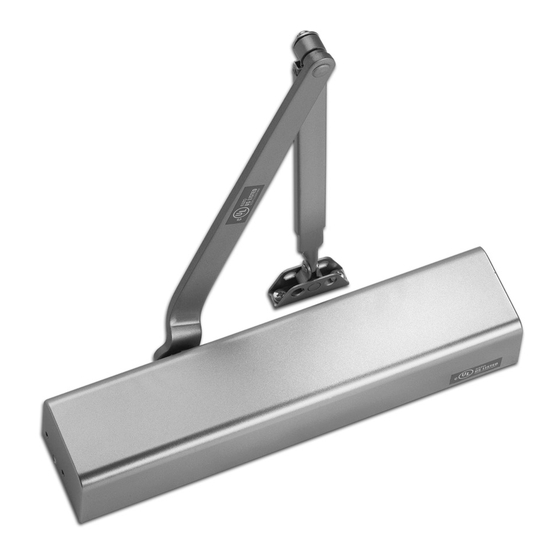

5300/5500 DOOR CLOSER MODELS

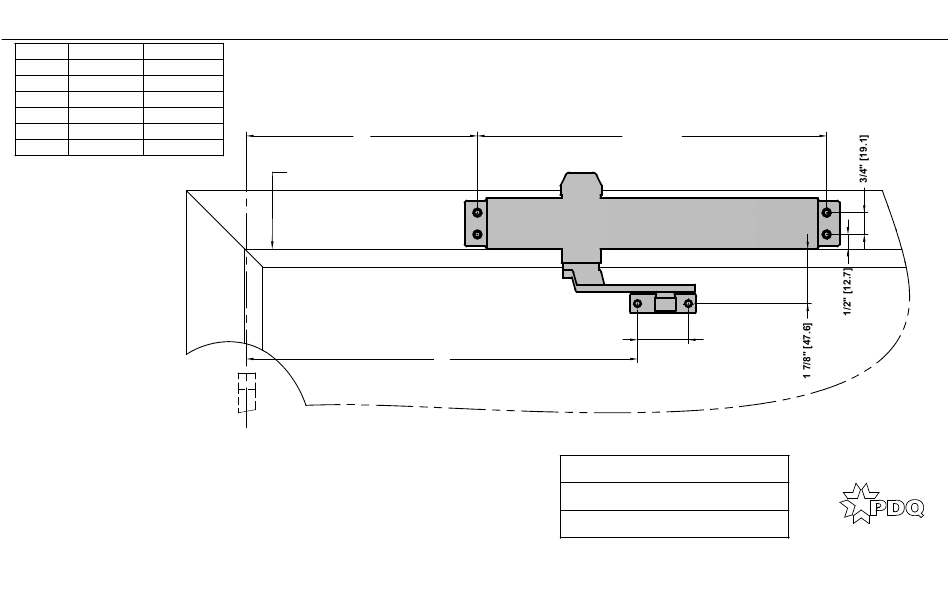

TOP JAMB INSTALLATION - PUSH SIDE - PIVOT STOP (PS) ARM APPLICATIONS
Opening Dim. A Dim. B
85° 10-3/8" [263.5] 15-7/8" [403.2]
90° 9-3/4" [247.7] 15-1/4" [387.4]
95° 9-3/16" [233.4] 14-11/16" [373.1]
100° 8-11/16" [220.7] 14-3/16" [360.4]
105° 8-5/16" [211.1] 13-13/16" [350.8]
110° 7-15/16" [201.6] 13-7/16" [341.3]
NOTES:
1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. FOR DOORS WITH REVEAL OF 4 INCHES. CONSULT FACTORY FOR OTHER REVEAL DEPTHS.
4. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER : 2-11/16".
5. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
6. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
7. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNT IS SPECIFIED.
A
BOTTOM OF FRAME FACE
C L
HINGE
OR
PIVOT
B
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
INSTRUCTION: 539356
REV.0
12" [304.8]
1 3/4" [44.5]
10-01-19
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
