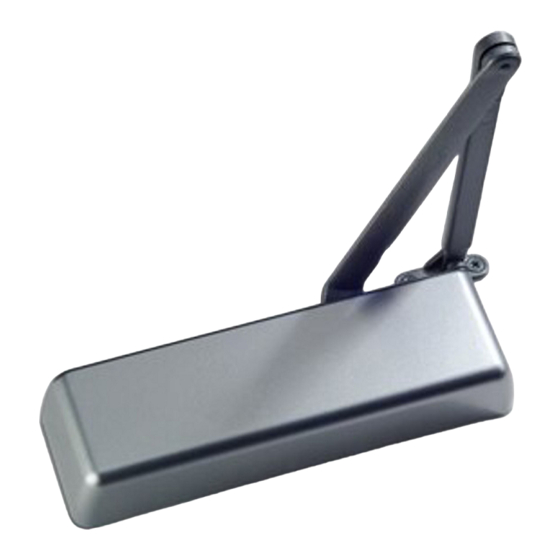

7101 DOOR CLOSER INSTRUCTION SHEET

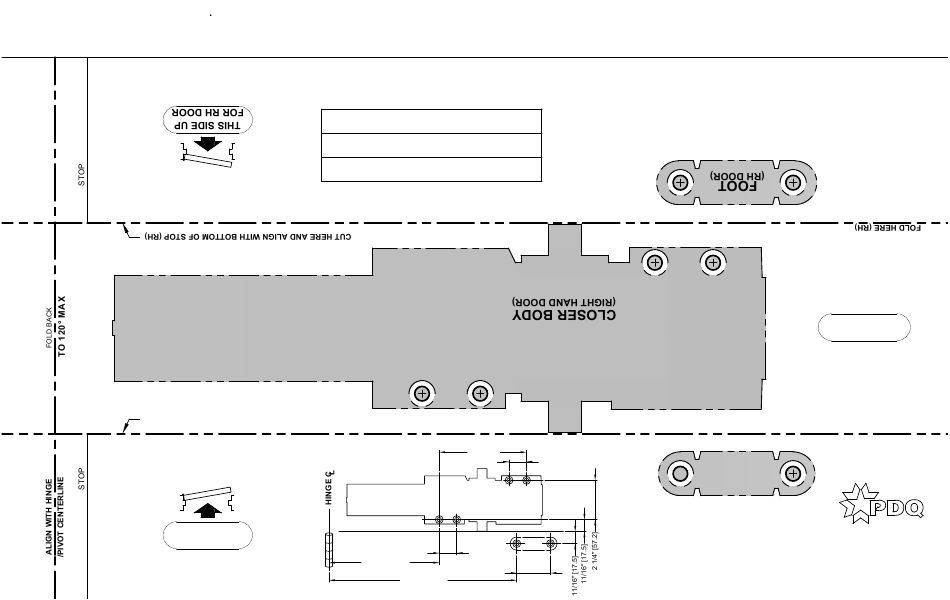

TOP JAMB INSTALLATION - PUSH SIDE (FLUSH HEADER OR SINGLE RABBET FRAME)
NON-HOLD OPEN AND HOLD OPEN APPLICATIONS - 120° MAX
CUT HERE AND ALIGN WITH BOTTOM OF STOP (LH)
THIS SIDE UP
FOR LH DOOR
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
5" [127.0]
1" [25.4]
6 5/16" [160.4]
1 15/16" [49.2]
10 3/4" [273.1]
CLOSER BODY
(LEFT HAND DOOR)
1" [25.4]
INSTRUCTION: 719352
REV. 3
09-06-19
FACE OF
FRAME-STOP
FOLD HERE (LH)
FOOT
(LH DOOR)
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
