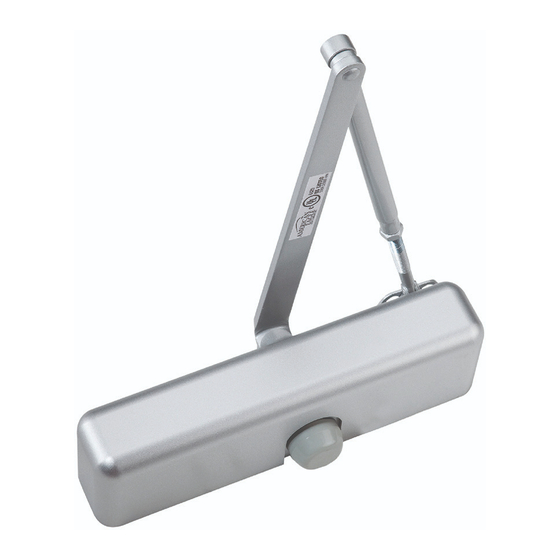

3100/3101 DOOR CLOSER INSTRUCTION SHEET
PARALLEL ARM INSTALLATION - PUSH SIDE - DS (NHO) AND DSHO (HO) APPLICATIONS - 110° MAX
FOLD AT HINGE/PIVOT CENTERLINE
FOR THE REQUIRED STOP/HOLD
OPEN ANGLE .
MACHINE ONE
ADDITIONAL HOLE
AFTER INSTALLATION
OF BRACKET
FOLD HERE, POSITION ON DOOR,
AND ALIGN WITH BOTTOM OF STOP (LH)
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
THIS SIDE UP
FOR LH DOOR
PUSH SIDE FACE
OF DOOR
B
A
BRACKET
(LH DOOR)
BOTTOM OF STOP
5/8" [15.9]
2 1/8" [54.0]
9 1/16" [230.2]
INSTRUCTION: 319354
REV. 2
UNDERSIDE OF
SOFFIT / STOP
FOLD HERE (LH)
CLOSER BODY (LEFT HAND)
SWEEP/ LATCH VALVES
THIS END OF CLOSER BODY
OPENING DIM A DIM B
TO 85° 6-15/16" [176.2] 8-7/16" [214.3]
TO 90° 6-5/16" [160.3] 7-13/16" [198.4]
TO 95° 5-3/4" [146] 7-1/4" [184.2]
TO 100° 5-1/8" [130.2] 6-5/8" [168.3]
TO 105° 4-9/16" [115.9] 6-1/16" [154]
TO 110° 3-15/16" [100] 5-7/16" [138.1]
