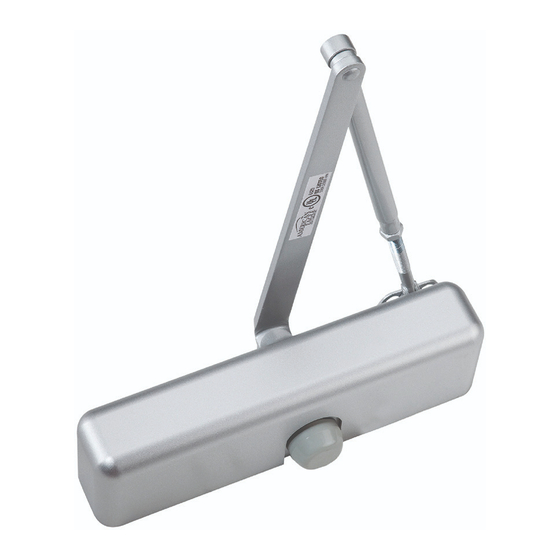

3100/3101 DOOR CLOSER INSTRUCTION SHEET

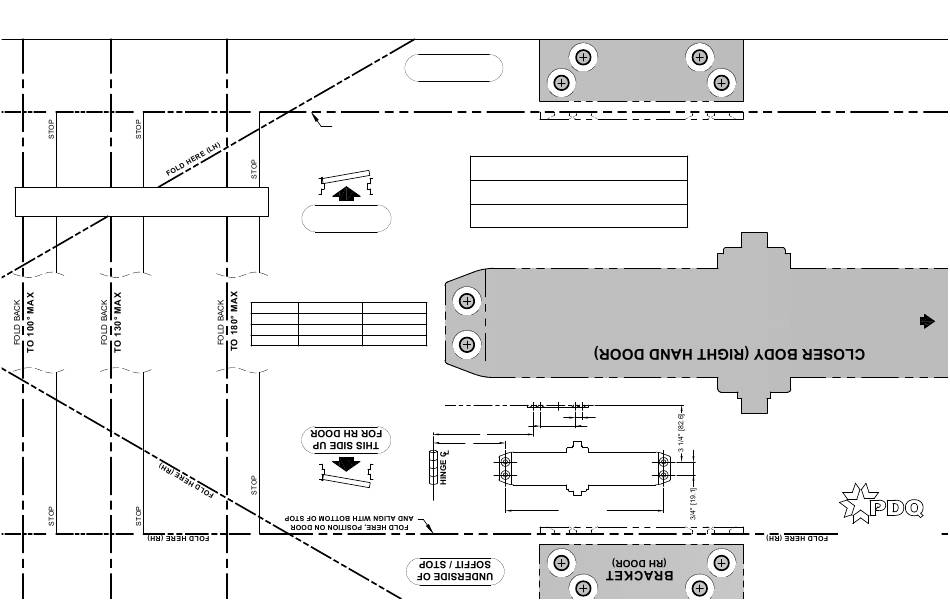

PARALLEL ARM INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS
FOLD HERE (LH)
FOLD AT HINGE CENTERLINE FOR THE
REQUIRED OPENING ANGLE.
UNDERSIDE OF
SOFFIT / STOP
FOLD HERE, POSITION ON DOOR
AND ALIGN WITH BOTTOM OF STOP
THIS SIDE UP
FOR LH DOOR
OPENING
DIM A
DIM B
TO 100°
7-5/8" [193.6]
9-1/4" [235]
TO 130°
6-1/8" [155.6]
7-3/4" [196.9]
TO 180°
4-1/8" [104.8]
5-3/4" [146]
BRACKET
(LH DOOR)
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4.0] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL
CLOSER BODY (LEFT HAND DOOR)
BOTTOM OF STOP
3/8" [9.5]
2" [50.8]
B
A
9 1/16" [230.2]
INSTRUCTION: 319353
REV. 2
09-05-19
FOLD HERE (LH)
SWEEP/ LATCH VALVES
THIS END OF CLOSER BODY
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
