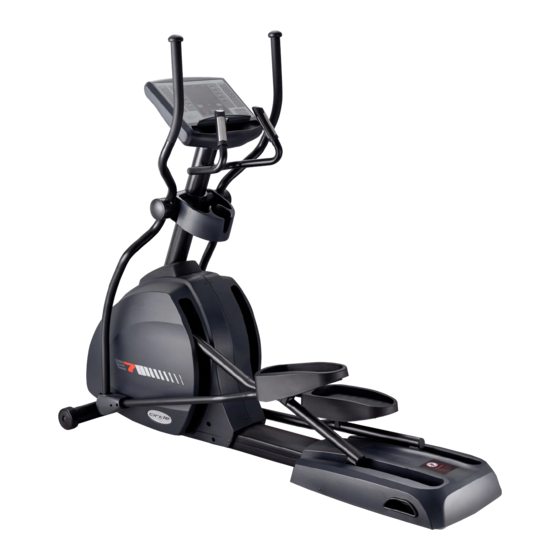

CIRCLE FITNESS E7 Service Manual
Hide thumbs
Also See for E7:
- Owner's manual (44 pages) ,
- Service manual (20 pages) ,
- Owner's manual (28 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CIRCLE FITNESS E7
Summary of Contents for CIRCLE FITNESS E7
-
Page 2: Table Of Contents

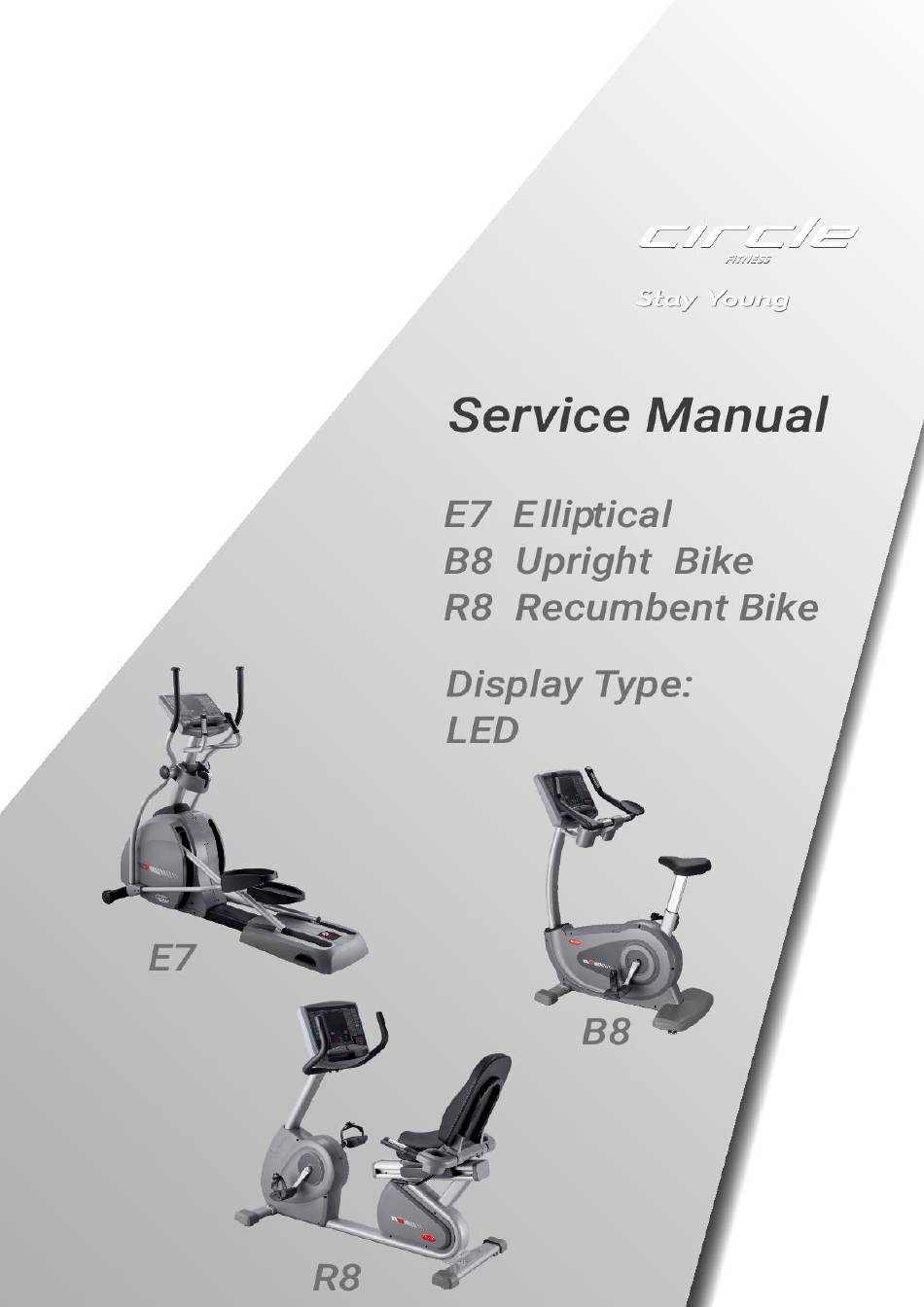

Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 TABLE OF CONTENTS PREFACE ............................3 1. Information For Components & System ..................4 1.1 System wiring diagram ........................4 1.2 Console PCB ............................. 5 2. -
Page 3: Preface
® of the appliance. Should the reader have any questions or concerns which have not been satisfactorily addressed, ® please call, send an e-mail message, or write to the CIRCLE FITNESS Technical Support Department for assistance. Tel: +886-4-2359-1000#259 Fax: +886-4-3505-5801 Email: chris.chang@pandfbrother.com... -
Page 4: Information For Components & System
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 1. Information For Components & System 1.1 System wiring diagram... -
Page 5: Console Pcb
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 1.2 Console PCB 1.2.1 Generator controller communication wire (J8) Definition Definition Reserved Reserved RS485+ Reserved RS485- 1.2.2 Heart Rate receiver (Jk8) Definition... - Page 6 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 1.2.5 Membrane Key (Keyboard R) Right (8P) 1(S6) 2(S7) 3(S8) 4(S9) 5(D6) RESET/CLEAR 6(D7) LEVEL DOWN 7(D8) LEVEL UP 8(D9) QUICK START...
- Page 7 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 1.3 Generator Controller CN1: External battery charging adapter port Definition Definition Definition EXT 12V None J2: Console wire port (CONNECTION) Definition Definition...
-
Page 8: Error Signal Check And Solutions
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 2. Error Signal Check and Solutions Item Error Message Descriptions CAUSE: Communication timeout. This error message pops up if console and generator lose communication for over 90 seconds. - Page 9 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 Item Error Message Descriptions CAUSE: The generator output voltage is overloaded. SOLUTION: MV VOLT OVERLOAD - Stop peddling and wait for the power to shut down.
-
Page 10: Other Information
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 3. Other Information 3.1 Console no power, no any display Dismount the console. Disconnect the console wire. Start paddling and do not stop. -
Page 11: Engineering Mode
Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 4. Engineering Mode 4.1 ENGINEERING MODE 1: Settings While in idle mode, press and hold the CLEAR/RESET button then press the LEVEL UP button for 3 seconds to enter the setting mode. - Page 12 Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 4.2 ENGINEERING MODE 2: Test Mode Press and hold the CLEAR/RESET button then press GO button for 3 seconds to enter the Engineering Mode 2 while in idle mode.
-
Page 13: Maintenance
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 5. MAINTENANCE 5.1 Preventive Maintenance Tips The Safety of the Elliptical/Upright Bike/ Recumbent Bike can be maintained only if the Elliptical/Upright Bike/ Recumbent Bike is examined regularly for damage or wear. -
Page 14: Appendix
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 6. Appendix 6.1 Handle assembly SOP Parts Overview for one handle: Ref. Part No. Description F300341-000 Handle plastic upper cover F300281-000 Handle plastic lower cover... - Page 15 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 Step 1: Put handle membrane button connector into the handle cap. Handle Membrane Button Connector Handle Cap Step 2: Tear away sticker and settle membrane button on the handle cap.
- Page 16 Description: Elliptical/Upright Bike/ Recumbent Bike Page: of 16 Model: E7/B8/R8 Display Type: Release Date: 2017/08/31 Step 4: insert and glue (Loctite 410 is recommended) the cap stand into the cap. The cap stand is to increase the grip onto the handle.
