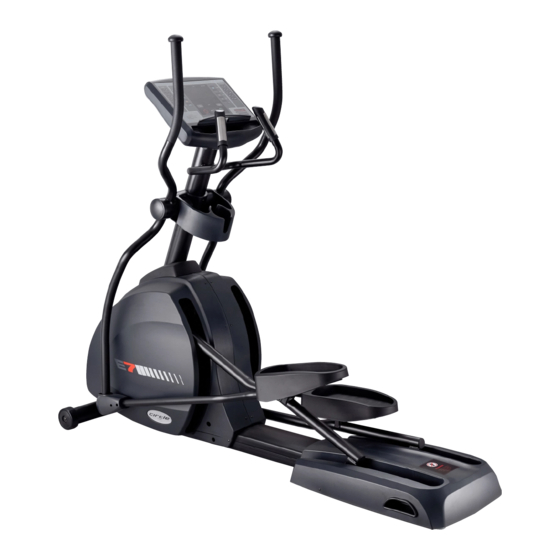

CIRCLE FITNESS E7 Service Manual
Hide thumbs
Also See for E7:
- Owner's manual (44 pages) ,
- Service manual (16 pages) ,
- Owner's manual (27 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for CIRCLE FITNESS E7
Summary of Contents for CIRCLE FITNESS E7
-
Page 2: Table Of Contents

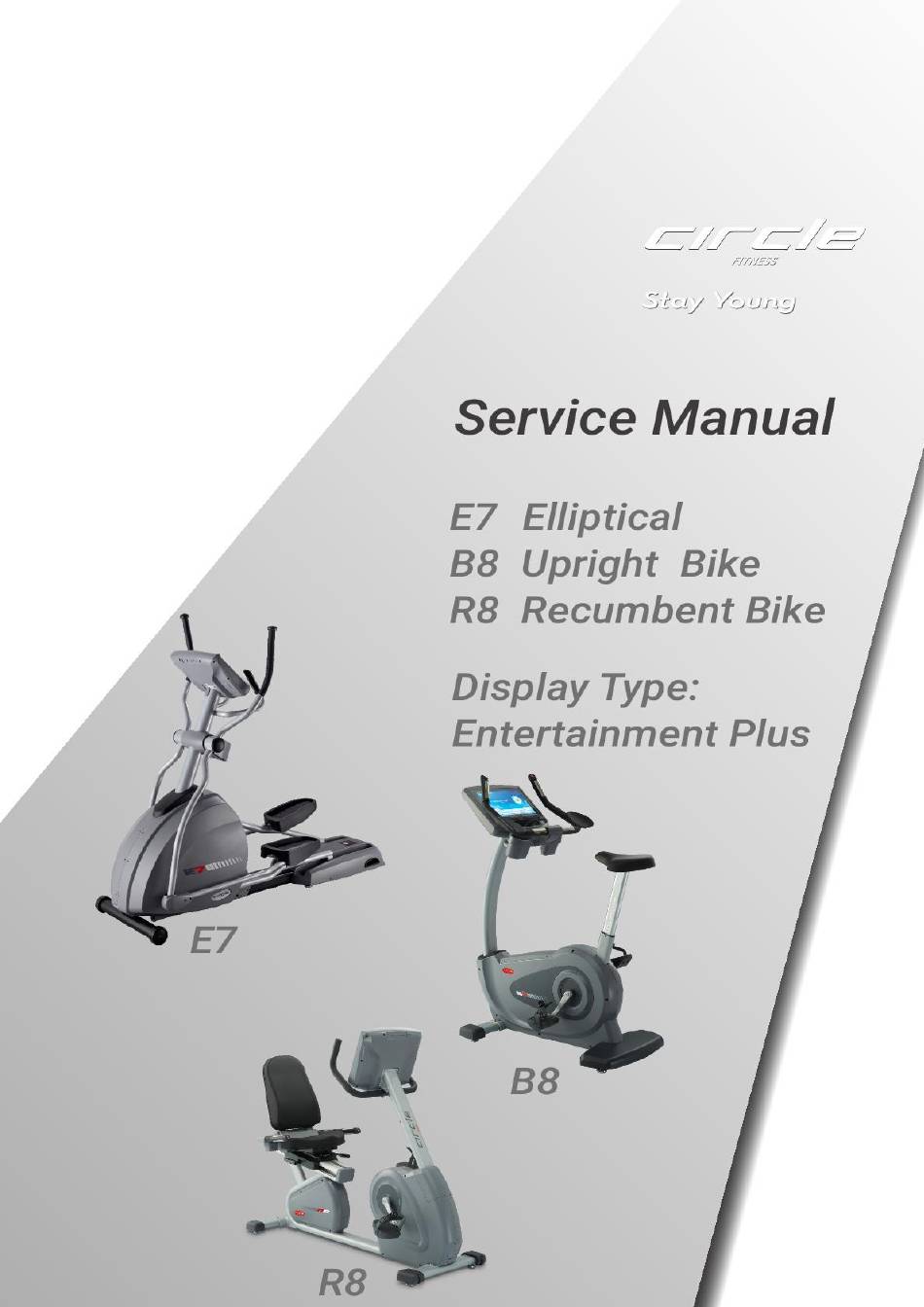

Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 2 of 20 Table of Contents 1. Engineering Mode:How to entry ---------------- Page 2 1.1. Wi-Fi Settings ---------------- Page 2 1.2. Ethernet:Reserved ---------------- Page 2 1.3. TV Settings-CVBS 1.3.1. -
Page 3: Wi-Fi Settings
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 3 of 20 1. Engineering Mode: Press center of logo for 5 seconds to get in. 1.1. Wi-Fi settings: ON/OFF Wi-Fi Re-searching Useable Wi-Fi Select a Wi-Fi and... -
Page 4: Tv Settings-Cvbs
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 4 of 20 1.3. TV settings: CVBS 1.3.1. Scan Channel-Europe Tuner(Pal / DVB-T) Press Menu. Press Ch↑ or Ch↓ select Auto Tuning then press OK. Press Ch↑ or Ch↓or Vol+ or... -
Page 5: System
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 5 of 20 1.4. Preference Unit select Set maximum level. Setting range: 16~25 1.5. System State: Total Distance: Total used distance. Total Time: Total used time. Ave. Speed: Average Speed. - Page 6 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 6 of 20 1.6. ErrorLog: Error signal records Error message Total used Total used Delete this Time while distance record error occur while error occur 1.7. Testing:control system output test and input information...
-
Page 7: Update
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 7 of 20 1.8. Update 1.8.1. Update App(Software update) Step 1: insert the USB device (shall be have new software inside. e.g.: Treadmill–20150126170001 - signed.apk) to external USB port of machine. -
Page 8: Update Bookmarks(Update Website Link)
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 8 of 20 1.8.2. Update Bookmarks(update internet website icon and address) Step 1:To create a document, name it to『bookmark』 Step 2: Put website icon to bookmark document, the icon specification shall be 152X152, PNG... - Page 9 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 9 of 20 Step 3: Create a new note or WordPad file. Typing the website information according to the rules as below Website name Website address Icon file...
- Page 10 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 10 of 20 Step 4: save the link information file to a UTF-8 format and change file name to bookmark, change vice file name to Jason then put it to bookmark document.
- Page 11 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 11 of 20 Step 5: Put bookmark document to USB device, insert the USB device to external USB Port of Machine. Step 6: Enter to engineering mode – Update page, press Update key of Bookmarks, will show update...
-
Page 12: Replace Logo(Replace Logo)
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 12 of 20 1.8.3. Replace Logo Step 1: Logo icon size shall be under 330X80 with png format, change icon name to logo then put into USB device root content. Insert USB device to external USB port of machine. - Page 13 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 13 of 20 Step 2:There will be have 2 logos shown at engineering mode-Update page, one is current logo, another is new logo in USB device, press Update key that next to New Logo to replace the logo.
-
Page 14: About(Machine Information)
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 14 of 20 1.9. About(Machine information) Machine Type: Upright bike or Elliptical depend on what software you installed. Model type Console (PCB assembly) Serial Number Machine Serial Number: U for bike, R for recumbent and E for elliptical. -
Page 15: Firmware Update
2.1. Update Notices 2.1.1. Please confirm Firmware version in 【About】 page and reset power to check the welcome page is Android or CIRCLE FITNESS. 2.1.2. Firmware Update shall be use the right version to update, e.g.: If Firmware version is 12 01 2014, want to update to Feb 11 2015, shall be use update_141201_150211_native.zip (Android... - Page 16 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 16 of 20 2.2. How to update: copy update file update.zip to USB device, insert USB device to external USB port of machine, system will auto update and reboot.
-
Page 17: Trouble Shooting
Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 17 of 20 3. Trouble Shooting 3.1. Error Code: PAUSE Description: Console cannot read the rpm feedback signal due to no communication or no rpm feedback. Troubleshooting chart:... - Page 18 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 18 of 20 Check LED on EMS controller Flashing (3 times per second) Replace controller Flashing (once per second) Communications fail. The root cause is a faulty console...
- Page 19 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 19 of 20 3.2. Symptom: Console not switched on. Remove the console plastic cover and check if 12DC input exists on console PCB or not. Replace console PCB Check if 12DC output exists on EMS controller or not.
- Page 20 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E7/B8/R8, E Plus Page: 20 of 20 3.3. Symptom: No resistance when pedaling. Check LED on EMS controller Stays on Flashing (once per second) Flashing (3 times per second) Machine is running normally.
