Installation

5.4 Brake Installation

5.4.1 Flange-Mounted Brake without Hub

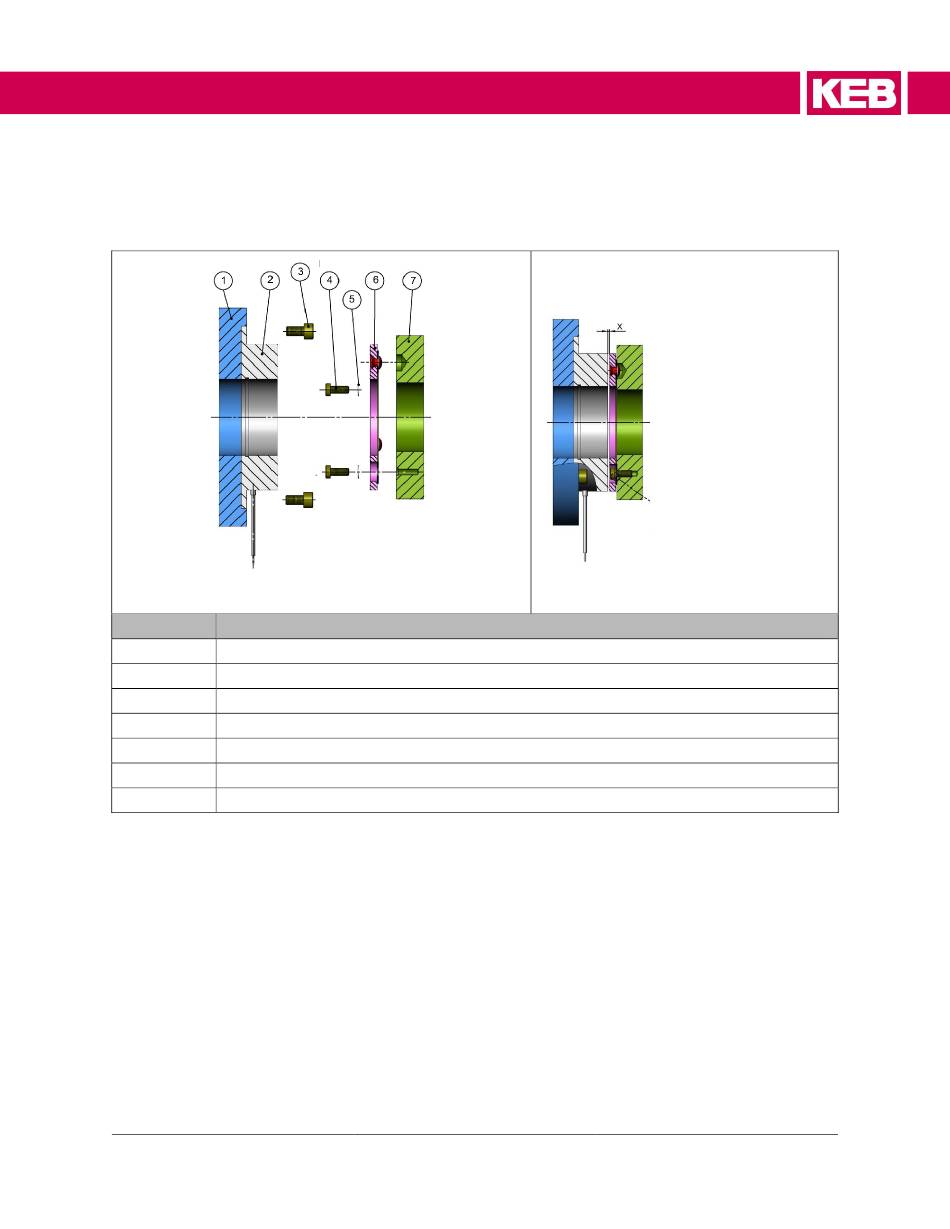

Figure 9 Installation Components

Number Description
1 Magnet-Side Mounting Surface
2 Magnet
3 Socket-Head Screws (ISO 4762)
4 Socket-Head Screws (ISO 6912)
5 Schnorr-Lock Washers
6 Armature
7 Load-Side Mounting Surface (customer provided)
1. Align the magnet (2) to the mounting surface (1) such that the magnet is centered over
the shaft.
→
2. Fix the magnet (2) to the mounting surface (1) with socket-head screws (3).
3. Align the armature (6) to the mounting surface (7) such that the armature is centered
over the shaft.
4. Fix the armature (6) to the mounting surface (7) with socket-head screws (4) and
Schnorr-lock washers (5). Bolt heads must remain below armature surface.
5. Mount the load-side mounting surface (7) over the shaft and adjust until the gap
between magnet and armature reaches the correct width (denoted X).
→
6. Fasten the load-side mounting surface axially ensuring that the air gap remains the
proper width.
2021 KEB America, Inc.
©
See Brake Centering for details.
See section Adjusting the Air Gap for details on the correct air gap by
brake size.

Figure 10 Installed Brake
