Operation with an External Antenna Tuner

4.3.
At antenna SWR over 1.5, it is advisable you use an external tuner.
The ACOM 04AT Remote Automatic Antenna Tuner and Switch (see
Antenna Tuner and Switch
ACOM 1200S.

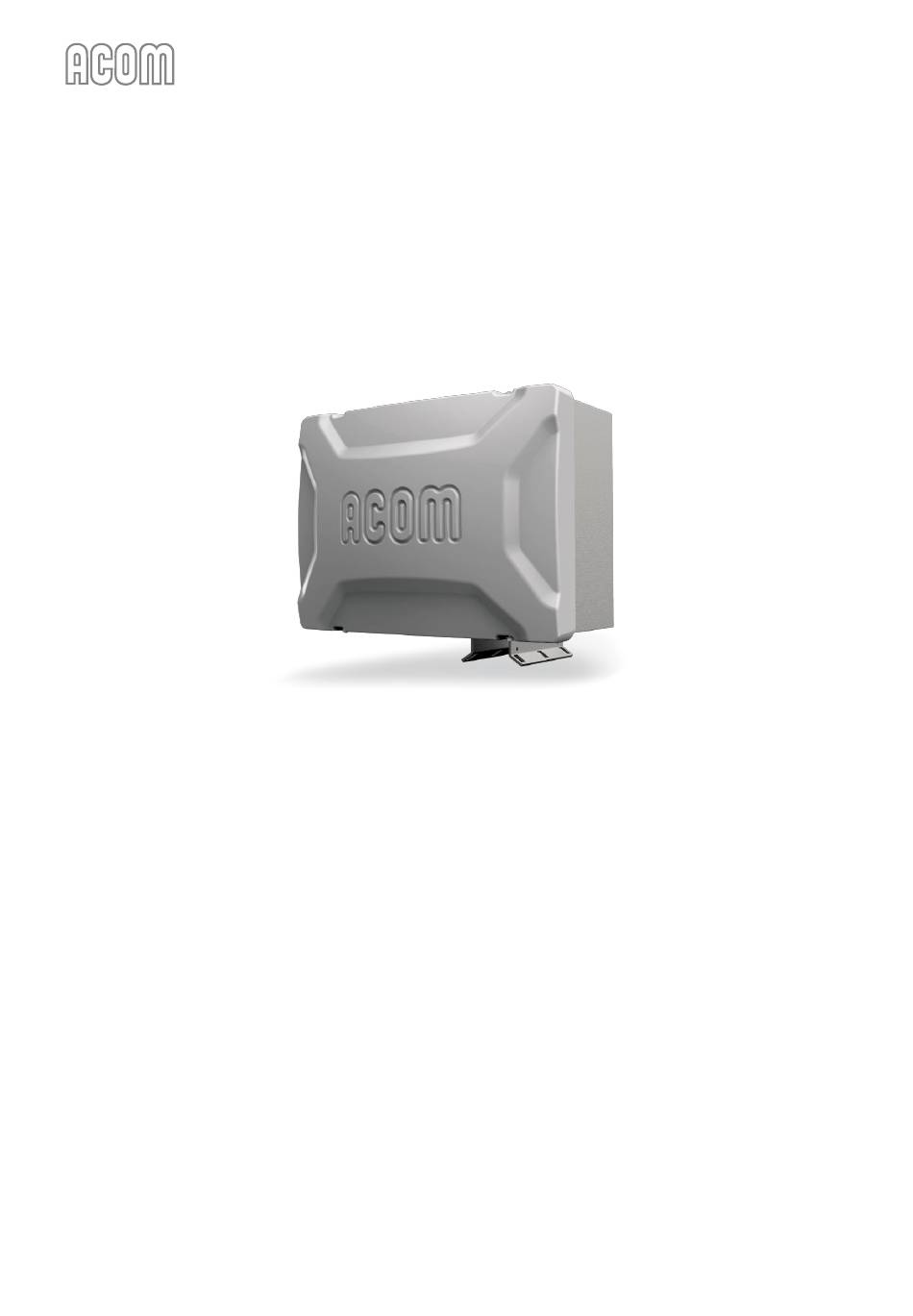

Figure 4-1 ACOM 04AT Remote Automatic Antenna Tuner and Switch

Figure 4-1 ACOM 04AT Remote Automatic Antenna Tuner and Switch
It tunes antennas having SWR up to 3 automatically, thus providing an optimum load for the amplifier within
5 seconds with improved harmonic suppression at that. The four-way antenna switch is controlled
automatically or from the amplifier front panel.
The ACOM 04AT can be installed both in the shack and in a remote location (even out in the open, close to
the antennas). It can be distanced up to 100 m (330 ft) from the amplifier, using a single coaxial cable.
The connection of ACOM 04AT will make accessible specific features on the amplifier display that provide a
transparent operation by following frequency and antenna selection changes in less than 50 ms.
