Finish by moving the pointer out of the editable fields by means of the
e) OPERATE ACCESS
When locked, the amplifier remains in STANDBY and cannot be switched to OPERATE unless unlocked in
the same menu. Passwords are not used - this is only a simple protection against possible child actions, or
involuntary switching to OPERATE mode. While locked, an attempt for entering OPERATE mode will result
in a message:
The other preference items are self-explaining.

Menu FAULTS LOG

5.5.
This function reads on the screen the information stored in the memory about the last 28 HARD FAULT
protection trips (see

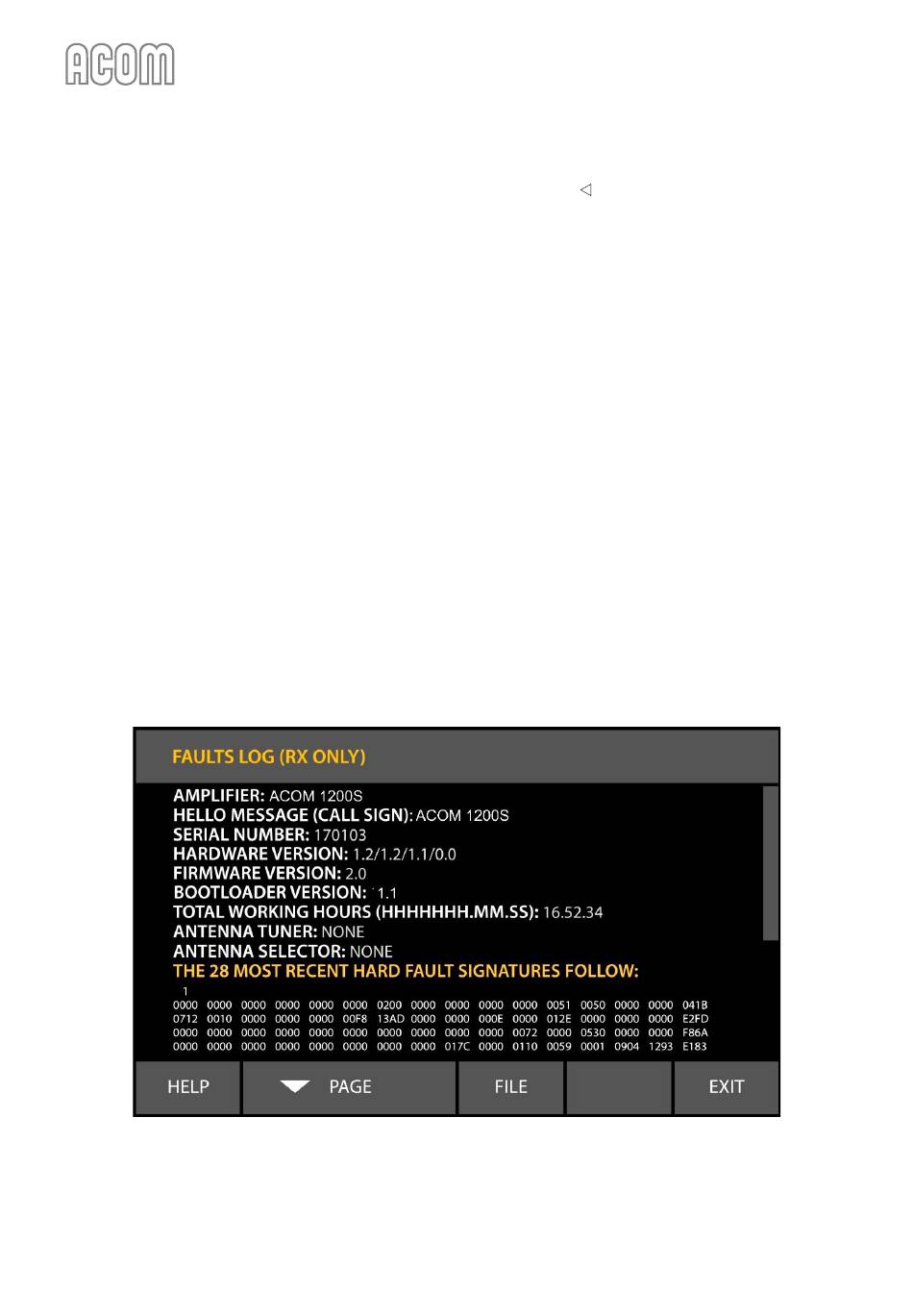

Figure 5-6 Menu FAULTS LOG

downloaded in a plain-text format file through the RS-232 port and a computer using a standard terminal
emulating program (TTY). The RS-232 protocol settings are: 9600, 8, N, 1,
Please, see Section
7.4 Using the Fault Codes (signatures) for Diagnostics
Page 42 of 60 | S e c t i o n MENUS - SETTINGS AND OPTIONS
User's Manual | ACOM 1200S | 1.8-54 MHz Linear Power Amplifier
"OPERATE MODE IS LOCKED"
). By pushing the FILE button, the information may be also
Figure 5-6 Menu FAULTS LOG
Figure 5-6 Menu FAULTS LOG
SELECT (left arrow) button.
.
August 2021
