Kimball Office Fundamental LF Series Assembly Instructions

Fundamental

General Setup

Tools Required

Flat Head Screwdriver
I
Hammer and Punch
I
#8-32 ³⁄₈" Hex Socket Nut Driver
I

General Information

• These instructions provide the basic information to do the
following in any Fundamental, LF Series:
remove and reinstall drawers, and gang units.
• Fundamental ADA File only: Screw-on pulls are packaged
inside drawer to prevent damage. Assemble using hardware
provided.
• One person can perform all operations although two may
be required to position larger units.

Installation

Removing Drawers

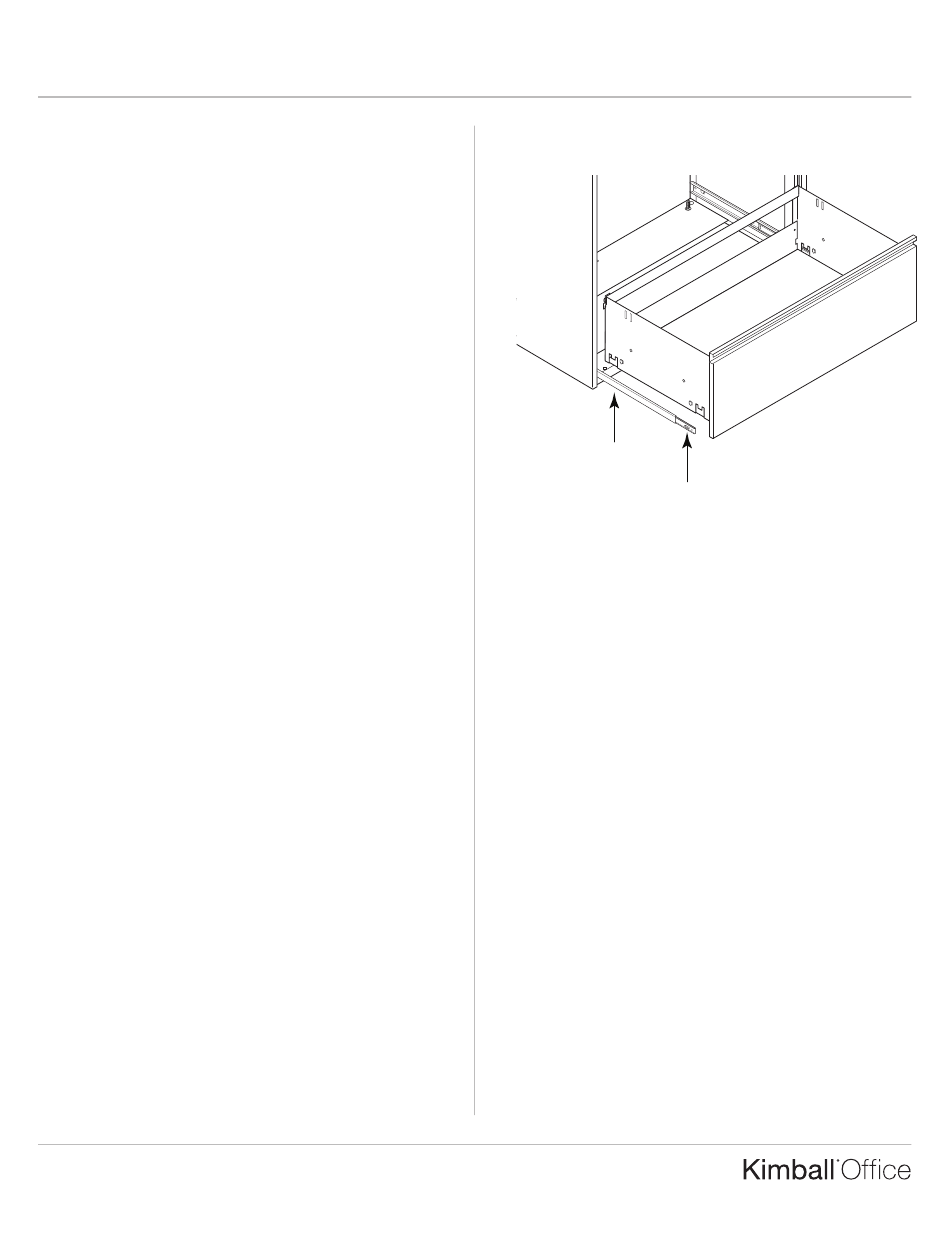

1. Fully extend drawer (Figure A).
2. While gripping and lifting near the top edge of the
drawer side, hand strike the drawer side just above the
extended slide to release the front locking tab (Figure A).
3. Repeat this procedure at the rear of the drawer side.
4. Support the released end of the drawer with one hand
placed beneath the drawer center.
5. Strike the opposite drawer side to release each of the
locking tabs.
6. Lift drawer from slides.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2242720 Revision B-10
® , LF Series ®
Phillips Head Screwdriver
I
Level
I
Figure A
Rear
Locking Tab
Assembly Instructions
Page 1 of 2
Front
Locking Tab
