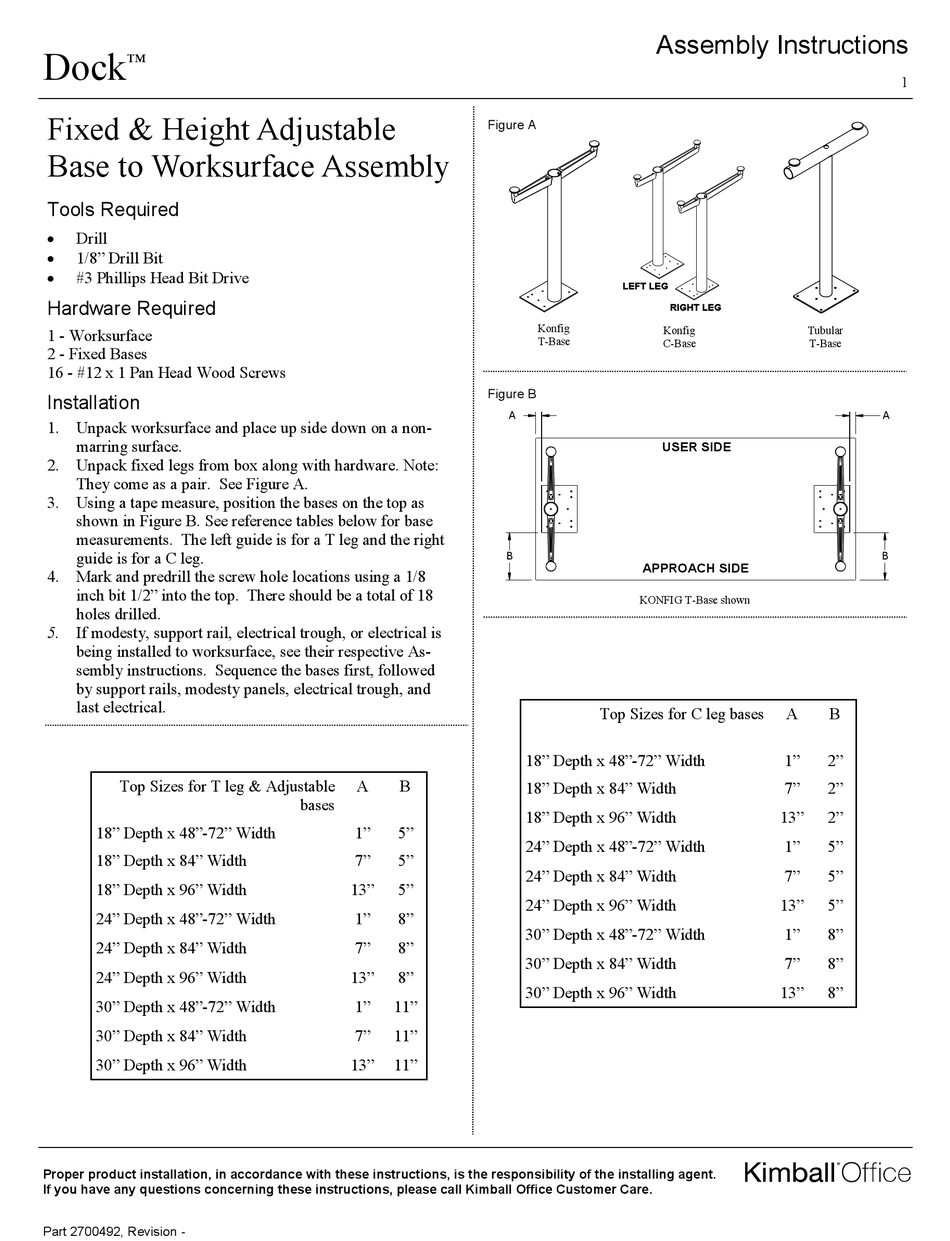

Kimball Office Dock Folding Base Assembly Instructions

Dock
™
Fixed & Height Adjustable
Base to Worksurface Assembly
Tools Required

Drill

1/8" Drill Bit

#3 Phillips Head Bit Drive
Hardware Required
1 - Worksurface
2 - Fixed Bases
16 - #12 x 1 Pan Head Wood Screws
Installation
1. Unpack worksurface and place up side down on a non-
marring surface.
2. Unpack fixed legs from box along with hardware. Note:
They come as a pair. See Figure A.
3. Using a tape measure, position the bases on the top as
shown in Figure B. See reference tables below for base
measurements. The left guide is for a T leg and the right
guide is for a C leg.
4. Mark and predrill the screw hole locations using a 1/8
inch bit 1/2" into the top. There should be a total of 18
holes drilled.
5. If modesty, support rail, electrical trough, or electrical is
being installed to worksurface, see their respective As-
sembly instructions. Sequence the bases first, followed
by support rails, modesty panels, electrical trough, and
last electrical.
Top Sizes for T leg & Adjustable
18" Depth x 48"-72" Width
18" Depth x 84" Width
18" Depth x 96" Width
24" Depth x 48"-72" Width
24" Depth x 84" Width
24" Depth x 96" Width
30" Depth x 48"-72" Width
30" Depth x 84" Width
30" Depth x 96" Width
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2700492, Revision -
A B
bases
1" 5"
7" 5"
13" 5"
1" 8"
7" 8"
13" 8"
1" 11"
7" 11"
13" 11"
Assembly Instructions
Figure A
LEFT LEG
Konfig
Konfig
T-Base
C-Base
Figure B
A
USER SIDE
B
APPROACH SIDE
KONFIG T-Base shown
Top Sizes for C leg bases
18" Depth x 48"-72" Width
18" Depth x 84" Width
18" Depth x 96" Width
24" Depth x 48"-72" Width
24" Depth x 84" Width
24" Depth x 96" Width
30" Depth x 48"-72" Width
30" Depth x 84" Width
30" Depth x 96" Width
RIGHT LEG
Tubular
T-Base
A B
1" 2"
7" 2"
13" 2"
1" 5"
7" 5"
13" 5"
1" 8"
7" 8"
13" 8"
1
A
B
